AD Dogbone® [UHF RFID tag and inlay]

Excellent global performance even on difficult-to-tag materials

Industry segments: Automotive, Events, Sports, Gaming, Industrial Applications, Logistics

Avery Dennison Smartrac Dogbone™ inlays and tags are designed for global supply chain, industrial, RTI and sports timing applications, and offer excellent performance in demanding environments and on different materials.

Dogbone inlays and tags have a good tolerance to the detuning effect of highly di-electric materials, providing effective global performance even on difficult-to-tag materials. They are available with different Ic's (see below).

The inlay is size-optimized for 100 mm / 4 inch wide converted labels, and is available in dry, wet and paper tag delivery formats.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, enhancing RFID usage for difficult-to-tag materials.

AD Pure™ Product Line

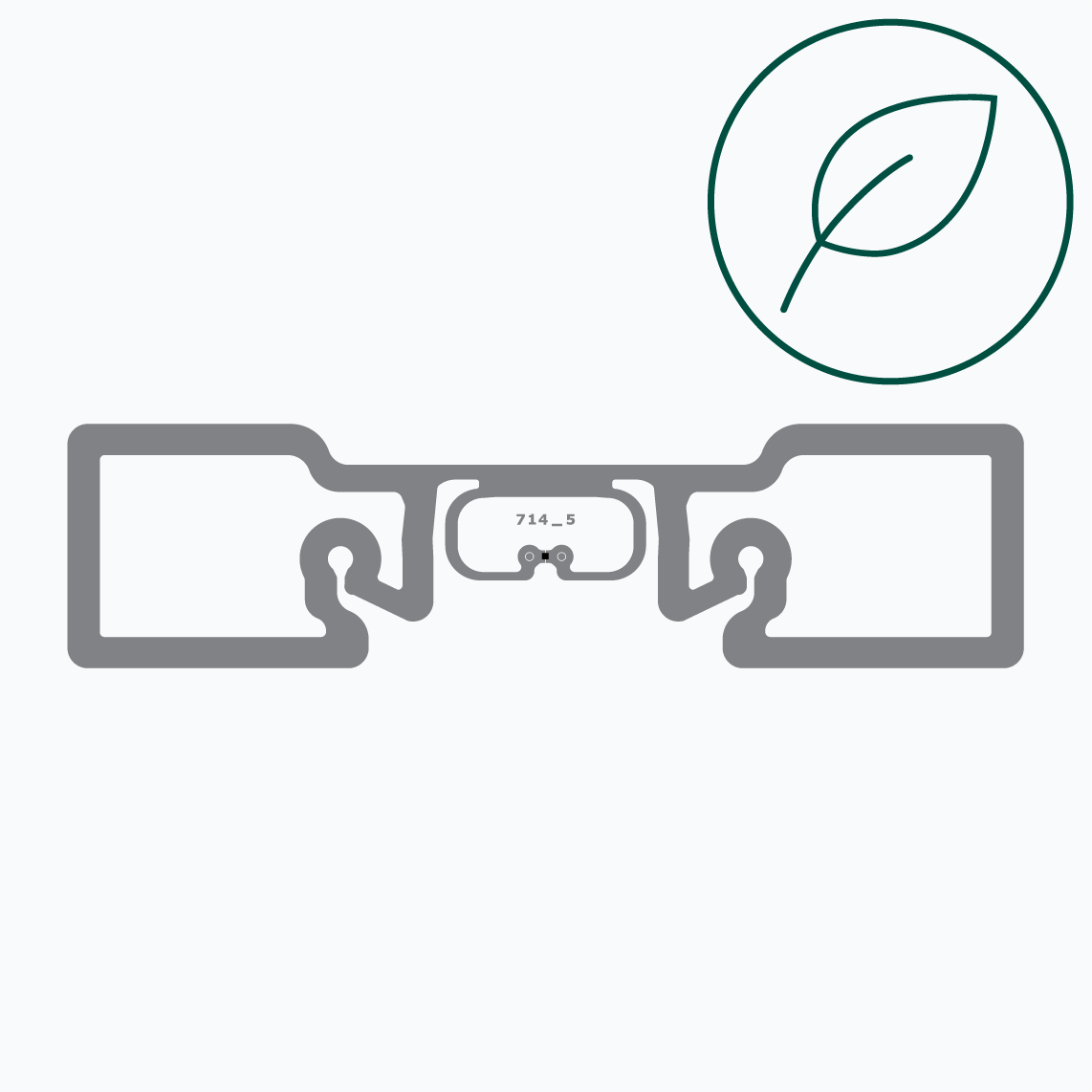

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in dry, wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

AD Dogbone 4D

Chip: Impinj Monza 4D
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
86 x 24 mm / 3.38 x 0.95 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3001873 / IL-602568
Wet+ inlay 3001874 / / IL-602569
Label / sticker 3001878 / IL-602573

Data sheet

AD Dogbone, UG2iL

Chip: NXP UCode G2iL
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
88 x 24 mm / 3.47 x 0.95 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Wet+ inlay 3002037 / IL-602611
Label / sticker 3002038 / IL-602612

Data sheet

AD Dogbone U8

Chip: NXP UCode 8
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3006908 / IL-603295
Wet+ inlay 3006910 / IL-603297
Label / sticker 3006909 / IL-603296

Data sheet

AD Dogbone M730

Chip: Impinj M730
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Dry inlay 3008223 / IL-604163
Wet inlay 3008445 / IL-604318
Label / sticker 3008054 / IL-604042

Data sheet

AD Dogbone M781

Chip: Impinj M781
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3008736 / IL-604554
Wet+ inlay 3008747 / IL-604561
Label / sticker 3008749 / IL-604563

Data sheet

AD Dogbone R6

Chip: Impinj Monza R6
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 96 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3004004 / IL-602812
Wet+ inlay 3004005 / IL-602813
Label / sticker 3004006 / IL-602814

Data sheet

AD Dogbone U7

Chip: NXP UCode 7
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Wet+ inlay 3003020 / IL-602772
Label / sticker 3003021 / IL-602773

Data sheet

AD Dogbone U9

Chip: NXP UCode 9
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 96 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3008478 / IL-604346
Wet+ inlay 3008480 / IL-604348
Label / sticker 3008479 / IL-604347

Data sheet

AD Dogbone M750

Chip: Impinj M750
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 96 bits
TID Memory: available
ARC specification: -
Product Code:
Dry inlay 3007480 / IL-603659
Wet inlay 3007969 / IL-603972
Label / sticker 3007482 / IL-603661

Data sheet

AD Dogbone R6-P

Chip: Impinj Monza R6-P
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 128 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3005071 / IL-602874
Wet+ inlay 3005072 / IL-602875
Label / sticker 3005073 / IL-602876

Data sheet

AD Dogbone U7XM

Chip: NXP UCode 7XM
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
94 x 24 mm / 3.70 x 0.90 in
Die Cut Dimensions:
97 x 27 mm / 3.82 x 1.06 in
EPC Memory: 448 bits
TID Memory: available
ARC specification: -
Product Code:
Dry+ inlay 3005086 / IL-602889
Wet+ inlay 3005085 / IL-602888
Label / sticker 3005087 / IL-602890
