AD Midas Flagtag®  [UHF RFID tag and inlay]

UHF RFID Inlay: Midas Flagtag®

Outperforming tag for metallic surfaces and everyday objects

Industry segments: Automotive, Aviation, Beauty & Personal Care, Industrial Applications, Logistics


Avery Dennison Smartrac’s Midas Flagtag® is designed for item-level tagging on diverse surfaces, especially metallic surfaces like foil packaging, and offers excellent performance in less demanding physical environments.

Midas Flagtag is a cost-efficient RFID (UHF) on-metal solution for  product or part authentication, supply chain & asset management, when compared to other foam-based inlays and hard tags designed for use in tougher environmental conditions.

Midas Flagtag has an innovative small form factor with a total size of 60 x 21 mm when used as a standard flat paper tag. Its special feature is that a flag can be created at the end of tag with a final paper tag size of 43 x 21 mm after folding, and with an exposed flag size of 17 x 21 mm. The folded part of the tag sticks out of the metal like a flag, and the attached antenna part uses the metal surface as part of the antenna structure to increase the performance of the tag. Read distances of over 10 meters can be achieved, depending on the geometry and size of the metal object. The tags are compatible with RFID printers for easy printing and encoding.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

Please find a comprehensive overview of all features in the data sheet.

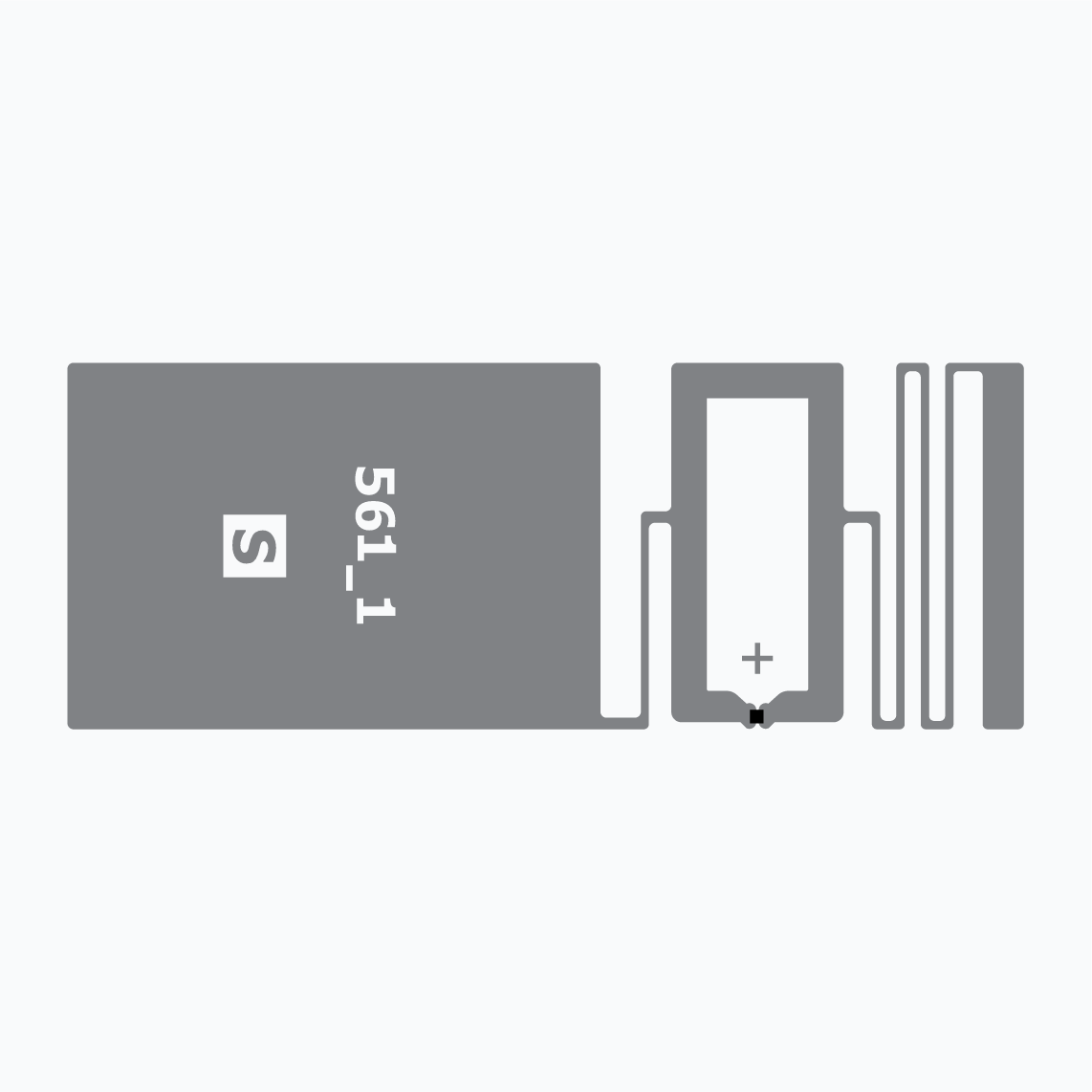

UHF RFID Inlay: Midas Flag Tag, Monza R6

Midas Flagtag, Monza R6

  • Chip: Impinj Monza R6
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    31.41 x 18 mm / 1.24 x 0.71 in
  • Die Cut Dimensions:
    60 x 21 mm / 2.36 x 0.83 in
  • EPC Memory: 96 bits
  • TID Memory: available
  • Product Code:
    Dry inlay 3005881 / IL-602976
    Label / sticker 3005582 / IL-602952

UHF RFID Inlay: Midas Flag Tag, UCODE 8

Midas Flagtag, UCode 8

  • Chip: NXP UCode 8
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    34.41 x 18 mm / 1.36 x 0.71 in
  • Die Cut Dimensions:
    62 x 21 mm / 2.44 x 0.83 in
  • EPC Memory: 128 bits
  • TID Memory: available
  • Product Code:
    Label / sticker 3006945 / IL-603327

UHF RFID Inlay: Midas Flag Tag, Impinj M750

Midas Flagtag, M780

  • Chip: Impinj M780
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    34.41 x 18 mm / 1.36 x 0.71 in
  • Die Cut Dimensions:
    43 x 21 mm / 1.7 x 0.83 in
  • EPC Memory: 496 bits
  • TID Memory: available
  • Product Code:
    Label / sticker 3009027 / IL-604767

UHF RFID Inlay: Midas Flag Tag, Monza R6-P

Midas Flagtag, Monza R6-P

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    31.41 x 18 mm / 1.24 x 0.71 in
  • Die Cut Dimensions:
    60 x 21 mm / 2.40 x 0.80 in
  • EPC Memory: 128 bits
  • TID Memory: available
  • Product Code:
    Label / sticker 3006845 / IL-603258
    Label / sticker 3007005 / IL-603367
    Label / sticker 3006799 / IL-603238

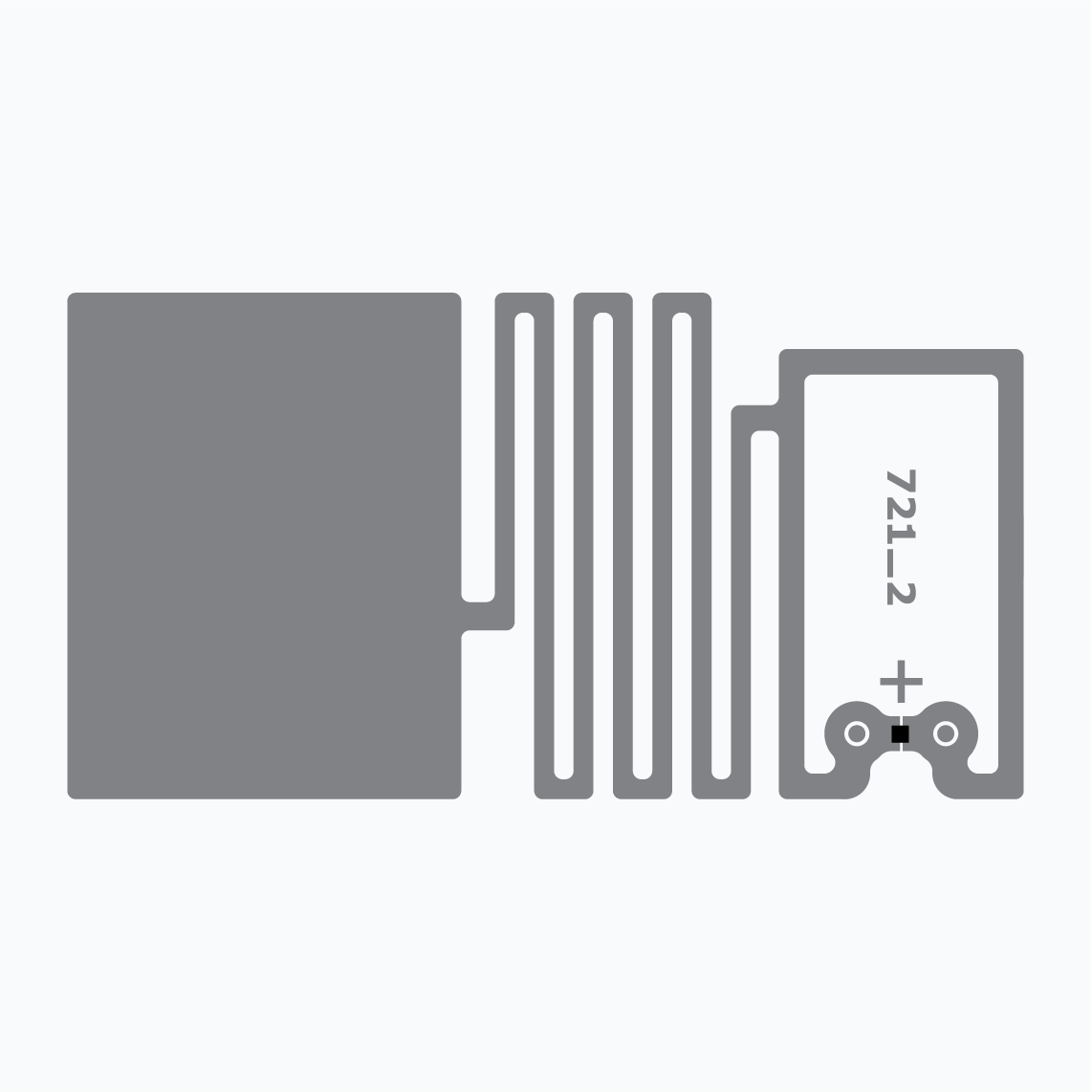

UHF RFID Inlay: Midas Flag Tag, UCODE 9XM

Midas Flagtag, UCode 9XM

  • Chip: NXP UCode 9XM
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    34.41 x 18 mm / 1.36 x 0.71 in
  • Die Cut Dimensions:
    43 x 21 mm / 1.69 x 0.83 in
  • EPC Memory: 256 bits
  • TID Memory: available
  • Product Code:
    Label / sticker IL-609589

UHF RFID Inlay: Midas Flag Tag, UCODE 7XM

Midas Flagtag, UCode 7XM

  • Chip: NXP UCode 7XM
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    47 x 18 mm / 1.85 x 0.71 in
  • Die Cut Dimensions:
    72 x 21 mm / 2.84 x 0.83 in
  • EPC Memory: 448 bits
  • TID Memory: available
  • Product Code:
    Label / sticker 3006991 / IL-603360
    Label / sticker 3007153 / IL-603460

UHF RFID Inlay: Midas Flag Tag, Impinj M750

Midas Flagtag, M750

  • Chip: Impinj M750
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    34.41 x 18 mm / 1.36 x 0.71 in
  • Die Cut Dimensions:
    43 x 21 mm / 1.7 x 0.83 in
  • EPC Memory: 96 bits
  • TID Memory: available
  • Product Code:
    Label / sticker 3008383 / IL-604271
    Label / sticker 3008274 / IL-604198
