AD Frog 3D™  [UHF RFID tag and inlay]

UHF RFID Inlay: Frog 3D™

High performance product for supply chain applications

Industry segments: Logistics


Avery Dennison Smartrac Frog 3D™ inlays and tags are designed for pallet and case level applications offering high performance in supply chain management applications. Frog 3D products have a small, cost-efficient True3D form factor with complete orientation insensitivity providing consistent performance even on challenging materials. High performance Frog 3D inlays deliver excellent read range and are compatible with the Impinj Monza 4 IC family.

Frog 3D tags and inlays are produced using leading-edge inlay assembly technologies. Monitoring every step in the production process, from the antenna to the final assembly of the inlay, guarantees optimal quality products.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, enhancing RFID usage for difficult-to-tag materials.

Please find a comprehensive overview of all features in the data sheet.

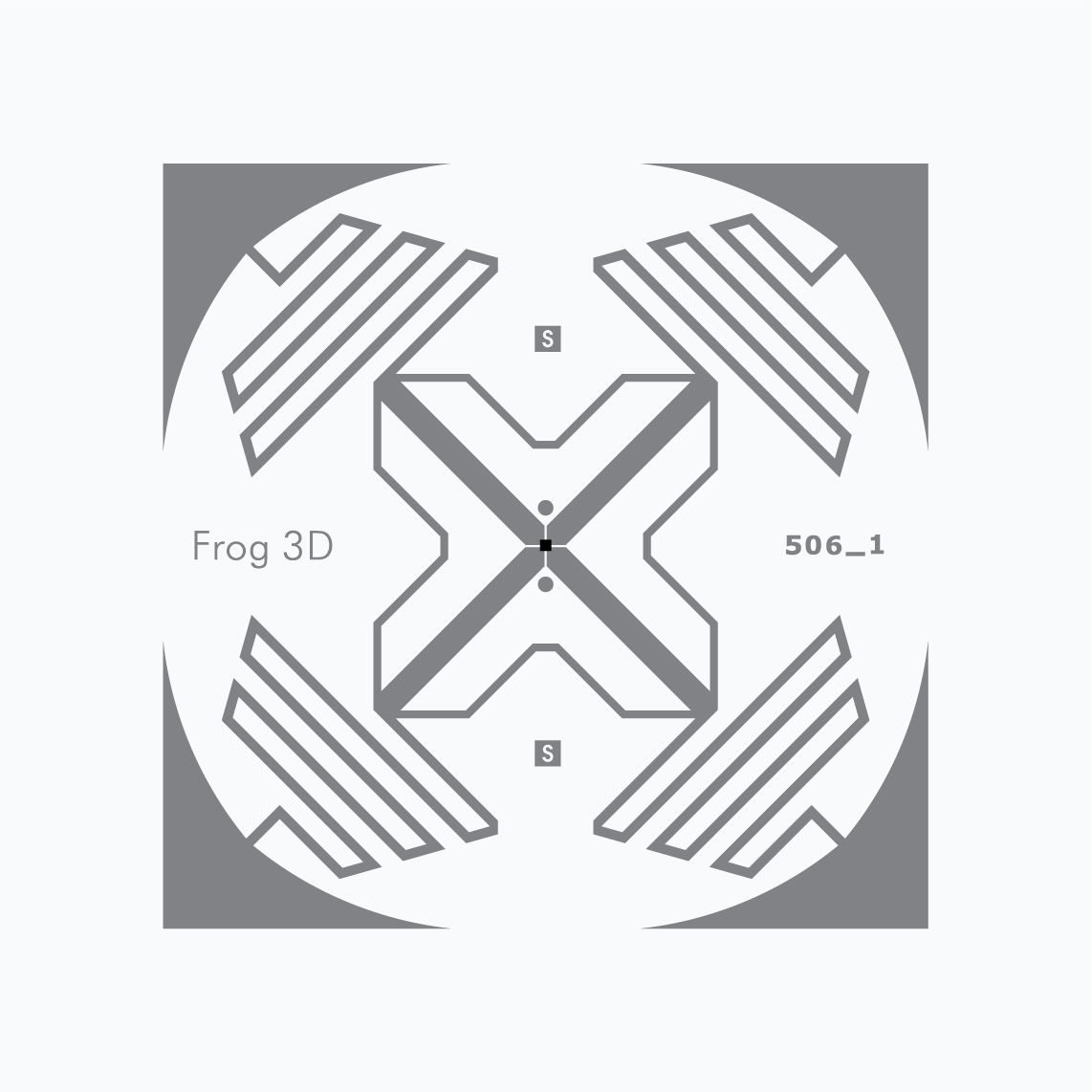

UHF RFID Inlay: Frog 3D, 1.58 inch

AD Frog 3D, 1.58 inch ETSI

  • Chip: Impinj Monza 4i
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    40 x 40 mm / 1.58 x 1.58 in
  • Die Cut Dimensions:
    43 x 43 mm / 1.69 x 1.69 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Label / sticker 3006657 / IL-603163

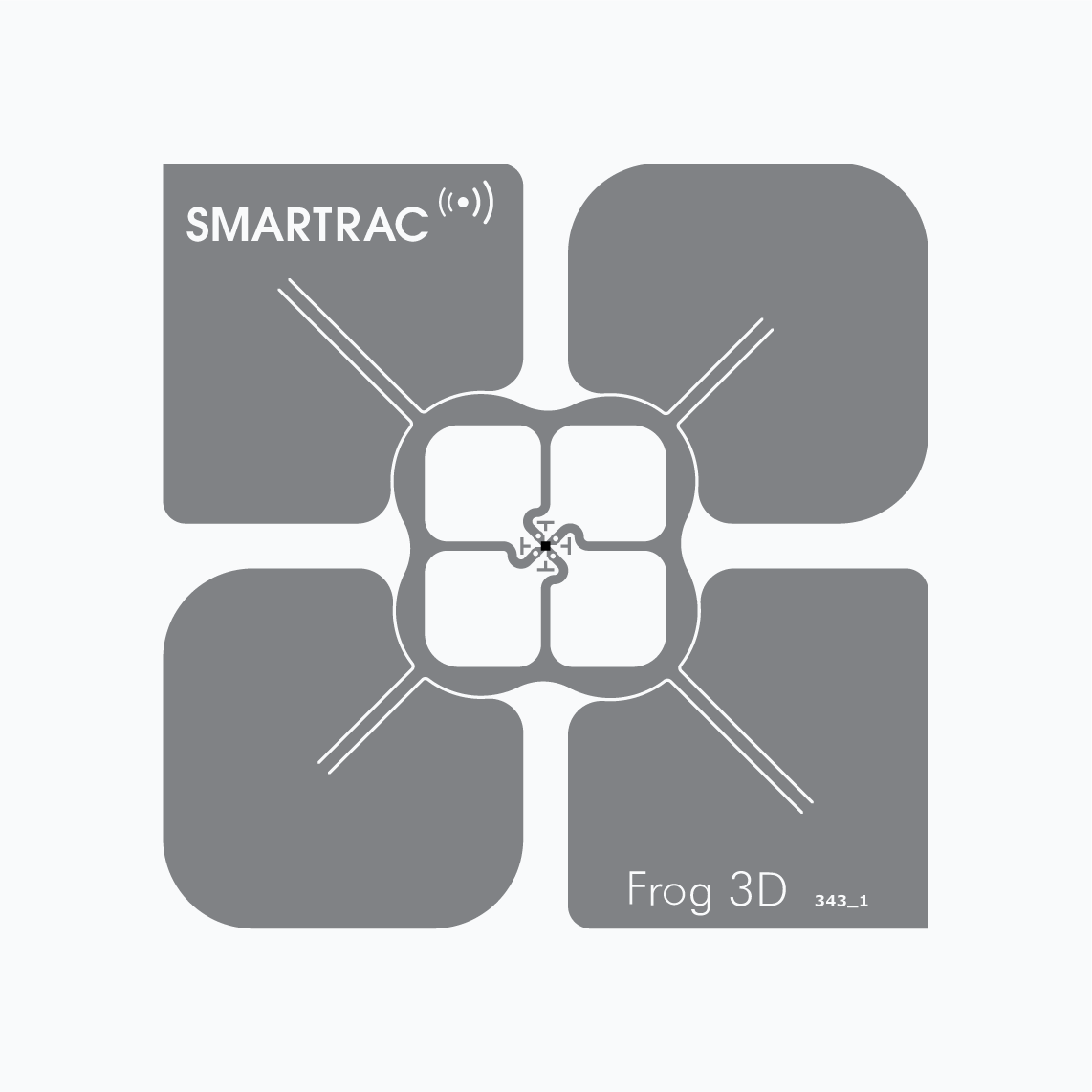

UHF RFID Inlay: Frog 3D, 1.97 inch

AD Frog 3D, 1.97 inch

  • Chip: Impinj Monza 4D
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    50 x 50 mm / 1.97 x 1.97 in
  • Die Cut Dimensions:
    53 x 53 mm / 2.09 x 2.09 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet+ inlay 3002015 / IL-602603

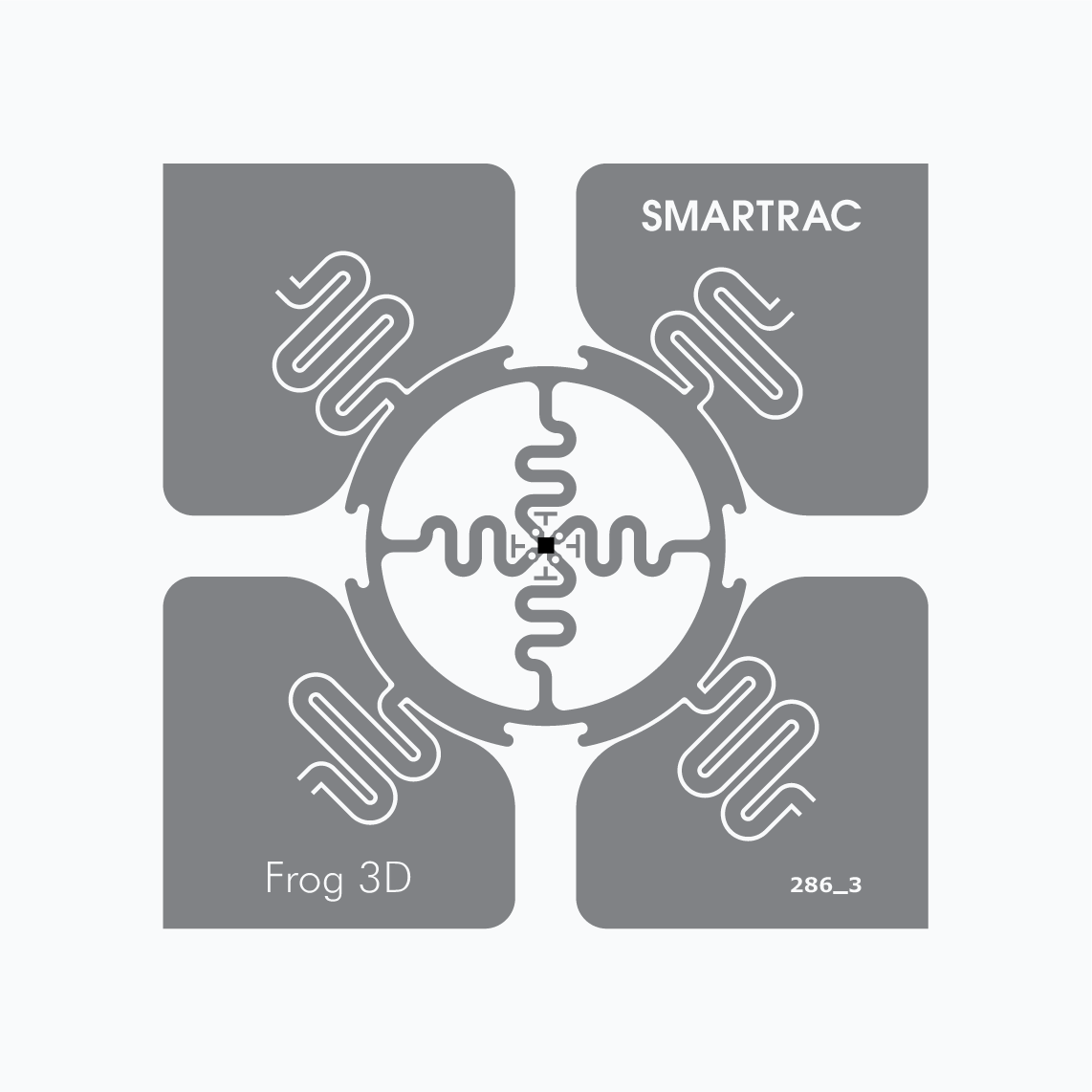

UHF RFID Inlay: Frog 3D, 3 inch

AD Frog 3D, 3 inch

  • Chip: Impinj Monza 4D
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    68 x 68 mm / 2.68 x 2.68 in
  • Die Cut Dimensions:
    76 x 76 mm / 3 x 3 in
  • EPC Memory: 256 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet+ inlay 3002347 / IL-602690
    Label / sticker 3002348 / IL-602691

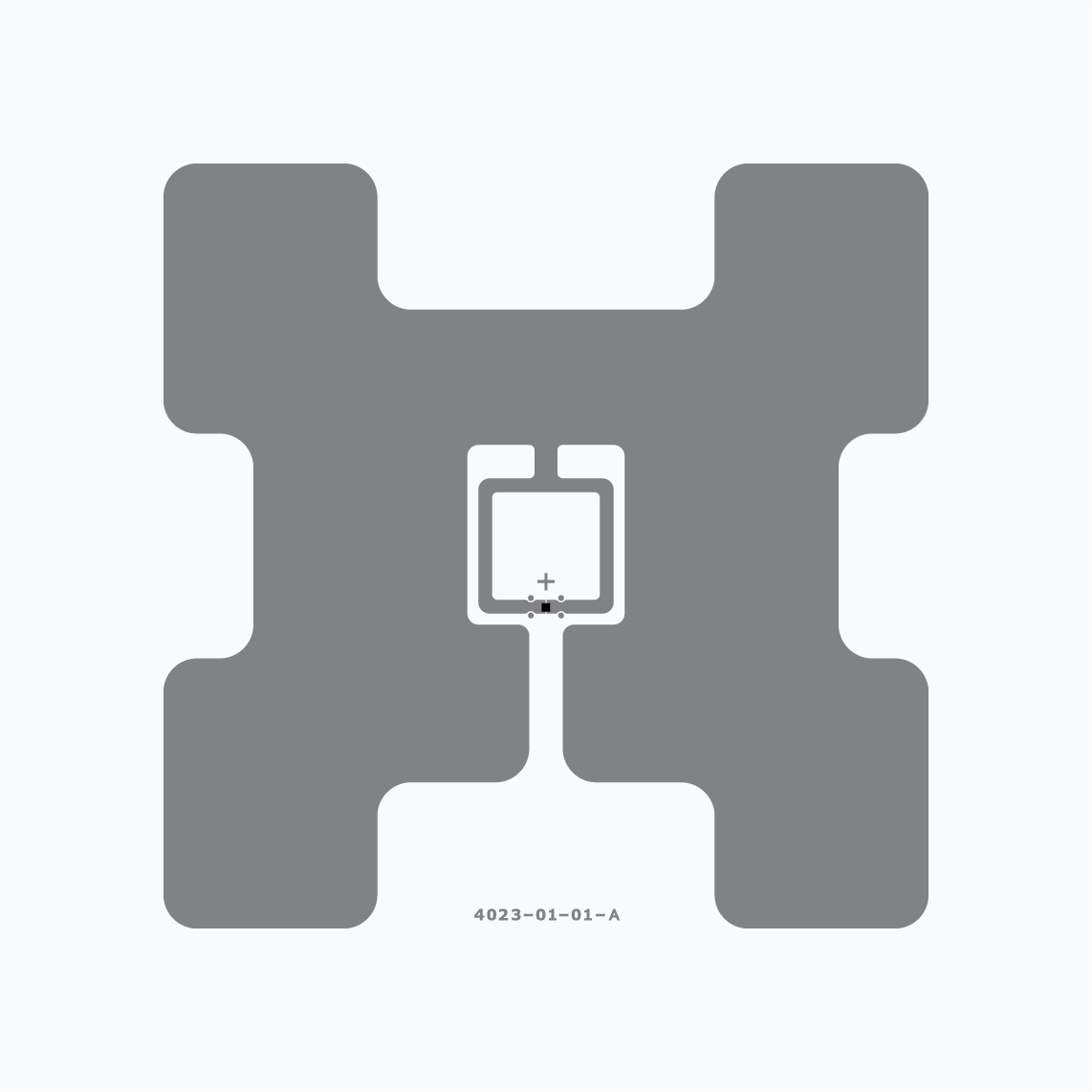

UHF RFID Inlay: Frog M4QT ETSI

AD Frog M4QT ETSI

  • Chip: Impinj Monza 4QT
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    40 x 40 mm / 1.58 x 1.58 in
  • Die Cut Dimensions:
    43 x 43 mm / 1.69 x 1.69 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet+ inlay  3006928 / IL-603314
