NFC RFID Inlay: Bullseye™ On-Metal

HF RFID Inlay: Bullseye™ On-Metal
HF RFID Inlay: Bullseye On-Metal

Flexible ferrite-based NFC tags for multiple use

Industry segments: Industrial Applications, Media and Document Management

Avery Dennison Smartrac’s NFC Bullseye™ On-Metal tags have been specifically designed to work on metallic objects. They open the door to all applications involving the tagging of metal surfaces that need to be identified or interacted with, such as metallic parts, tools, machines, spare parts and even domestic items.

In its Bullseye On-Metal tags, Avery Dennison Smartrac combines flexible ferrite materials with a performance-optimized antenna design. The super-thin ferrite-based inlay is produced by applying a layer of ferrite material to the inlay, which isolates the magnetic field from the metal surface. Ferrite redirects the reader’s inductive field, and prevents energy from being wasted as heat within the metallic surface.

The flexible ferrite-based NFC inlays are suitable for roll-to-roll manufacturing processes, which make onward processing much easier and more cost-effective, and allow converters to overprint the inlays if required.

Bullseye On-Metal is equipped with the NXP NTAG213 IC. This chip offers (UID) mirror functionality that enables the IC’s serial number to be mirrored as part of its encoded data, and identifies unique reads from the application perspective. The product is less than half a millimeter thicker including the added ferrite layer, and offers the same well-known features as all other Bullseye tags.

The inlays and tags are compliant with ISO 9001:2008 Quality Management and ISO 14001:2004 Environmental Management. This ensures a reliable and state-of-the-art product that meets a variety of application needs, where high performance is a critical parameter.

Technical Features
Frequency Band
HF 13.56 MHz

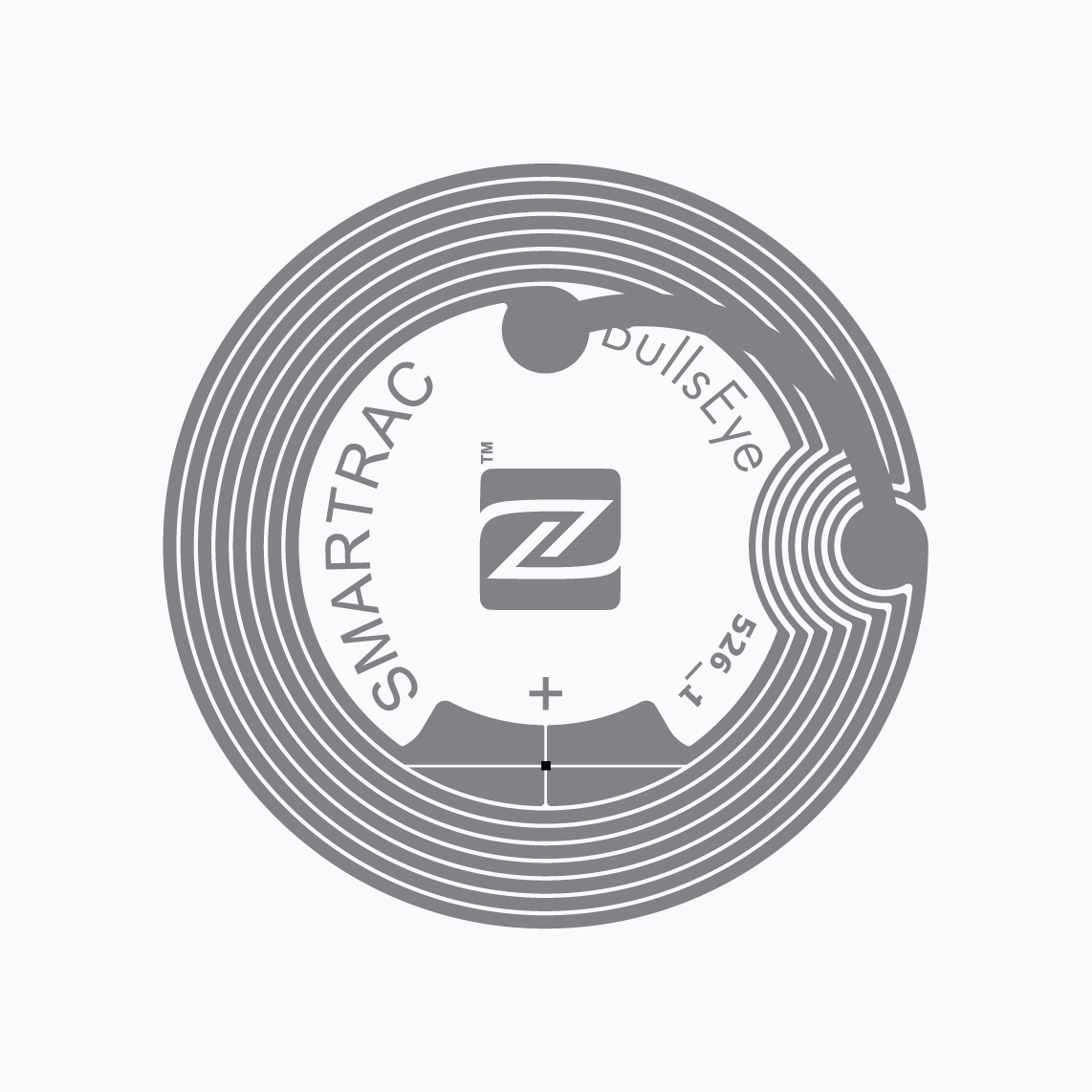

Antenna Dimensions 35 mm / 1.38 in
Die Cut Dimensions 38 mm
EPC Memory n/a
TID Memory n/a
Product Code Wet inlay 3006704

Please find a comprehensive overview of all features in the data sheet.
