Industry segments: Industrial Applications, Media and Document Management

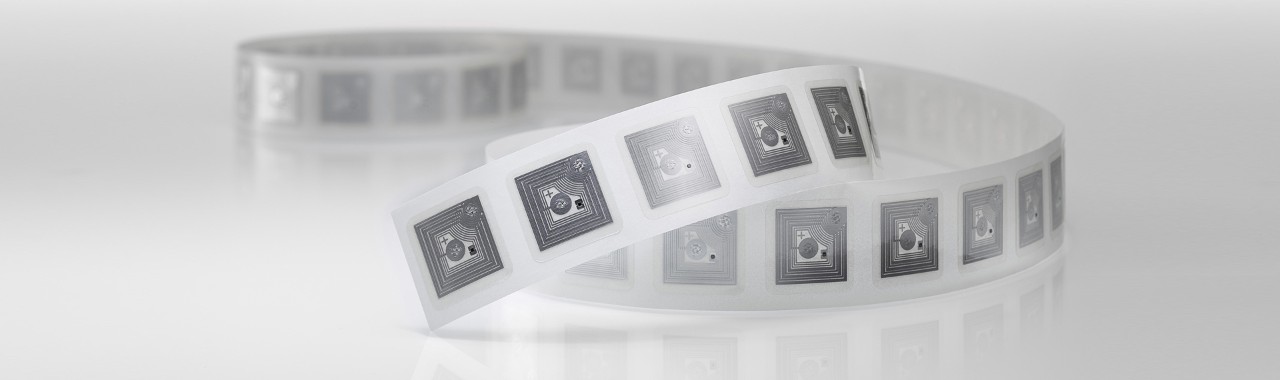

Avery Dennison Smartrac Block inlays and tags featuring NXP ICode ILT-M IC are designed to allow close stacking or contact that confuses other inductively coupled HF and LF tags. The identification rate can be up to 800 tags in one second in a single reader’s field of view.
Block inlays and tags with NXP ICode ILT-M ICs offer two key benefits. Firstly, they have excellent performance in document and item identification where close stacking occurs, which is a challenging environment for other passive protocols.
Secondly, Block tags and inlays also work well in applications where very fast inventory of multiple tags in the field occurs. In these cases, Block tags offer performance approaching UHF EPC Class 1 Gen 2.
The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management. This ensures a reliable and state-of-the-art product that meets a variety of application needs, where high performance is a critical parameter.
Please find a comprehensive overview of all features in the data sheet.
Technical Features
|
|
|---|---|
| Chip |
NXP ICode ILT-M |
| Frequency Band |
HF 13.56 MHz |
| Antenna Dimensions | 45 x 45 mm / 1.77 x 1.77 in |
| Die Cut Dimensions | 48 x 48 mm / 1.89 x 1.89 in |
| EPC Memory | 240 bits |
| Product Code | Dry inlay 3002458 |
| Wet inlay 3002297 |
