AD Altitude  [UHF RFID tag and inlay]

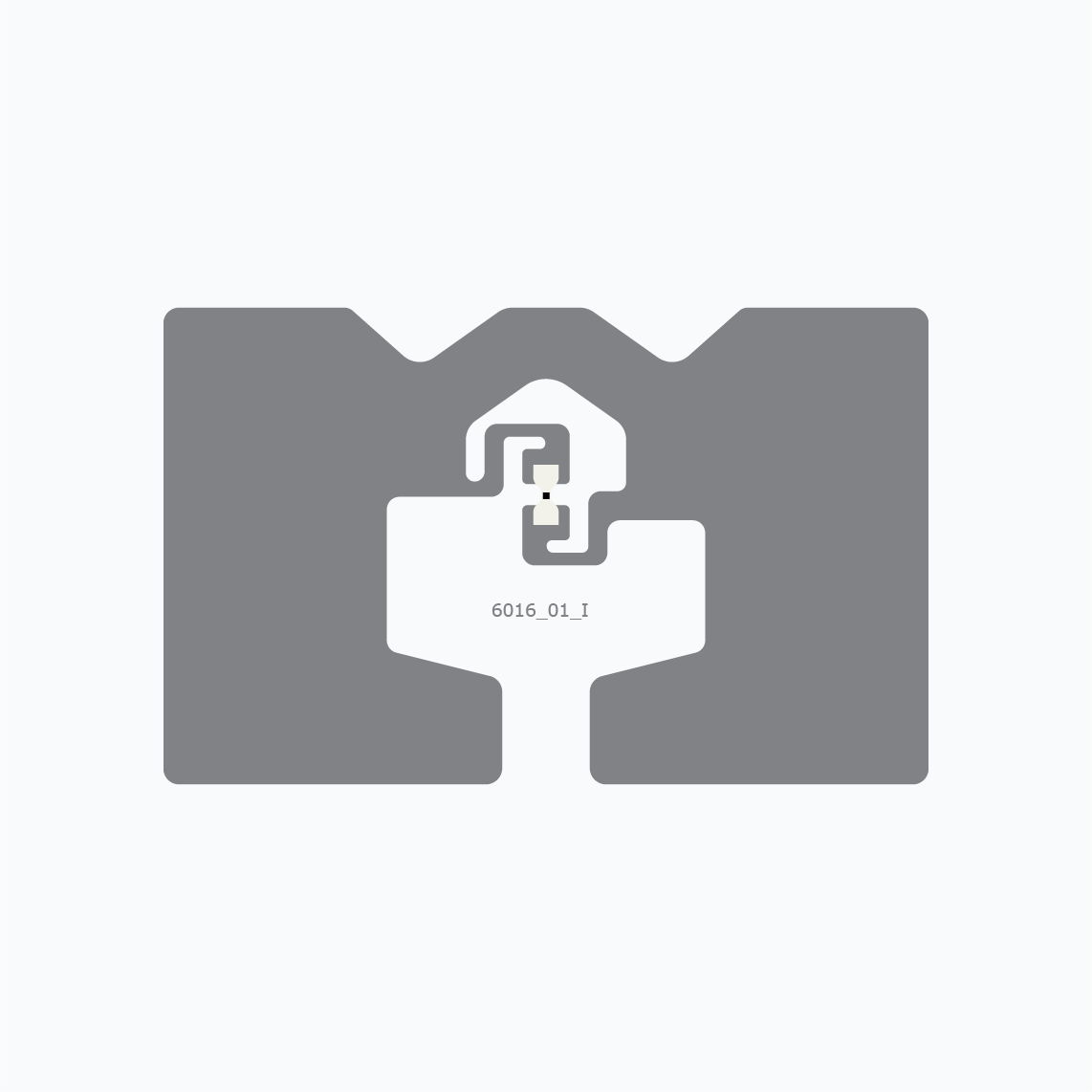

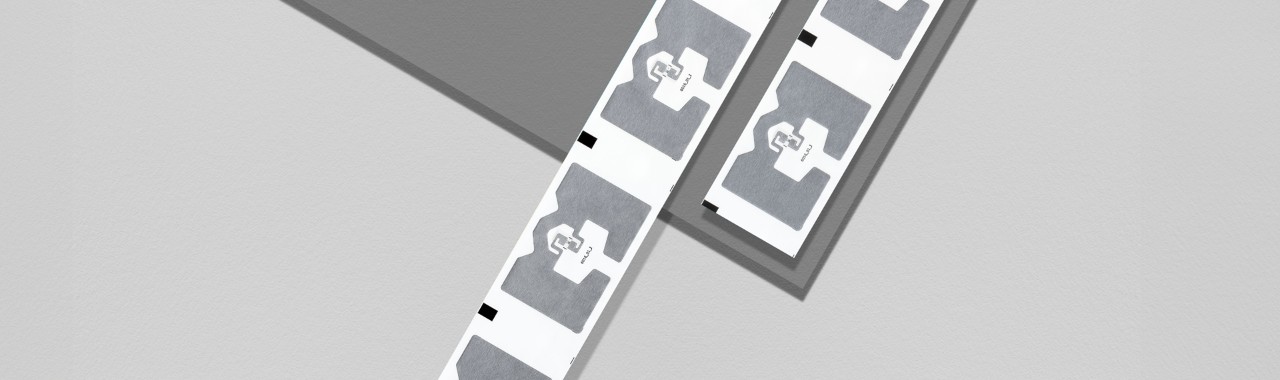

UHF RFID Inlay: AD Altitude

Asset tracking solution for airlines: Efficient luggage and baggage tagging & tracking

Industry segments: Aviation

The AD Altitude M830, powered by the advanced Impinj M800 chip, delivers superior read range, speed, and accuracy, making it an ideal choice for aviation baggage tracking and asset management. Designed to support IATA Resolution 753, it enables automated, reliable tracking at all mandatory touchpoints throughout the baggage journey. With global broadband performance (860–960 MHz), it provides fast, consistent readability while reducing operational costs and maintaining high precision. Now approved for ARC Spec U luggage tagging, it continues to set a strong performance benchmark in the aviation sector.

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD Altitude

AD Altitude M830

  • Chip: Impinj Impinj M830
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    38  x 61 mm / 1.50 x 2.40 in
  • Die Cut Dimensions:
    41 x 64 mm / 1.61 x 2.50 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification
  • Product Code:
    Dry inlay IL-612077
    Label/sticker IL-612078
