AD Web [UHF RFID tag and inlay]

Optimized size and shape for apparel applications

Industry segments: Apparel & Fashion, Automotive, Logistics

Avery Dennison Smartrac Web inlays and tags are designed for the unique identification of items such as apparel and electronics. They are suitable especially for item-level retail, logistics and supply chain applications.

Web inlays and tags have a compact form factor and ideally shaped inlays for apparel hang tags providing high read reliability with low total applied costs.

Avery Dennison Smartrac Web inlays and tags are available with different chips (see below).

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in dry, wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

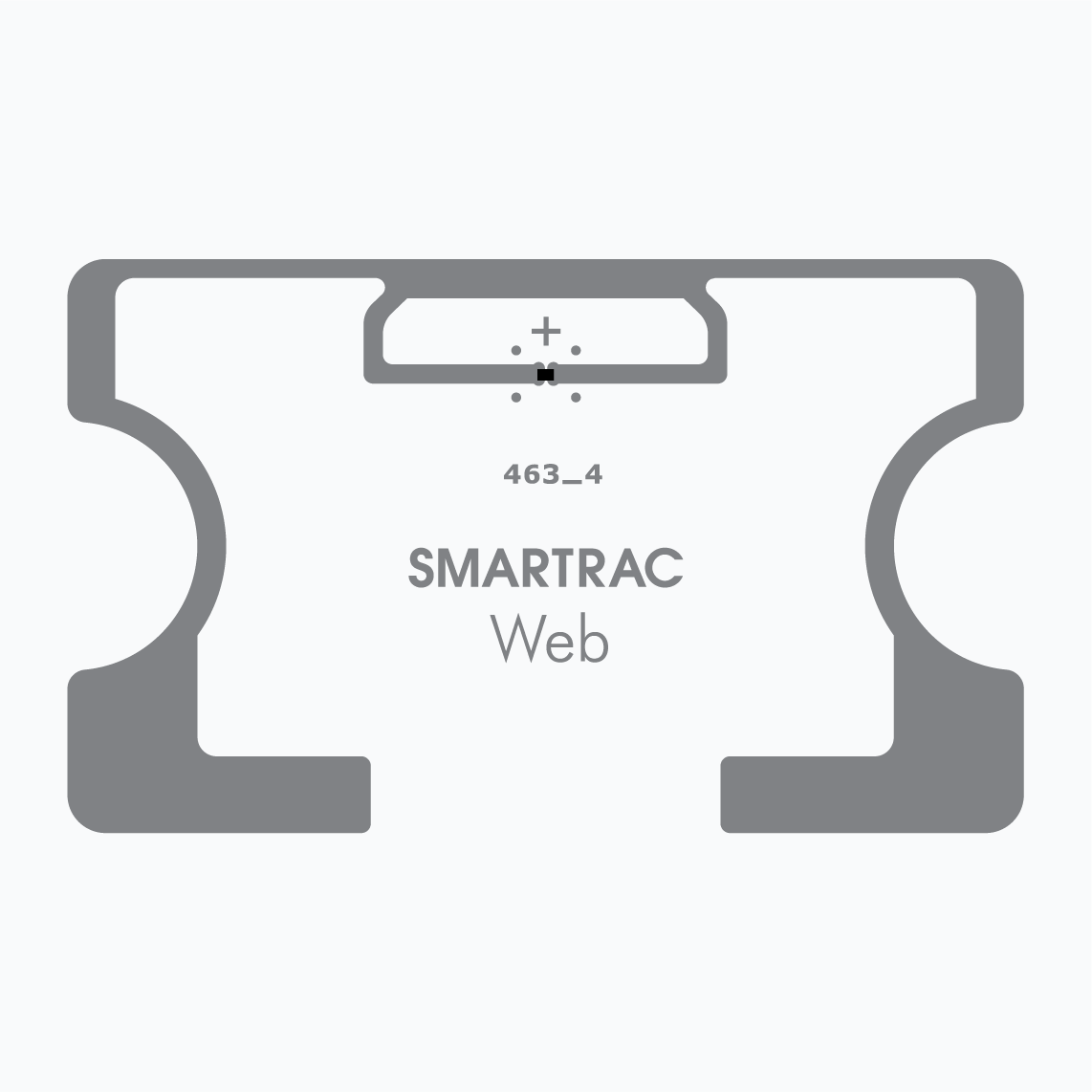

AD Web UG2iL

Chip: NXP UCode G2iL
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
30 x 49.4 mm / 1.18 x 1.95 in
Die Cut Dimensions:
34 x 54 mm / 1.34 x 2.13 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Wet+ inlay 3002003 / IL-602595
Label / sticker 3002004 / IL-602596

Data sheet

AD Web R6-P

Chip: Impinj Monza R6-P
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 34 mm / 2.13 x 1.34 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Dry inlay 3006082 / IL-603011
Wet inlay 3006083 / IL-603012
Label / sticker 3006084 / IL-603013

Data sheet

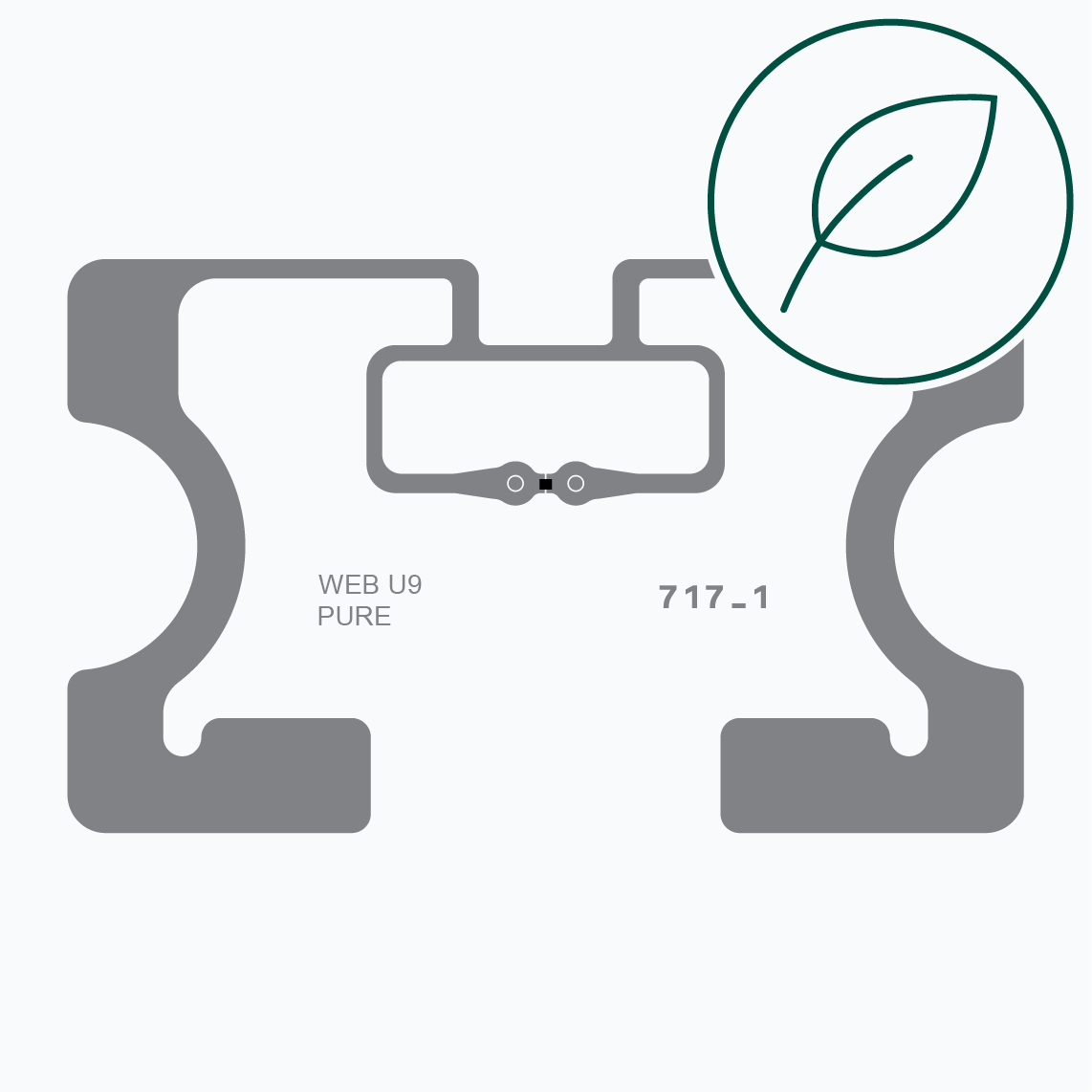

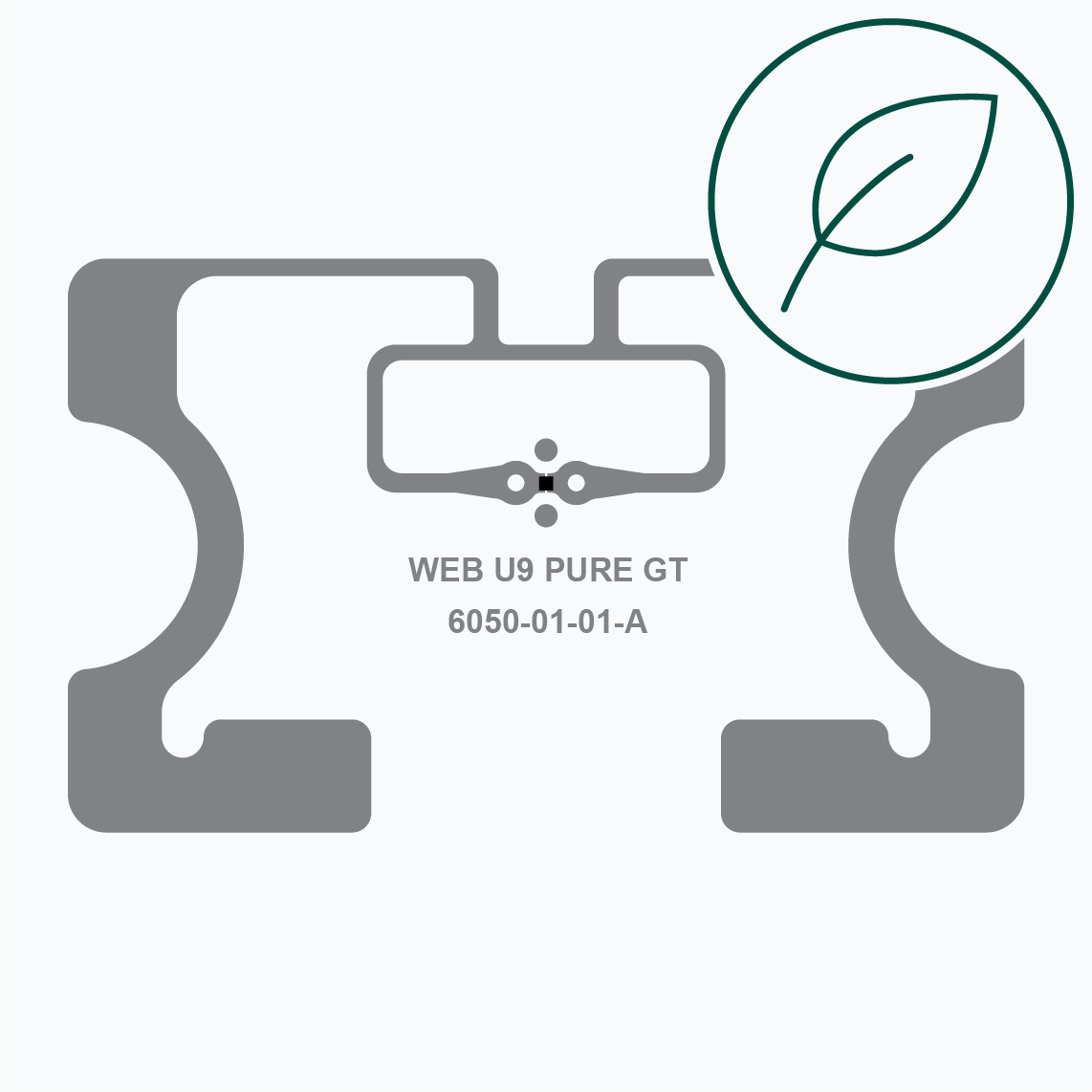

AD Web U9 Pure™

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die cut dimensions:
54 x 33 mm / 2.13 x 1.30 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC Specification: N, Q, G, F, L, I, K, R, Y, O, W1, W2, W3, W4, W5, W6
Product code:
Dry inlay 3009367 / IL-609229
Wet inlay 3009368 / IL-609230
Label / sticker 3009369 / IL-609231

Data sheet

AD Web U7

Chip: NXP UCode 7
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 34 mm / 2.13 x 1.34 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Label / sticker 3002972 / IL-602758

Data sheet

AD Web U8

Chip: NXP UCode 8
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 34 mm / 2,13 x 1,33 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Wet inlay 3007189 / IL-600021
Label / sticker 3007190 / IL-603485

Data sheet

AD Web M730

Chip: Impinj M730
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 34 mm / 2,13 x 1,33 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y
Product Code:
Dry inlay 3007806 / IL-600014
Wet inlay 3007807 / IL-603866
Label / sticker 3007808 / IL-603867

Data sheet

AD Web R6

Chip: Impinj Monza R6
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 34 mm / 2.13 x 1.34 in
EPC Memory: 96 bits
TID Memory: available
ARC Specification: -
Product Code:
Label / sticker 3006074 / IL-603010

Data sheet

AD Web U9

Chip: NXP UCode 9
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 34 mm / 2,13 x 1,33 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: F, G, I, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y
Product Code:
Dry inlay 3008012 / IL-604007
Wet inlay 3008013 / IL-604008
Label / sticker 3008014 / IL-604009

Data sheet

AD Web M750

Chip: Impinj M750
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
50 x 30 mm / 1.97 x 1.18 in
Die Cut Dimensions:
54 x 33 mm / 2,13 x 1,30 in
54 x 37 mm / 2,13 x 1,45 in
EPC Memory: 96 bits
TID Memory: available
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y
Product Code:
Dry+ inlay 3007842 / IL-603893
Wet+ inlay 3007843 / IL-603894
Label / sticker 3007896 / IL-603932
