AD Trap [UHF RFID tag and inlay]

UHF RFID Inlay: Trap

Perfect for small Item-level retail and pharmaceutical applications

Industry segments: Apparel & Fashion, Healthcare

Avery Dennison Smartrac Trap inlays and tags are designed for item-level identification requiring a small footprint and excellent Retail. The compact and reliable Trap products are the perfect fit for smaller pharmaceutical and retail applications. They work well in both near field and far field.

Trap inlays and tags are optimum solution for small item-level tagging, unmatched performance for small difficult-to-tag items and offer great RF-stability in a small form factor. It shows excellent performance in far field with high dielectric materials such as glass vials and Printed Circuit Boards (PCBs) and perfectly works on near field range, too.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

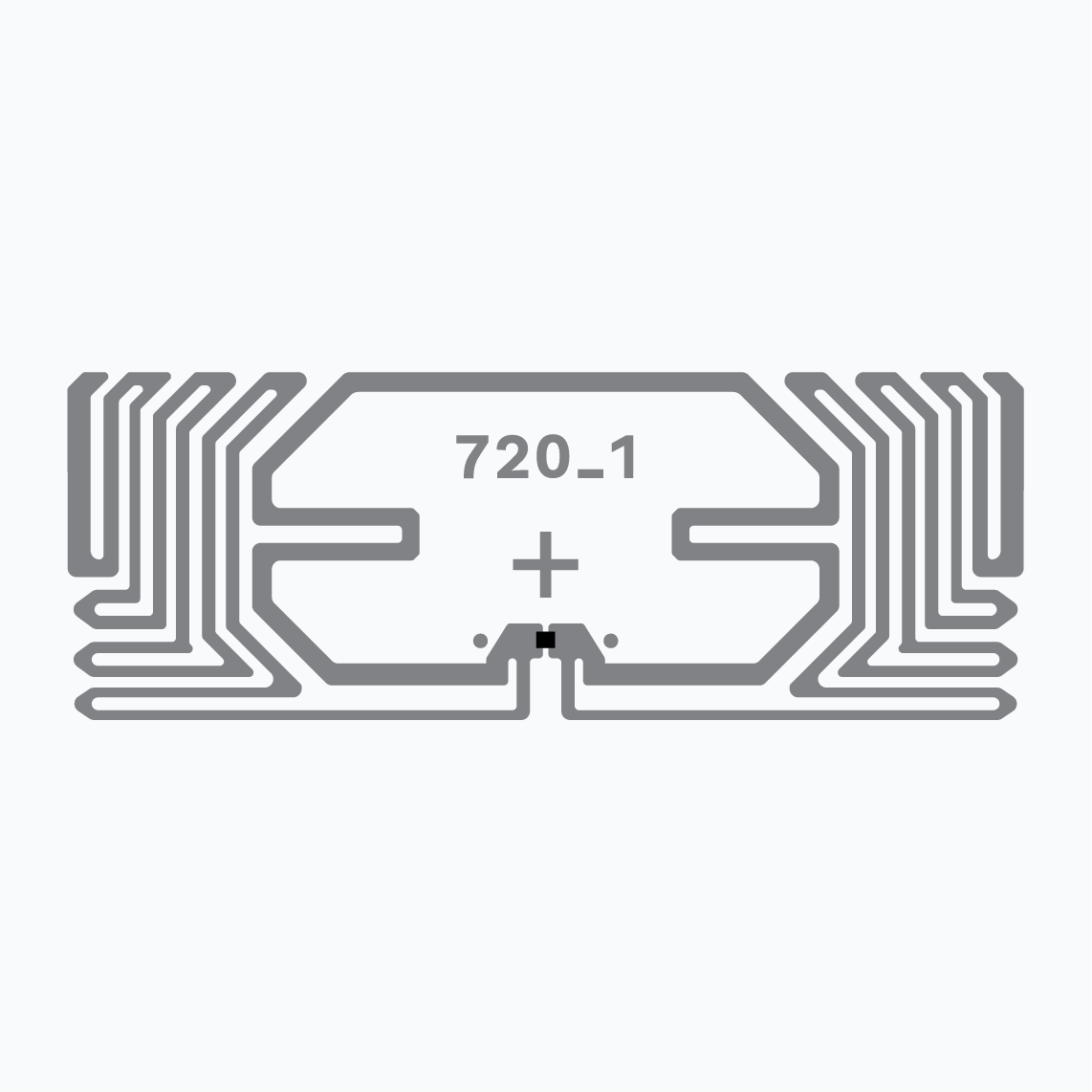

UHF RFID Inlay: Trap, Monza 4D

AD Trap 4D

Chip: Monza 4D
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
8 x 22 mm / 0.32 x 0.87 in
Die cut dimensions:
11 x 25 mm / 0.43 x 0.98
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
Product code:
Wet+ inlay 3002059 / IL-602620

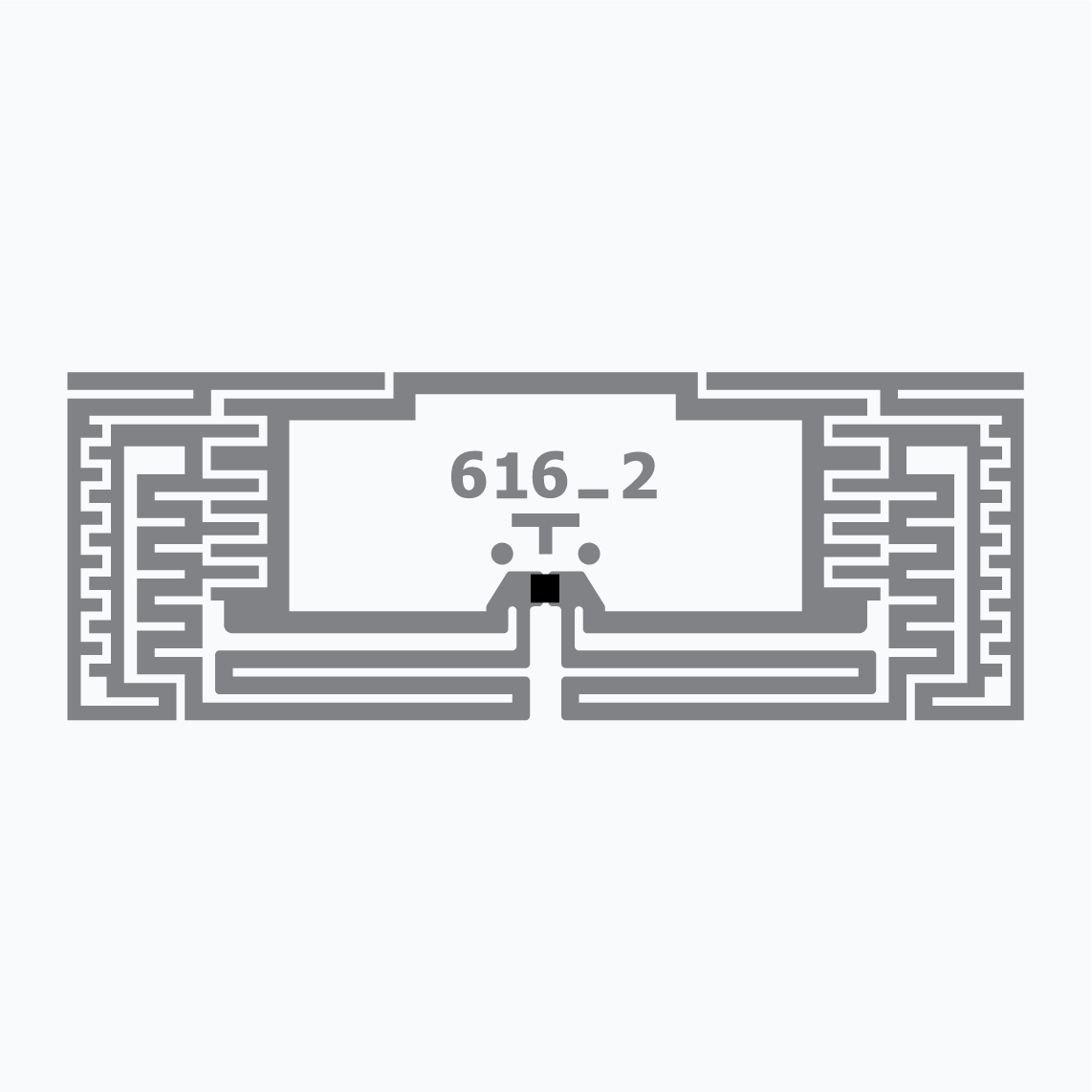

UHF RFID Inlay: UHF RFID Inlay: Trap, Monza 4E

AD Trap 4E

Chip: Monza 4E
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
8 x 22 mm / 0.32 x 0.87 in
Die cut dimensions:
11 x 25 mm / 0.43 x 0.98
EPC memory: 496 bits
TID memory: 96-bit / 48-bit unique serial number
Product code:
Wet+ inlay 3001971 / IL-602587

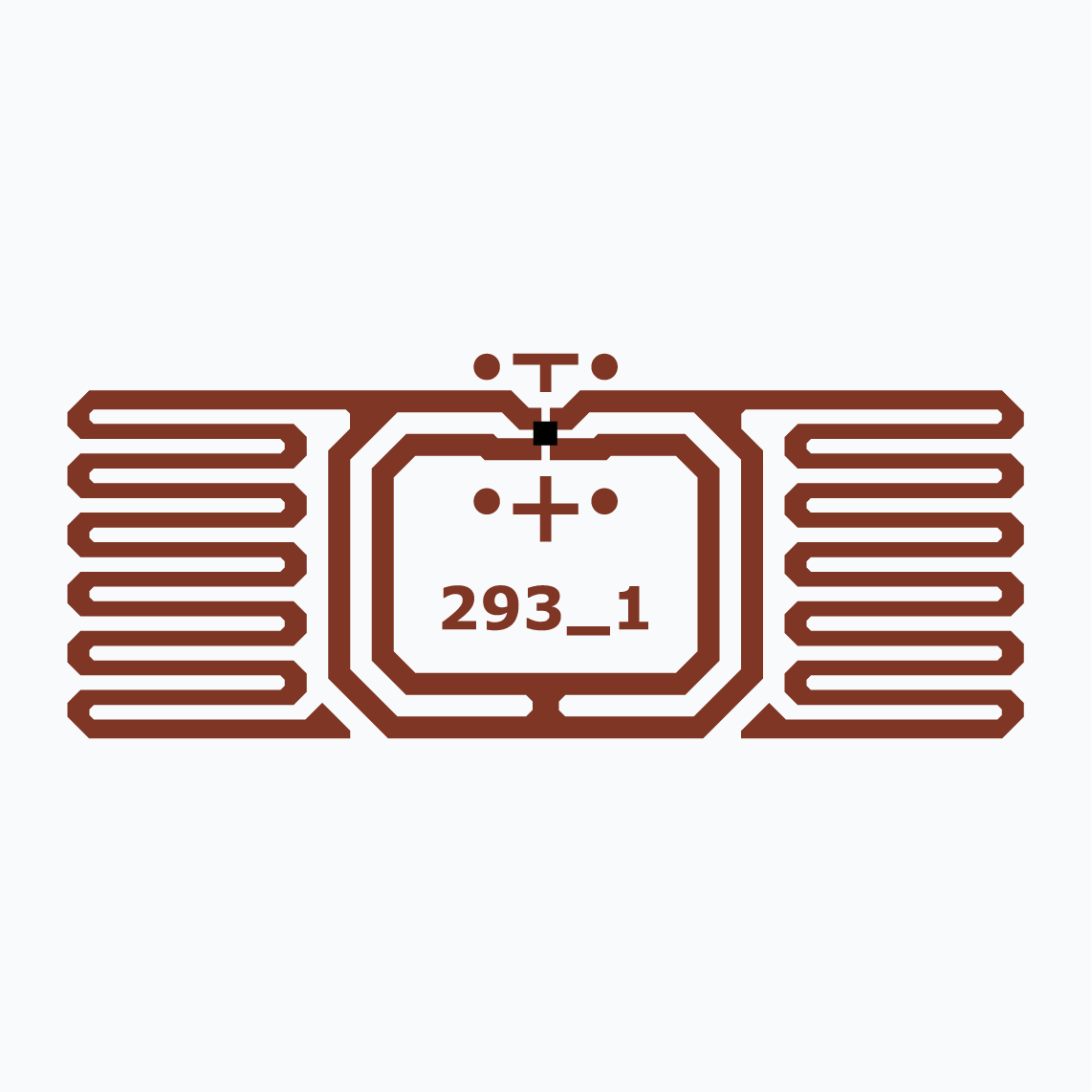

UHF RFID Inlay: UHF RFID Inlay: Trap, Monza 4QT

AD Trap 4QT

Chip: Monza 4QT
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
8 x 22 mm / 0.32 x 0.87 in
Die cut dimensions:
11 x 25 mm / 0.43 x 0.98
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
Product code:
Wet+ inlay 3005321 / IL-602927

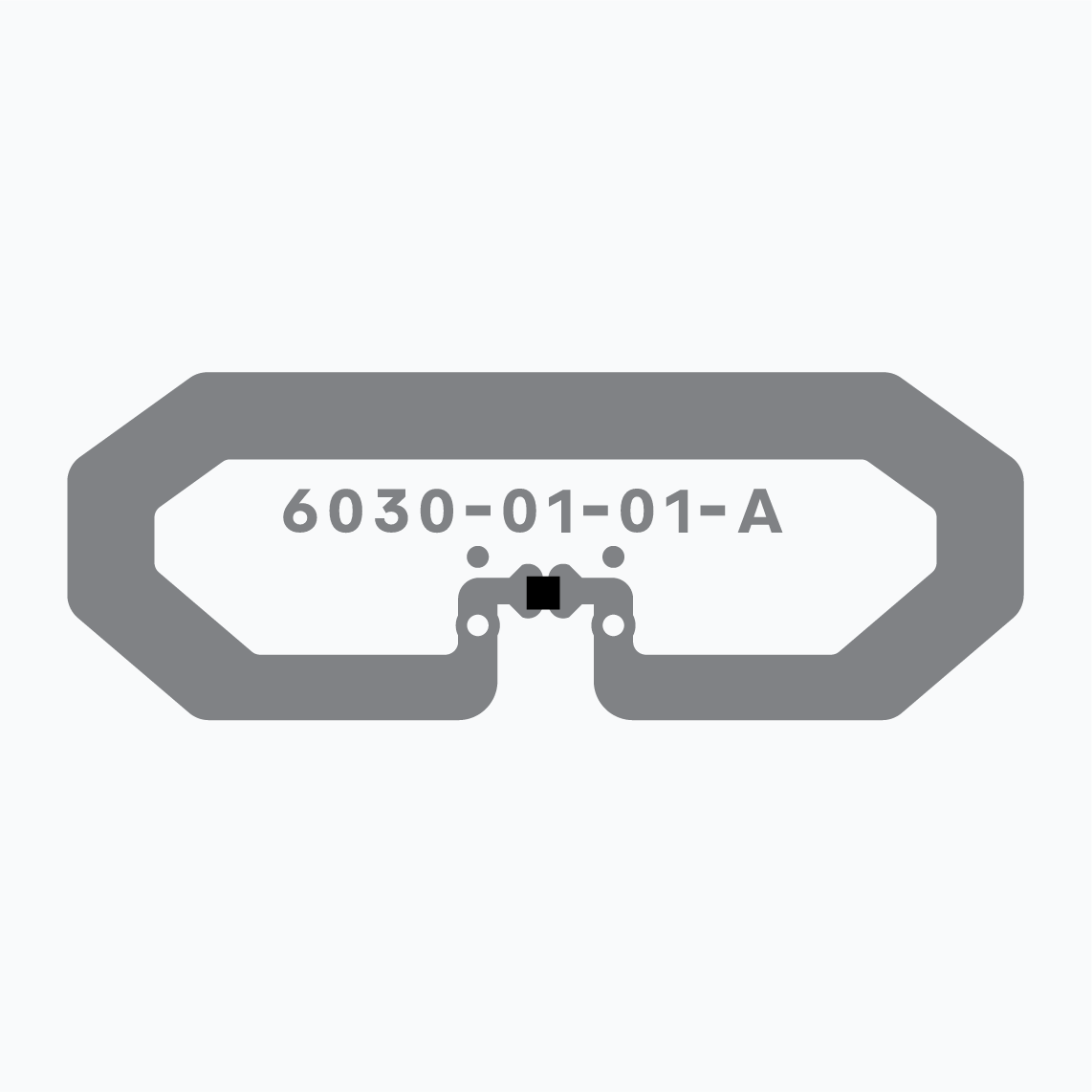

UHF RFID Inlay: AD Trap M730 / M750

AD Trap M730

Chip: Impinj M730
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
8 x 22 mm / 0.32 x 0.87 in
Die cut dimensions:
11 x 25 mm / 0.43 x 0.98
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
Product code:
Wet+ inlay 3007986 / IL-600037

UHF RFID Inlay: AD Trap M730 / M750

AD Trap M750

Chip: Impinj M750
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
8 x 22 mm / 0.32 x 0.87 in
Die cut dimensions:
11 x 25 mm / 0.43 x 0.98
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
Product code:
Wet+ inlay 3007796 / IL-603856

UHF RFID Inlay: AD Trap UCODE9

AD Trap U9

Chip: NXP UCODE 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
8 x 22 mm / 0.32 x 0.87 in
Die cut dimensions:
11 x 25 mm / 0.43 x 0.98
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
Product code:
Wet inlay 3009494 / IL-609290
