AD Surge M830  [UHF RFID tag and inlay]

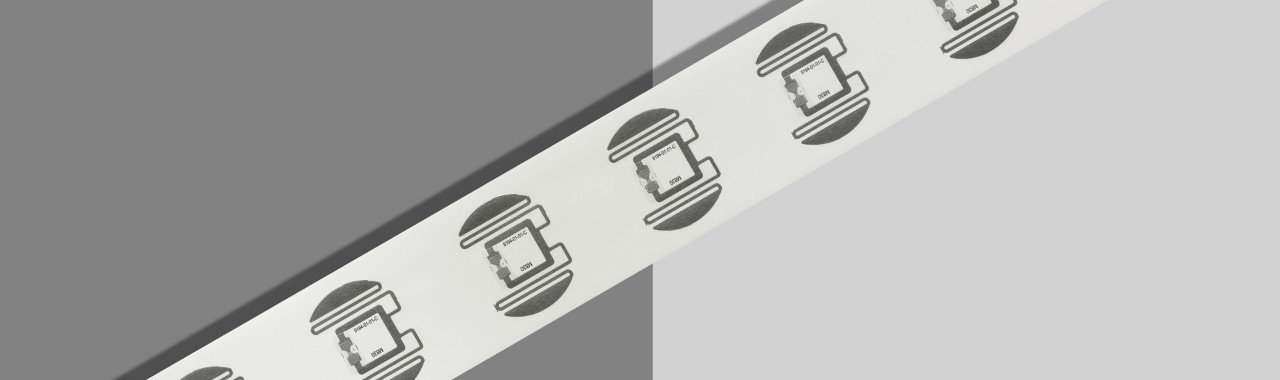

UHF RFID Inlay: AD Sheen

Auburn University ARC certified for General Retail spec B2

Industry segments: General Retail


AD Surge inlays have been designed to target the University of Auburn ARC Spec, B2. This spec was designed to be affixed on the top or embedded beneath bottle caps of products such as motor oil, antifreeze, laundry detergent and other liquid filled containers in a retail environment.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.  Like all RFID products from Avery Dennison, AD Surge M830 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

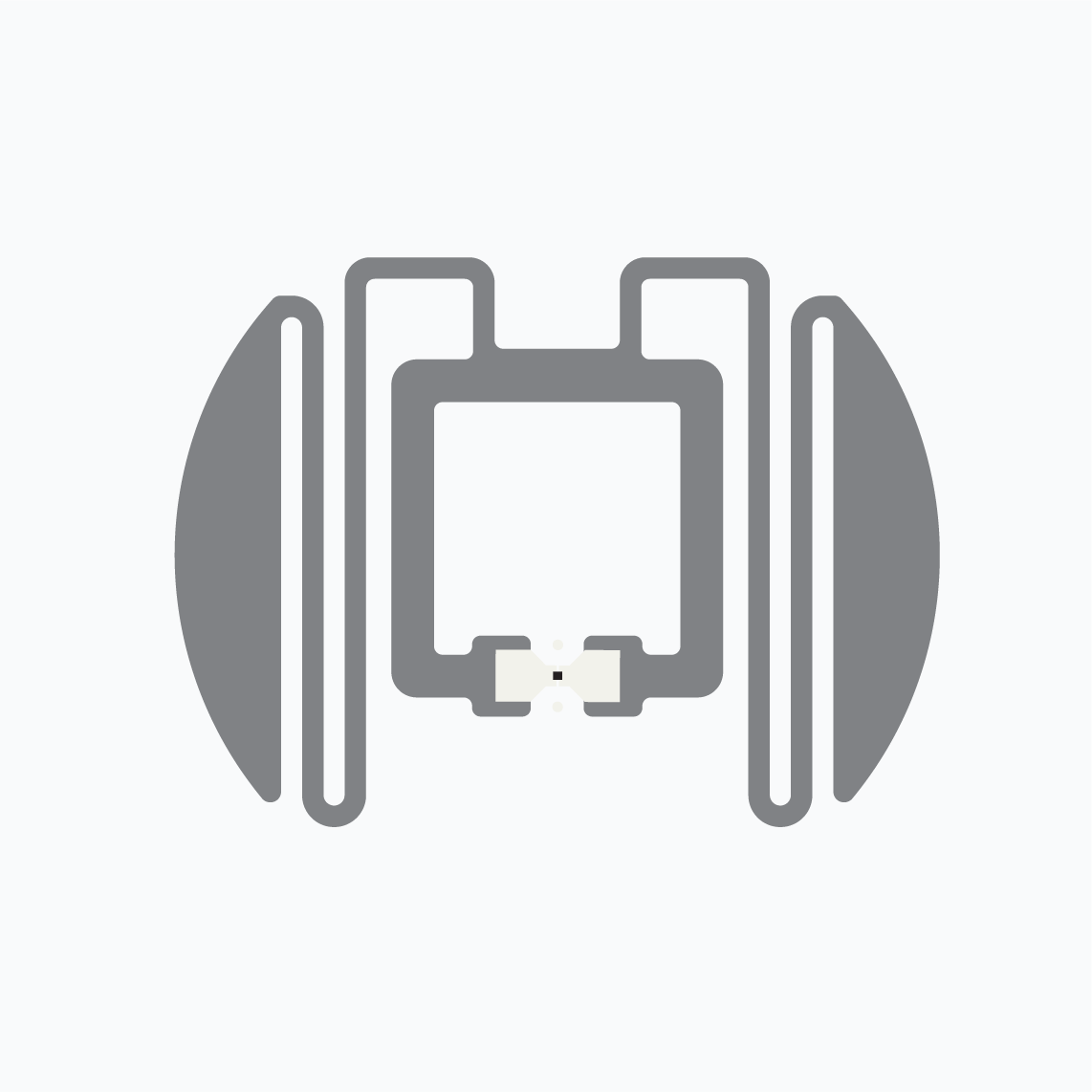

UHF RFID Inlay:  AD Surge M830

AD Surge M830

  • Chip: Impinj M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    36 x 26.8 mm / 1.42 x 1.06 in
  • Die cut dimensions:
    38 mm Diameter
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification
  • Product code:
    Dry Inlay IL-613977
    Wet Inlay IL-614001
    Label IL-611101
