AD Stealth  [UHF RFID tag and inlay]

UHF RFID Inlay: AD Stealth

Item-level tags condensed to the max

Industry segments: Apparel & Fashion, Beauty & Personal Care, Healthcare

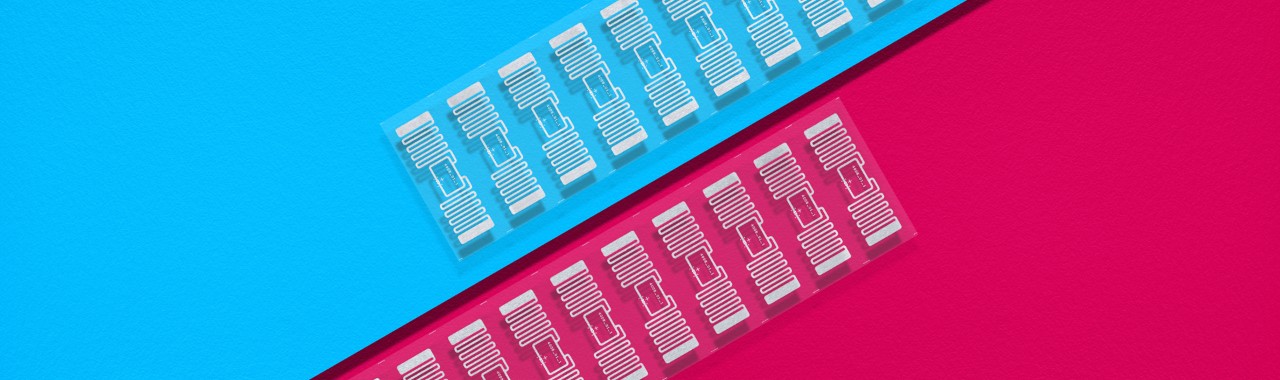

Avery Dennison Smartrac has refreshed its legacy AD Web design family to AD Stealth, a new compact design featuring the Impinj M800 series IC.

AD Stealth inlays and tags are optimized for outstanding read performance in the apparel and general retail categories. The slim, 50 x 14.5mm design is also a great fit for tagging item level merchandise within the beauty and personal care segments. In addition, the versatile design provides strong performance across a broad range of materials and products suited for the logistics and automotive sector.

Due to its condensed, 53 x 17.5mm form factor, AD Stealth inlays and tags will accommodate a wide variety of finished media options including pressure sensitive labels, hangtags and price tickets.

AD Stealth inlays comply with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management to ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the Beauty segment. They are manufactured to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University, which awarded Avery Dennison its first ever ARC accreditation for overall quality.

Please find a comprehensive overview of all features in the data sheet.

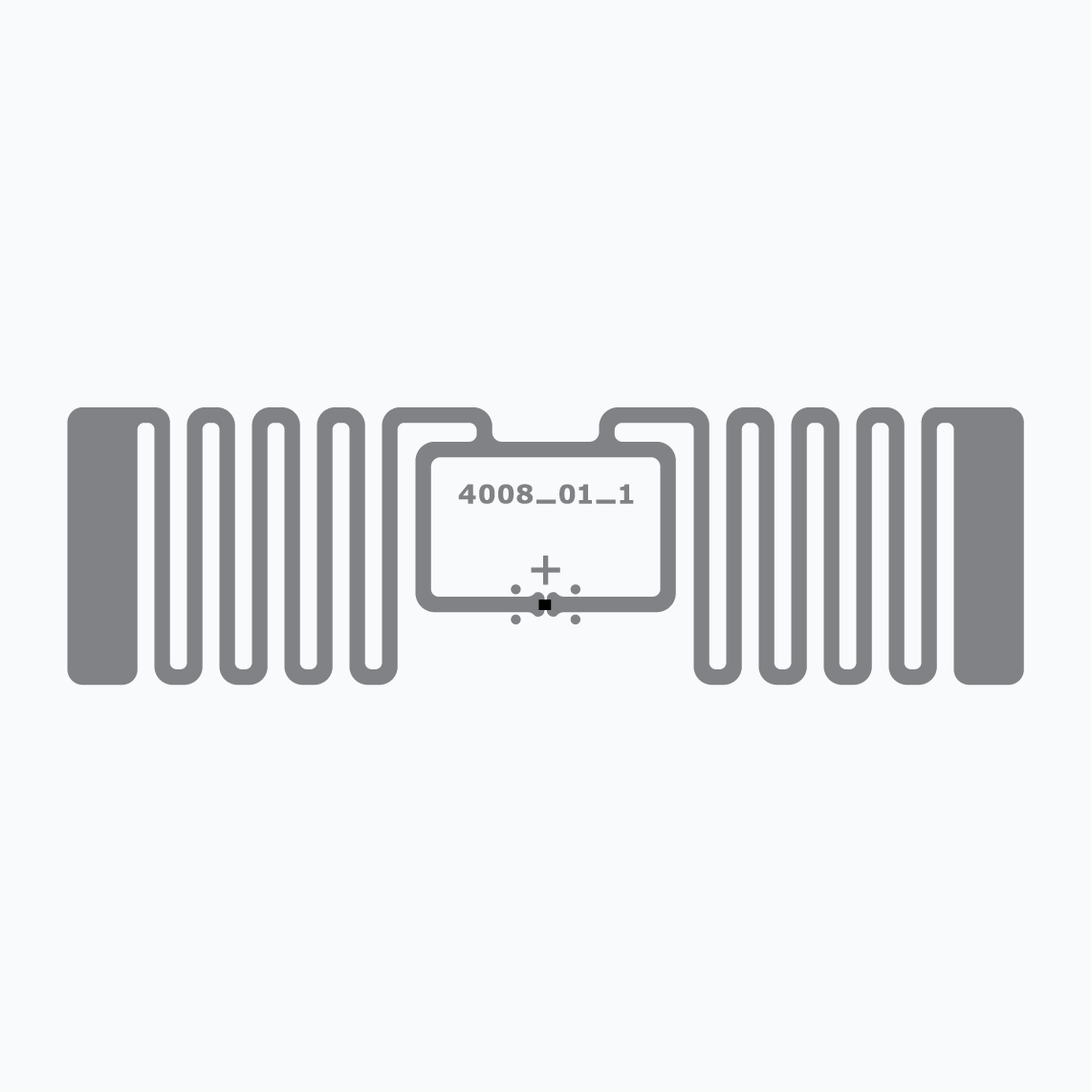

UHF RFID Inlay:  AD Stealth

AD Stealth M830

  • Chip: Impinj M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 14.50 mm / 1.97 x 0.57 in
  • Die cut dimensions:
    53 x 17.50 mm / 2.08 x 0.68 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification
  • Product code:
    Dry inlay IL-610621
    Wet inlay IL-610622
    Label/sticker IL-610623
UHF RFID Inlay:  AD Stealth

AD Stealth M850

  • Chip: Impinj M850
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 14.50 mm / 1.97 x 0.57 in
  • Die cut dimensions:
    53 x 17.50 mm / 2.08 x 0.68 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification
  • Product code:
    Dry inlay IL-610624
    Wet inlay IL-610625
    Label/sticker IL-610626
