AD Squarewave M780 Pure™ [UHF RFID tag and inlay]

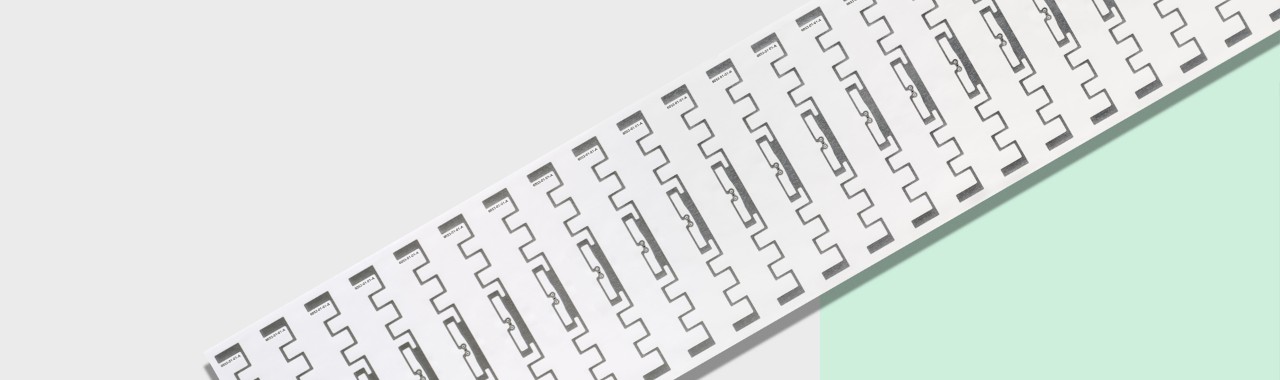

UHF RFID Inlay: AD Squarewave M780 Pure™

High-performance plastic-free for global logistics and sustainable supply chains

Industry segments:  Logistics

The AD Squarewave M780 Pure is a high-performance, plastic-free RFID inlay developed under the Pure Line sustainability initiative, delivering maximum performance in a condensed form factor to meet the growing demand for environmentally responsible identification solutions without compromising RF capability. Optimized for shipping and logistics use cases.

Sustainability
Sustainable while Maintaining the Overall Performance
100% Plastic Free - produced via innovative antenna manufacturing technology where aluminum antenna is made directly on a paper carrier
70-90% Lower Carbon Footprint - enabled by innovative antenna manufacturing method (compared to traditional etching method) Reduced Materials & Recycling Excess Materials - enabled by the manufacturing process
Recyclable in Paper & Cardboard Recycling Streams –

  • Europe: verified by a third-party laboratory in the EU against Cepi Recyclability Test Method Version 3 (Part I: Recycling mill with conventional process and PTS-RH 021:97/2012.
  • The USA: the hang tag construction is certified by Western Michigan University against SBS-E Part I (repulpability) and Part II (recyclability). How2Recycle® has “pre-qualified**” the RFID construction when applied to a paper hang tag and determined that the structure is eligible  for a widely recyclable label.

EU PPWR Ready - a plastic-free component, simplifying compliance with upcoming Plastic Packaging Waste Regulations and recycled content targets.

Quality
Quality & Environmental Compliance: Compliant with ISO
9001:2015 Quality Management and ISO 14001:2015
Environmental Management standards.

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD Squarewave M780 Pure

AD Squarewave M780 Pure™

  • Chip: Impinj M780
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    93 x 11 mm / 3.66 x 0.43 in
  • Die cut dimensions:
    97 x 15 mm / 3.82 x 0.60 in
  • EPC memory: 496 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Dry inlay IL-614798
    Wet inlay IL-614799
    Label/sticker IL-614800
Data sheet
