AD Sheen  [UHF RFID tag and inlay]

UHF RFID Inlay: AD Sheen

Narrow design for excellent performance on woven labels

Industry segments: Apparel & FashionGeneral Retail


Avery Dennison Smartrac's AD Sheen M830 inlays deliver excellent performance in a range of RFID tagging applications, including supply chain, inventory, logistics, apparel, and general retail. Its apparel design is especially beneficial for retailers, offering consistently high read rates with a compact label size and exceptional performance on fabric, denim, and plastic materials.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison, AD Sheen inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

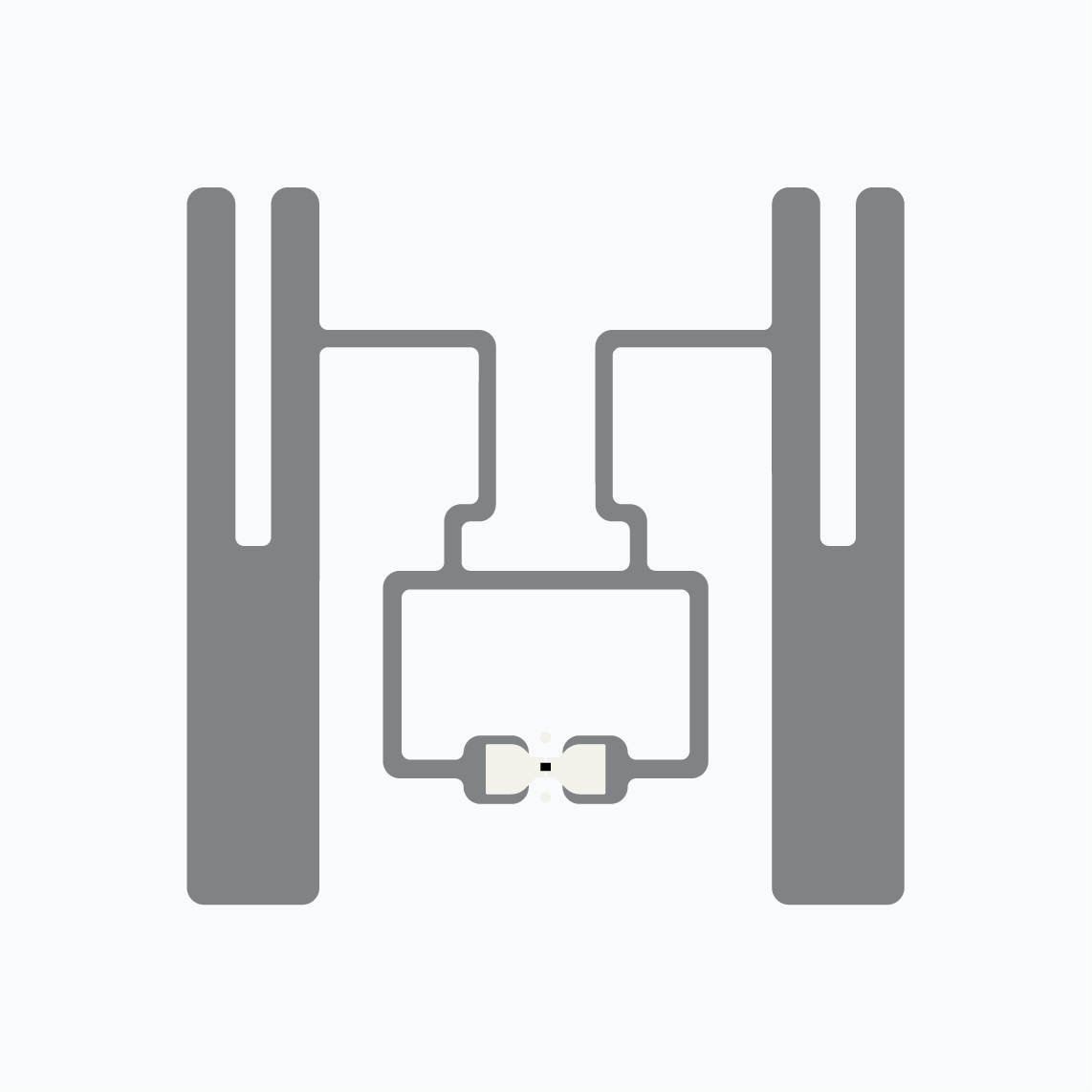

UHF RFID Inlay:  AD Sheen M830

AD Sheen M830

  • Chip: Impinj M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    42 x 42 mm / 1.65 x 1,65 in
  • Die cut dimensions:
    47 x 47 mm / 1.85 x 1.85 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Wet inlay IL-613270
