UHF RFID Inlay: AD Quest M830 NEL

Narrow design for excellent performance on woven labels

Industry segments: Apparel and Fashion, Other Retail

Avery Dennison's AD Quest inlays are designed to deliver optimal performance for apparel retailers. Their narrow design ensures compatibility with a wide variety of woven label sizes. By utilizing an RFID inlay on a PFL substrate, retailers are able to embed these inlays directly into their branded woven labels. This provides an effective solution that discourages removal from garments.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.  Like all RFID products from Avery Dennison, AD Quest inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

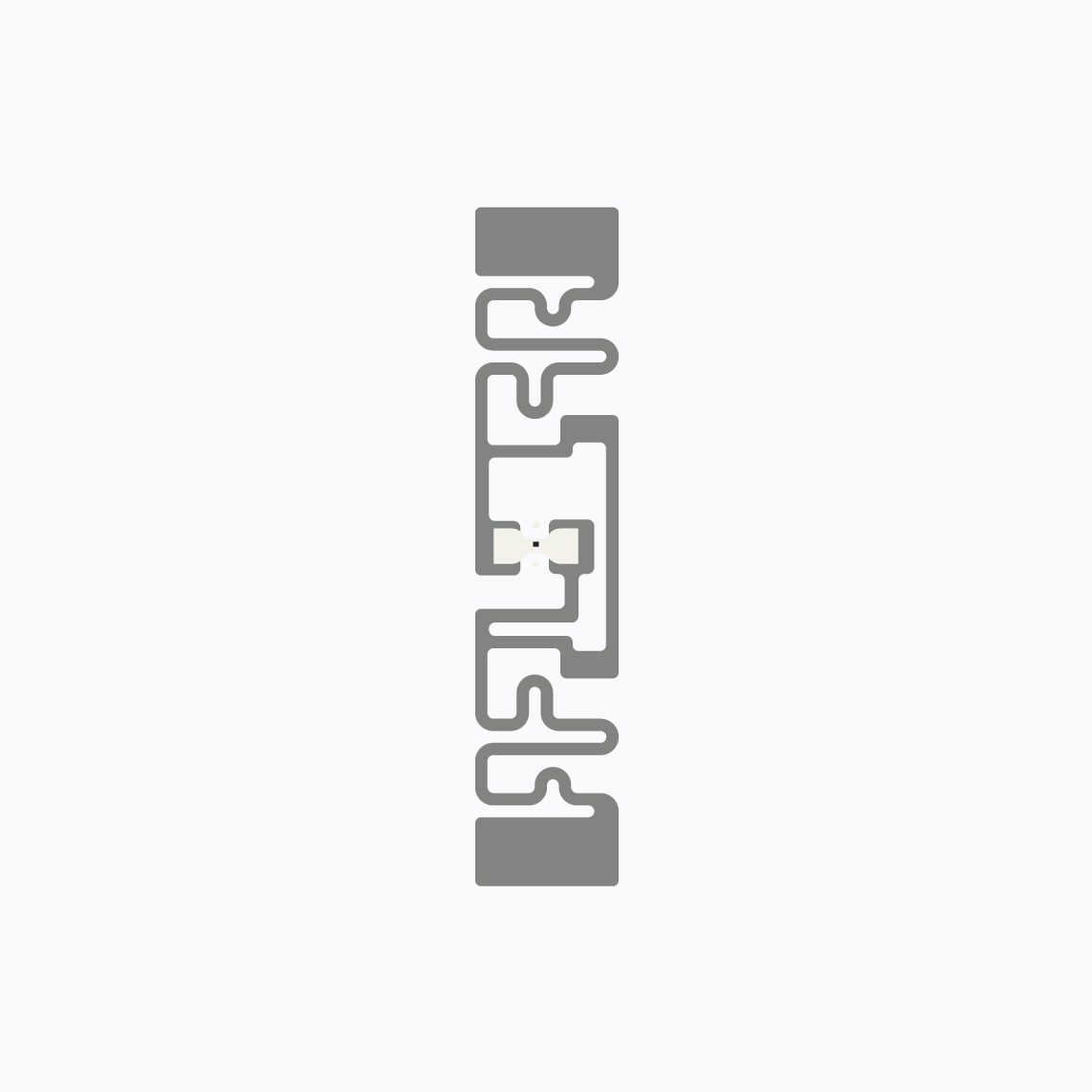

UHF RFID Inlay:  AD Quest M830 NEL

AD Quest M830 NEL

  • Chip: Impinj M830
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    9.50 x 45 mm / 0.37 x 1.77 in
  • Die cut dimensions:
    15.30 x 50 mm / 0.602 x 1.969 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification guide
  • Product code:
    Wet inlay  IL-612664
