AD Quantum (AD-31x) [UHF RFID tag and inlay]

High performing with a small footprint

Industry segments: Apparel & Fashion, Healthcare, Logistics

AD Quantum inlays from Avery Dennison Smartrac are a perfect fit for retail items such as apparel and home essentials as well proven performance in supply chain, inventory and logistics applications.

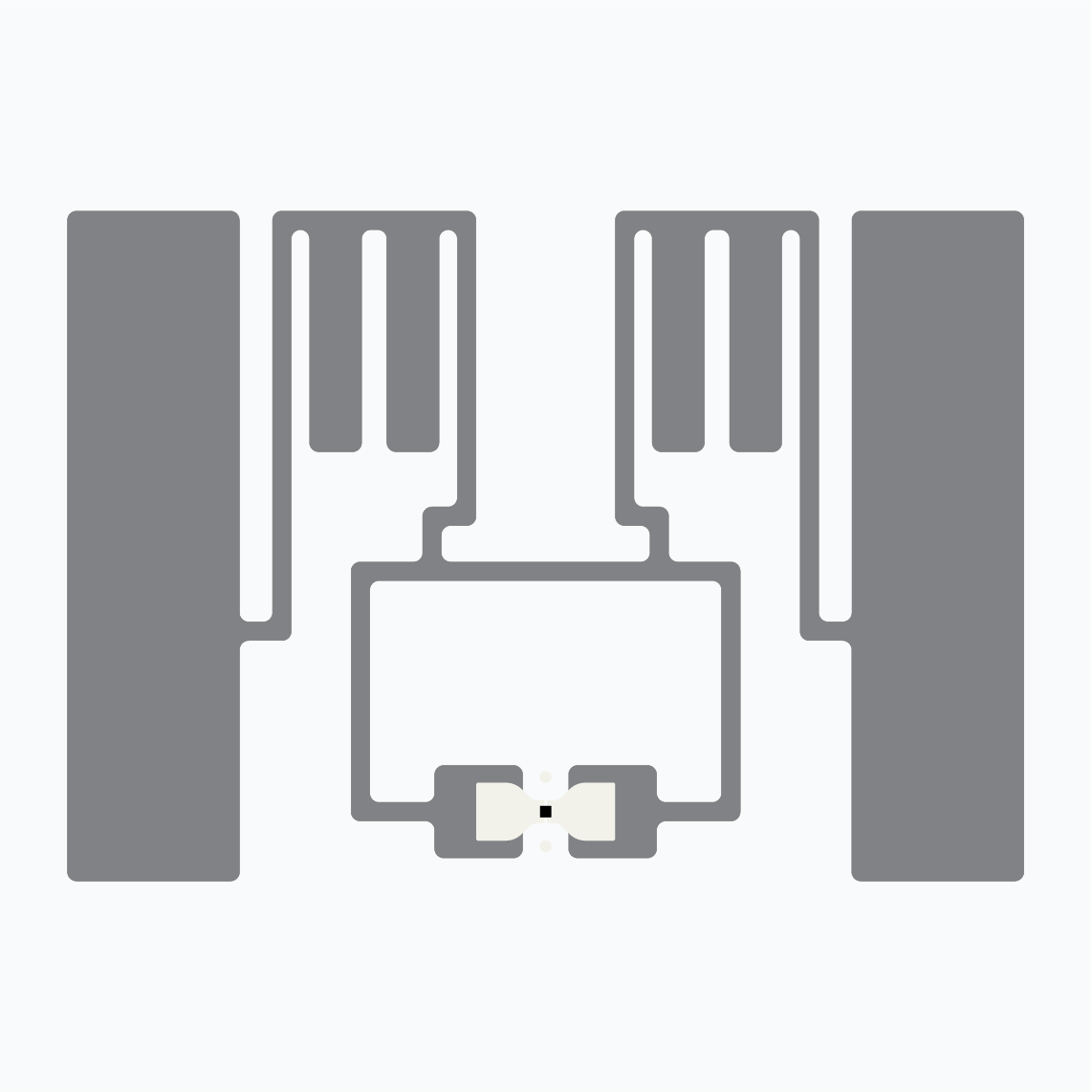

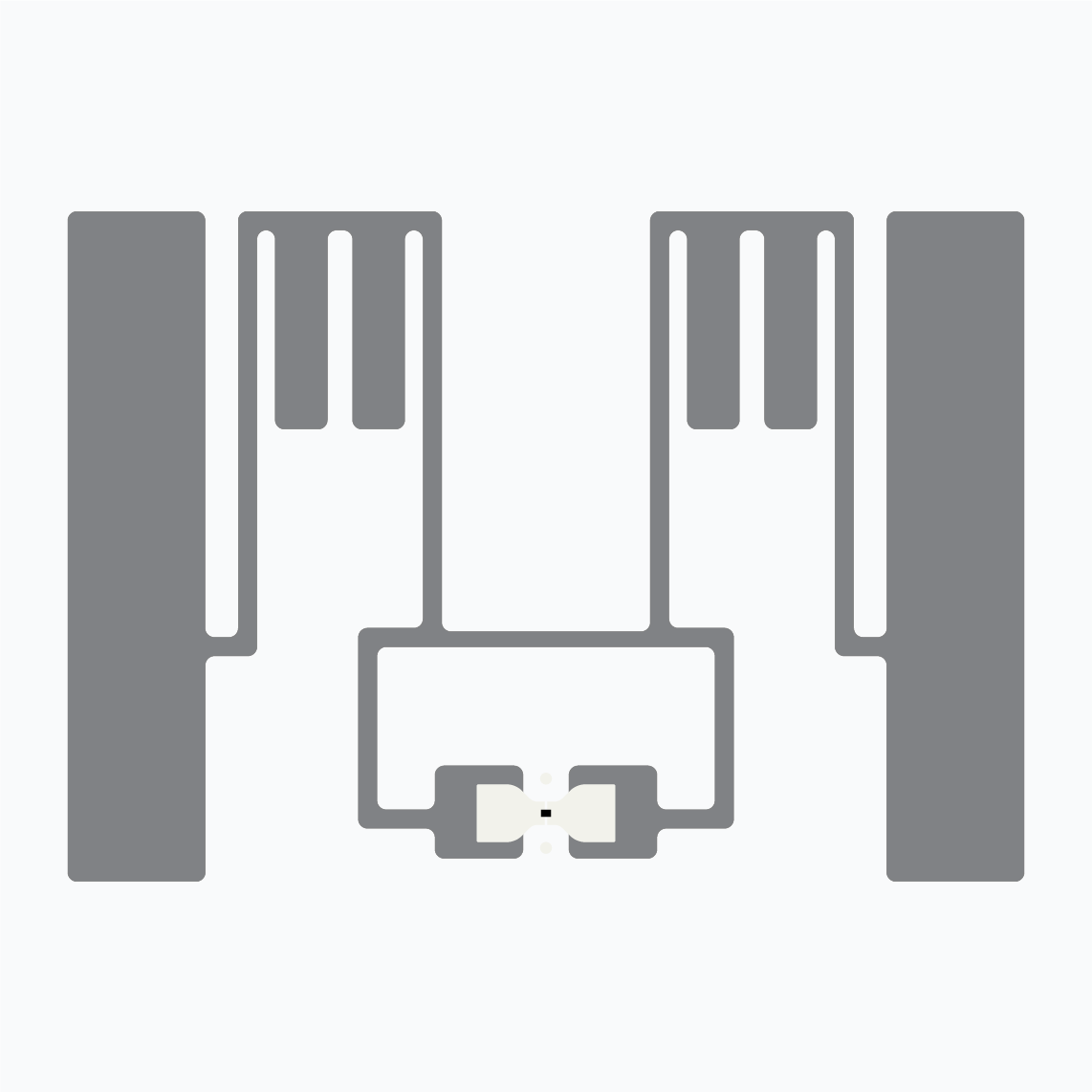

The high performing AD Quantum product family shares a 41.4 x 29 mm antenna size and are globally tuned for excellent broadband performance.

The AD Quantum design is available in a number of IC options that include Impinj M7 as well as NXP Ucode 8 and Ucode 9. This product family is available in dry, wet and label delivery formats and is part of our AD Pure™ Product Line offerings.

Like all RFID products from Avery Dennison Smartrac, AD Quantum inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

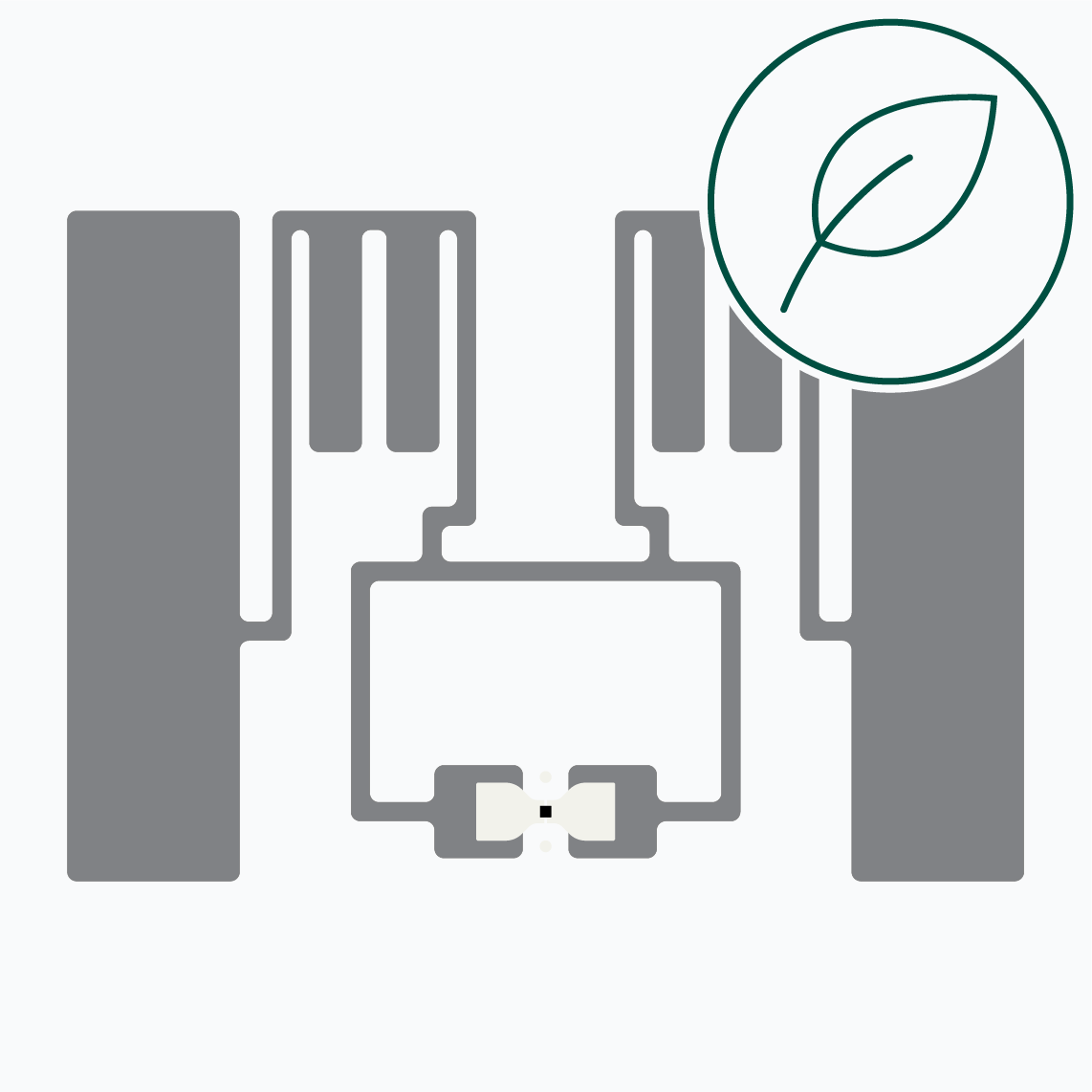

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Inlay is available in wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

AD-310u8

Chip: NXP UCode 8
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41,40 x 29 mm / 1.63 x 1.14 in
Die cut dimensions:
44,45 x 33 mm / 1.75 x 1.30 in
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: -
Product code:
Dry inlay RF601172 / IL-603762
Wet inlay RF601173 / IL-603763
Label / sticker RF100542 / IL-603764

Data sheet

AD-311 M750

Chip: Impinj M750
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41,40 x 29 mm / 1.63 x 1.14 in
Die cut dimensions:
44,45 x 33 mm / 1.75 x 1.30 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, I, L, Q, W2, W5
Product code:
Dry+ inlay RF602390 / IL-608014
Wet inlay RF602391 / IL-607269
Label / sticker RF101090 / IL-608400

Data sheet

AD-312 U9

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41,40 x 29 mm / 1.63 x 1.14 in
Die cut dimensions:
44,45 x 33 mm / 1.75 x 1.30 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, I, Q, W2, W5
Product code:
Dry inlay RF602269 / IL-606996
Wet inlay RF602272 / IL-607454
Label/sticker RF101041 / IL-605858

Data sheet

AD-312 U9 Pure 95™

Chip: NXP UCode 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41,40 x 29 mm / 1.63 x 1.14 in
Die cut dimensions:
44,45 x 33 mm / 1.75 x 1.30 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, I, Q, W2, W5
Product code:
Wet inlay RF603184 / IL-609724
Label/sticker RF101676 / IL-609564

Data sheet

AD Quantum U9

Chip: NXP UCODE 9
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
41,40 x 29 mm / 1.63 x 1.14 in
Die cut dimensions:
44,45 x 33 mm / 1.75 x 1.30 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC specification: F, I, L, Q, R, W2, W5, W6, Y2
Product code:
Dry+ inlay IL-609765
Wet inlay IL-609766
Label / sticker IL-609781
