AD Miniweb  [UHF RFID tag and inlay]

UHF RFID Inlay: Miniweb

Compact size, exceptional performance

Industry segments: Apparel & Fashion, Automotive, Healthcare, Industrial Applications, Logistics


AD Miniweb inlays from Avery Dennison Smartrac are designed for general retail, apparel and industrial applications.  Offering a compact size and excellent performance, this inlay is ideal for tagging a wide range of materials.

The AD Miniweb family is optimized for maximum performance, making the inlay suitable for a wide variety of RFID tagging applications, including supply chain, inventory and logistics, apparel, and home essentials, as well as apparel, electronics, sporting goods, and other general merchandise.

The AD Miniweb family carries inlays that provide outstanding global performance in 42 x 16 mm / 1.654 x .0630 inch antenna footprint to be easily converted into your end application needs.

Like all RFID products from Avery Dennison, AD Miniweb inlays are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment. The RFID Lab at Auburn University has awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in dry, wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

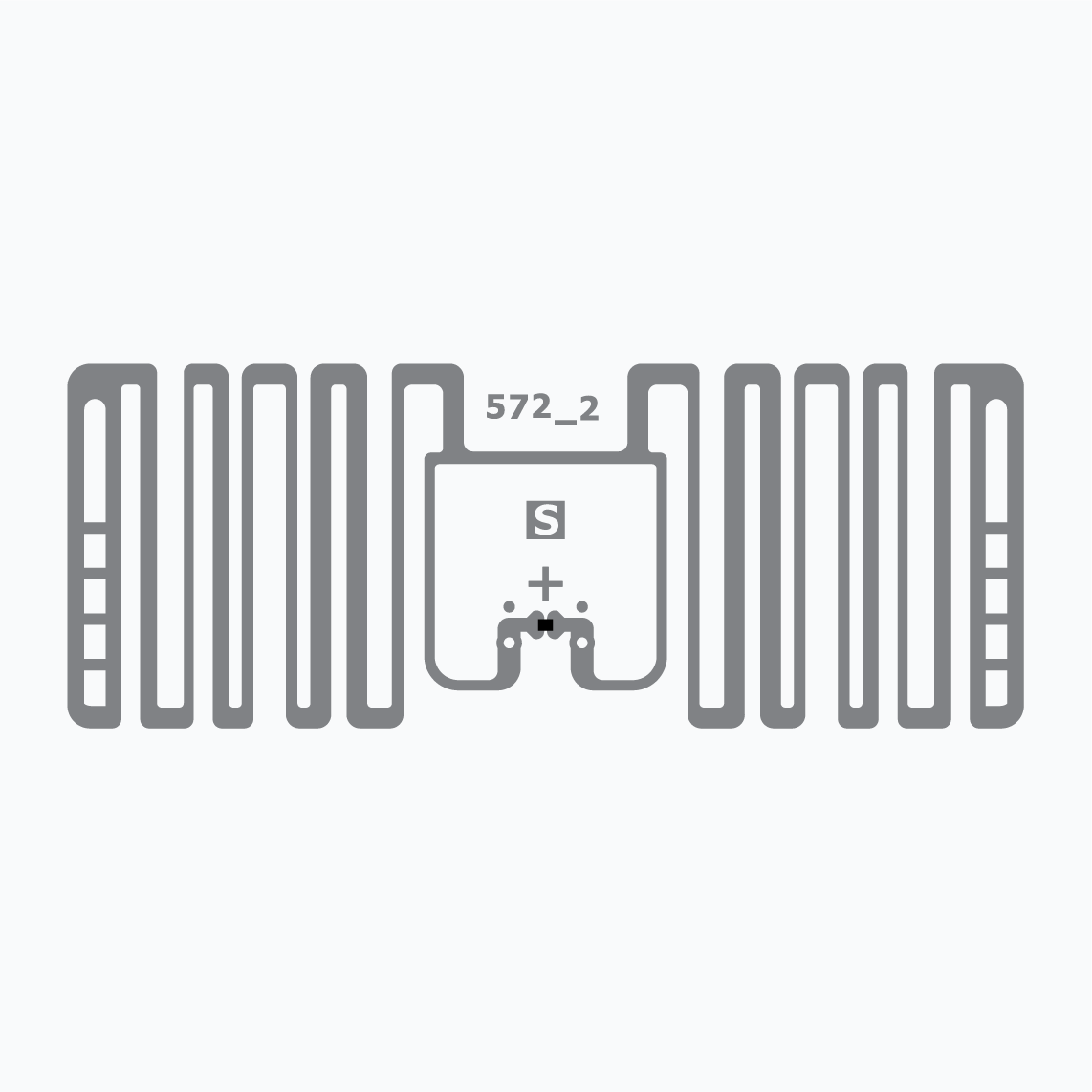

UHF RFID Inlay: Miniweb M730 FCC

AD Miniweb M730/M750 FCC

  • Chip: Impinj M730/750
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.65 x 0.63 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: F, O, Q, W2, W5, W6
  • Product Code:
    Dry inlay 3007568 / IL-603724
    Wet inlay 3007567 / IL-603723
    Label / sticker 3007556 / IL-603714
Data sheet

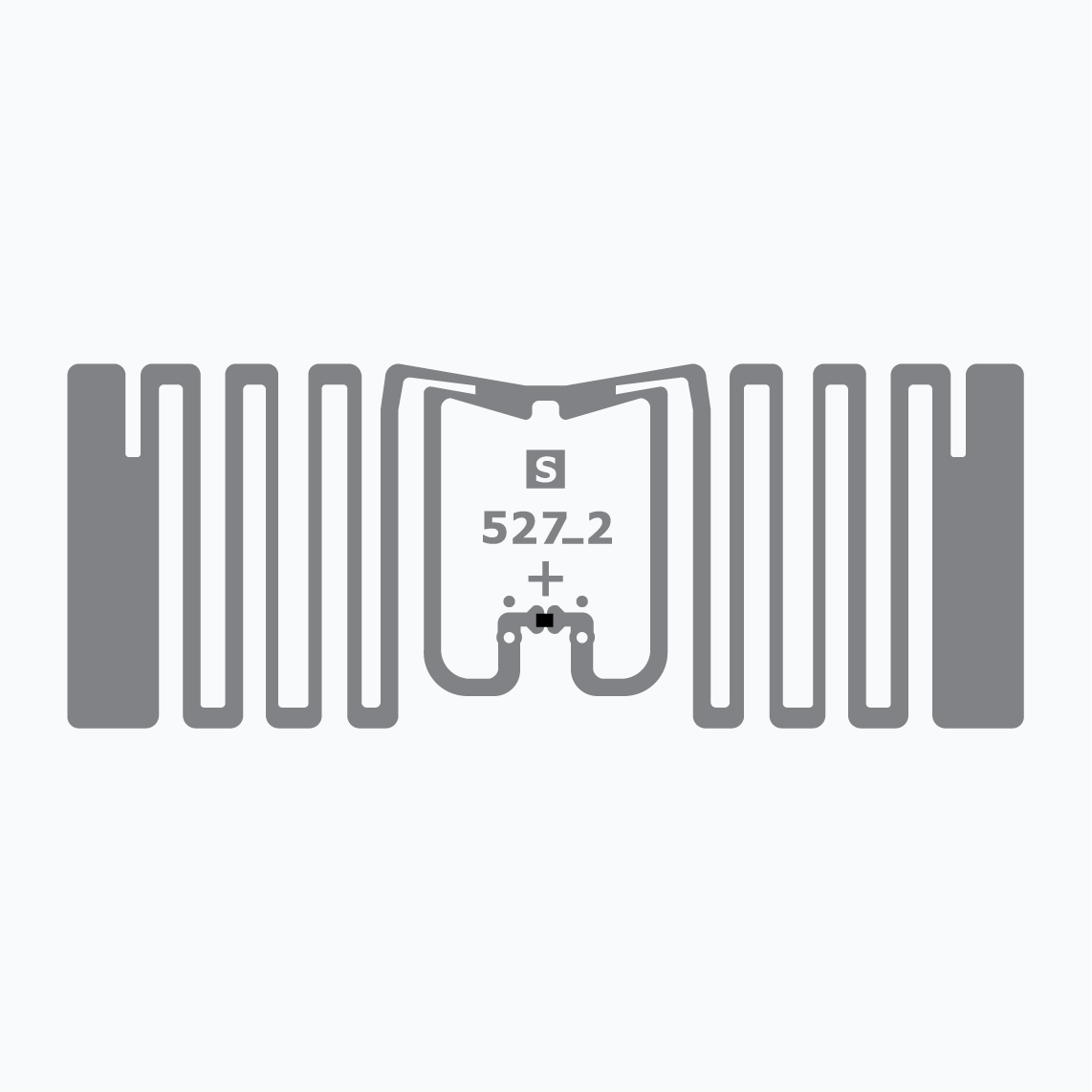

UHF RFID Inlay: Miniweb Global M830

AD Miniweb M830

  • Chip: Impinj M830
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification
  • Product Code:
    Dry inlay IL-610313
    Wet inlay IL-610315
    Label / sticker IL-610316


Data sheet

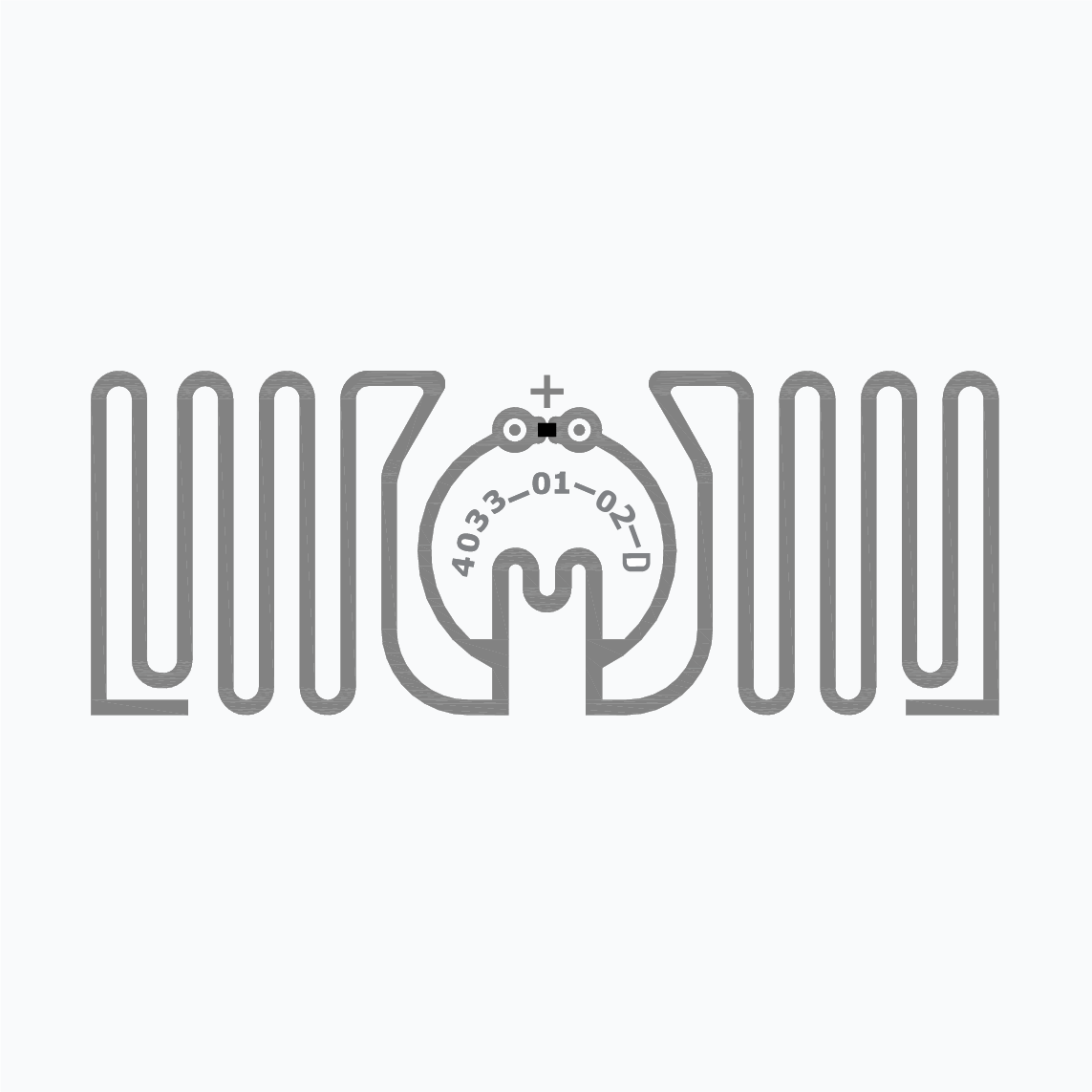

UHF RFID Inlay: Miniweb UCODE 9

AD Miniweb U9 FCC

  • Chip: NXP UCode 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.65 x 0.63 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: F, O, Q, W2, W5, W6
  • Product Code:
    Dry inlay 3008005 / IL-604000
    Wet inlay 3008006 / IL-604001
    Label / sticker 3008017 / IL-604012
    Label (RA-40) IL-612451
Data sheet

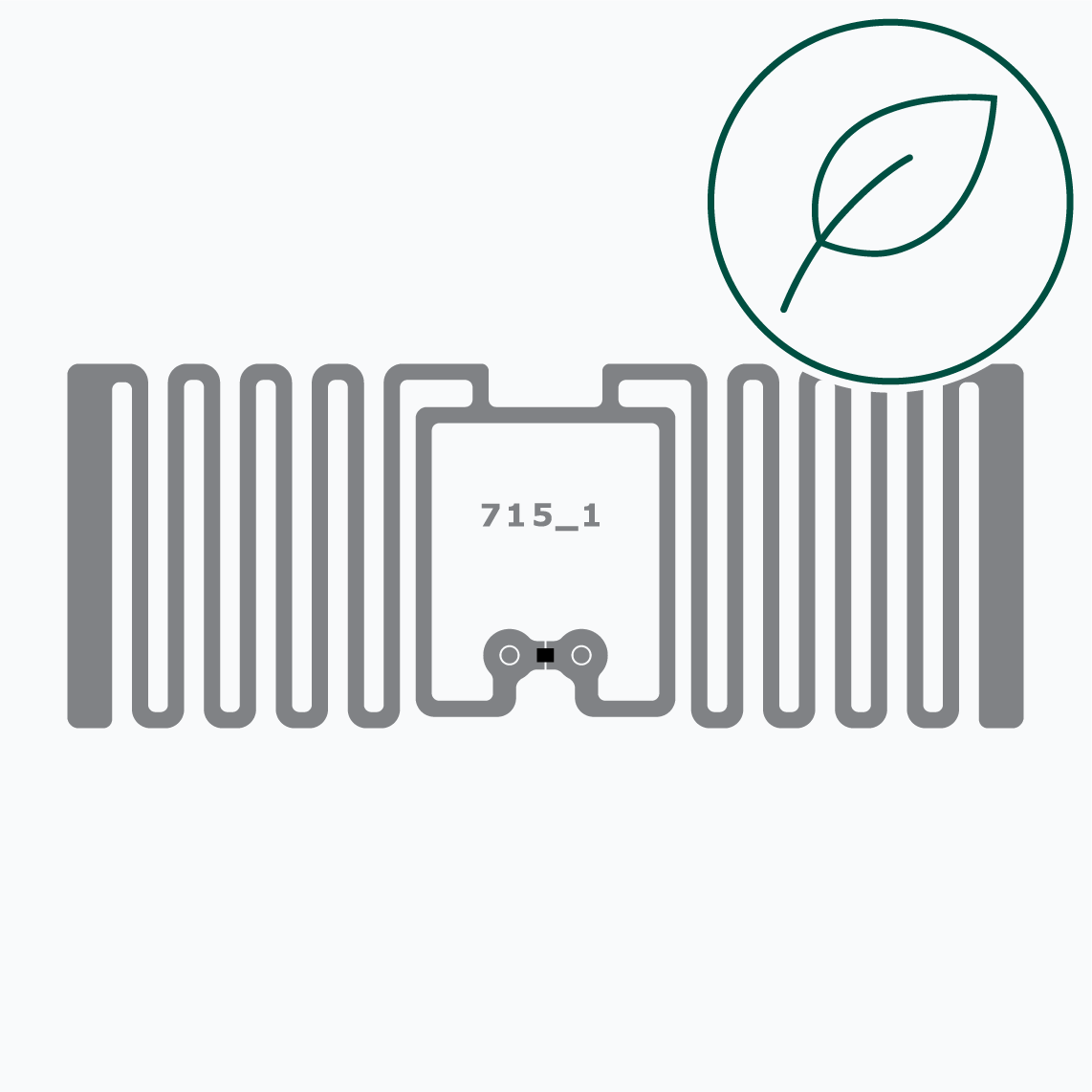

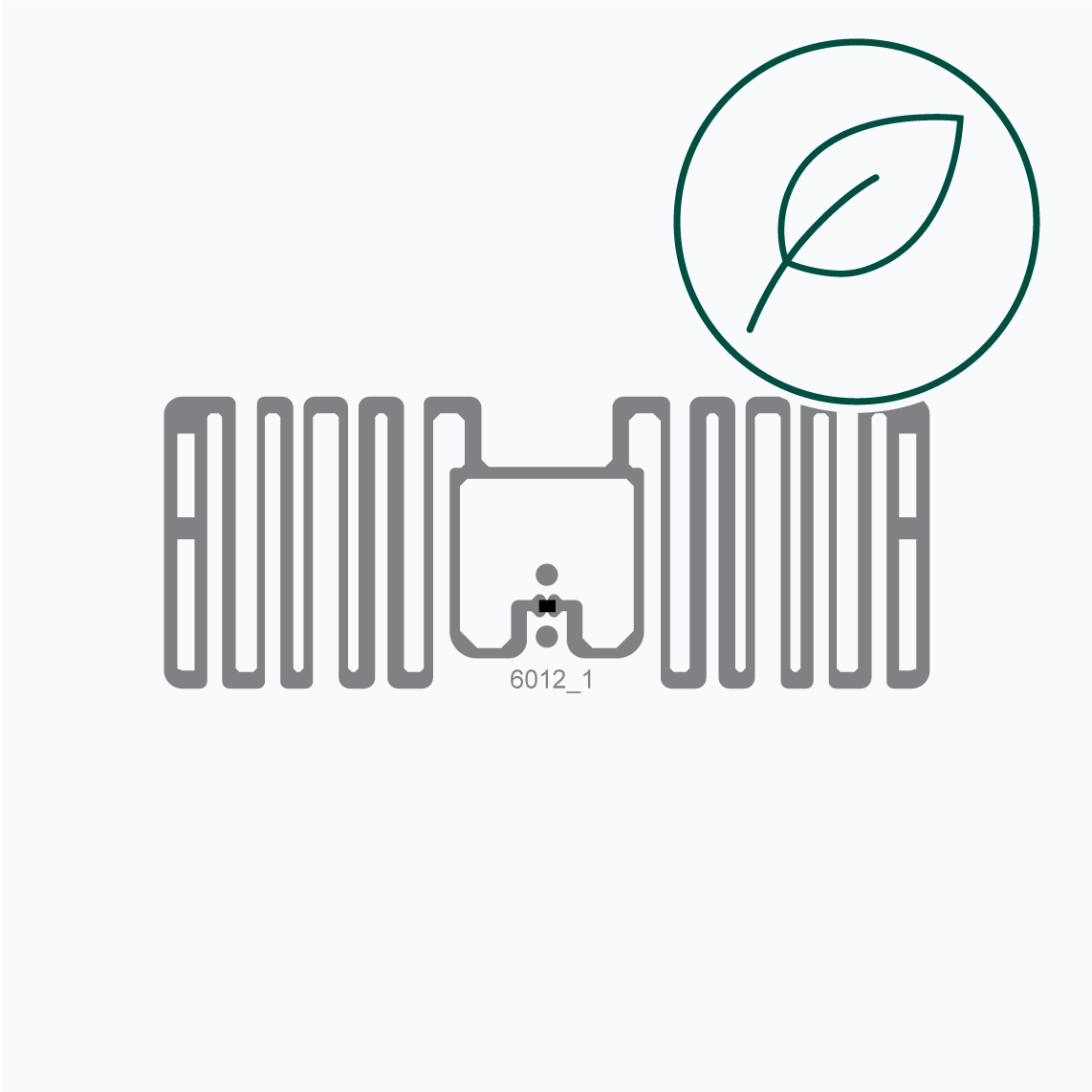

UHF RFID Inlay: AD Miniweb U9 ETSI Pure™

AD Miniweb U9 Pure™

  • Chip: NXP UCode 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.65 x 0.63 in
  • Die cut dimensions:
    45 x 18 mm / 1.77 x 0.17 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: F, I, Q
  • Product Code:
    Dry inlay IL-612452
    Wet inlay IL-612461
    Label / sticker IL-612460
Data sheet
UHF RFID Inlay: Miniweb Global 750

AD Miniweb M730

  • Chip: Impinj M730
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: I, Q
  • Product Code:
    Dry inlay 3007865 / IL-603909
    Wet inlay 3007866 / IL-600035
    Label / sticker 3008131 / IL-600039
    Label / sticker 3008052 / IL-604040
Data sheet

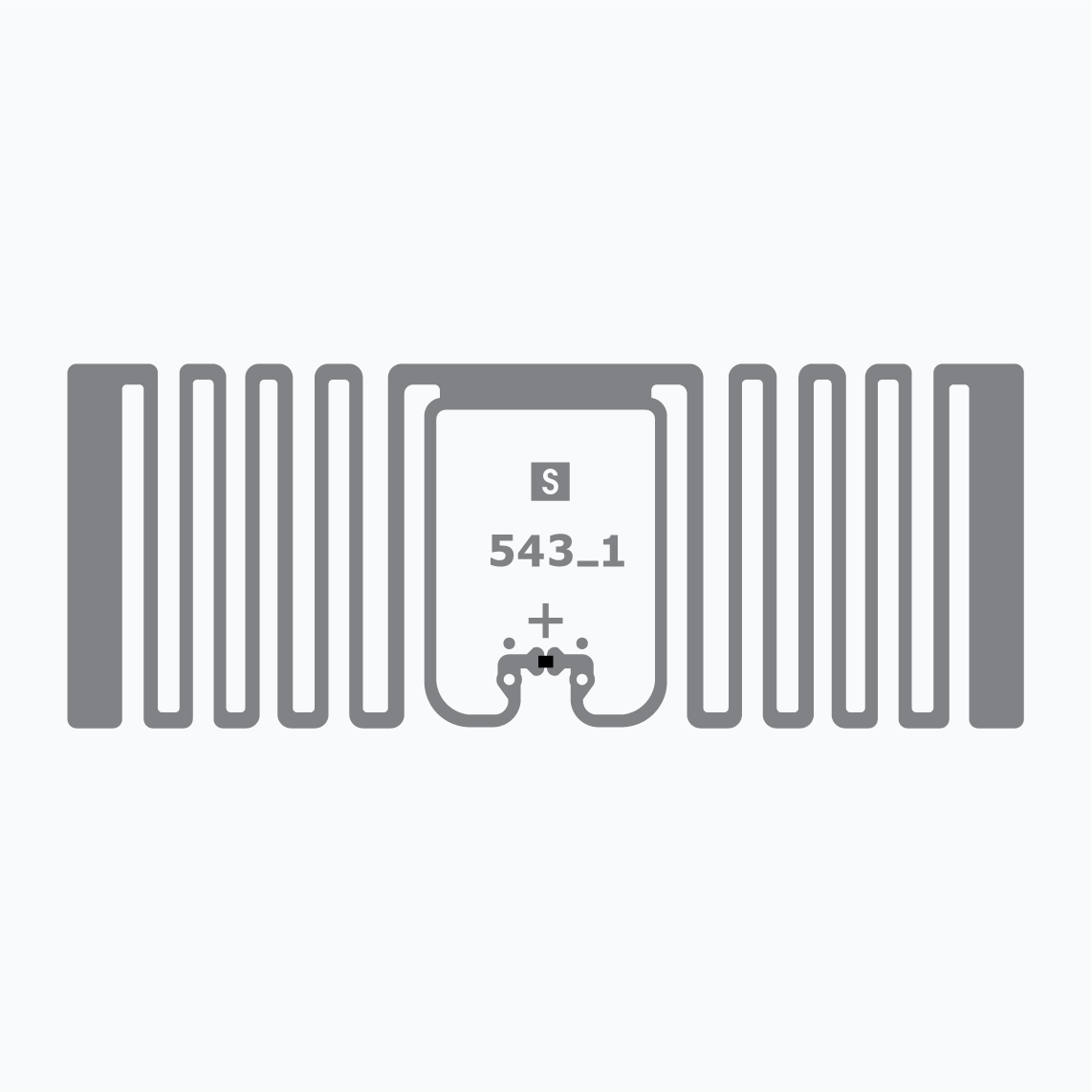

UHF RFID Inlay: Miniweb M830 FCC

AD Miniweb M830 FCC

  • Chip: Impinj M830
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification
  • Product Code:
    Dry inlay IL-612988
    Wet inlay IL-612990
    Label / sticker IL-612993
    Label / sticker IL-612994
    Label / sticker IL-613555
Data sheet

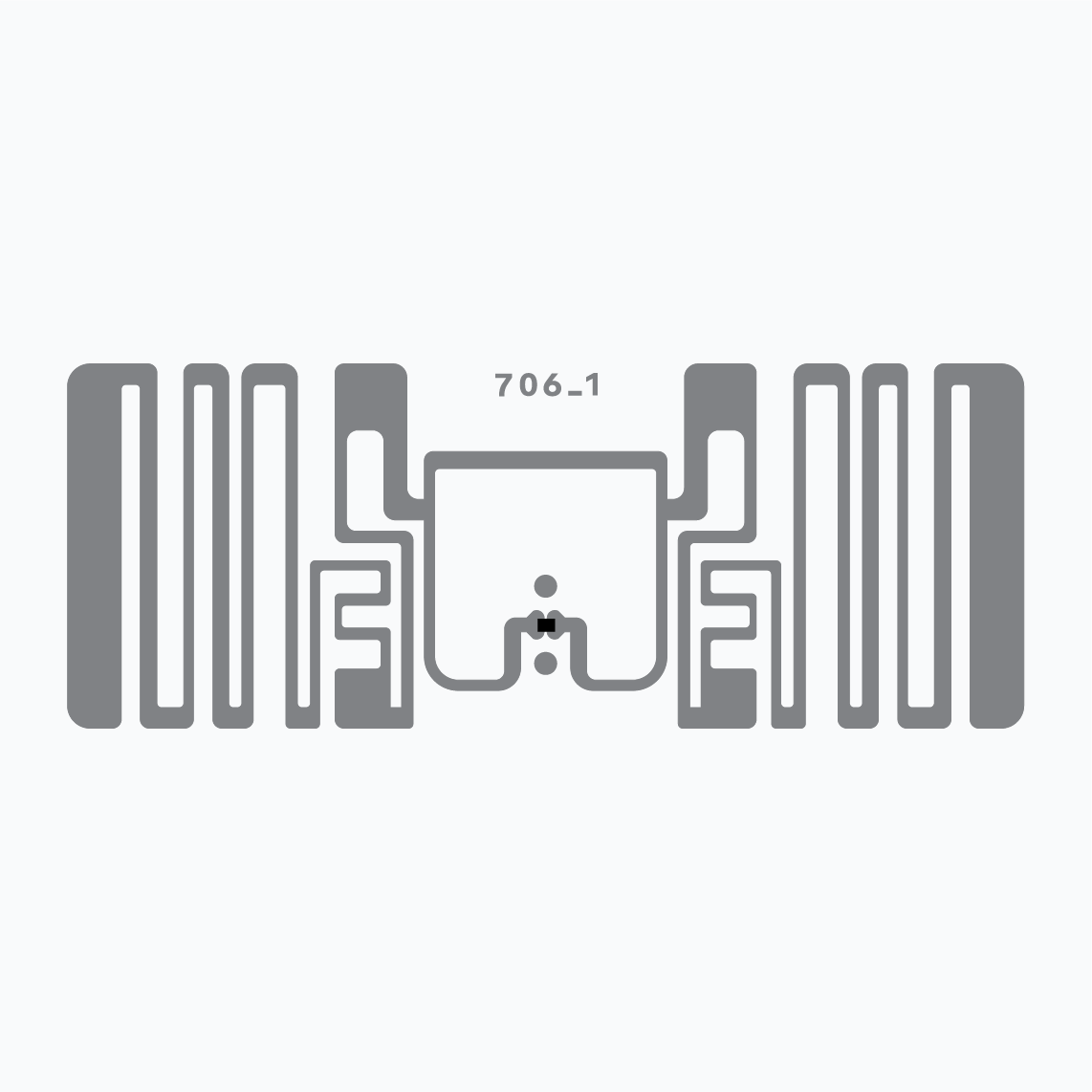

UHF RFID Inlay: Miniweb UCODE 9

AD Miniweb U9 ETSI

  • Chip: NXP UCode 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.70 x 0.70 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: I
  • Product Code:
    Dry inlay 3008395 / IL-604280
    Wet inlay 3008396 / IL-604281
    Label / sticker 3008397 / IL-604282


Data sheet

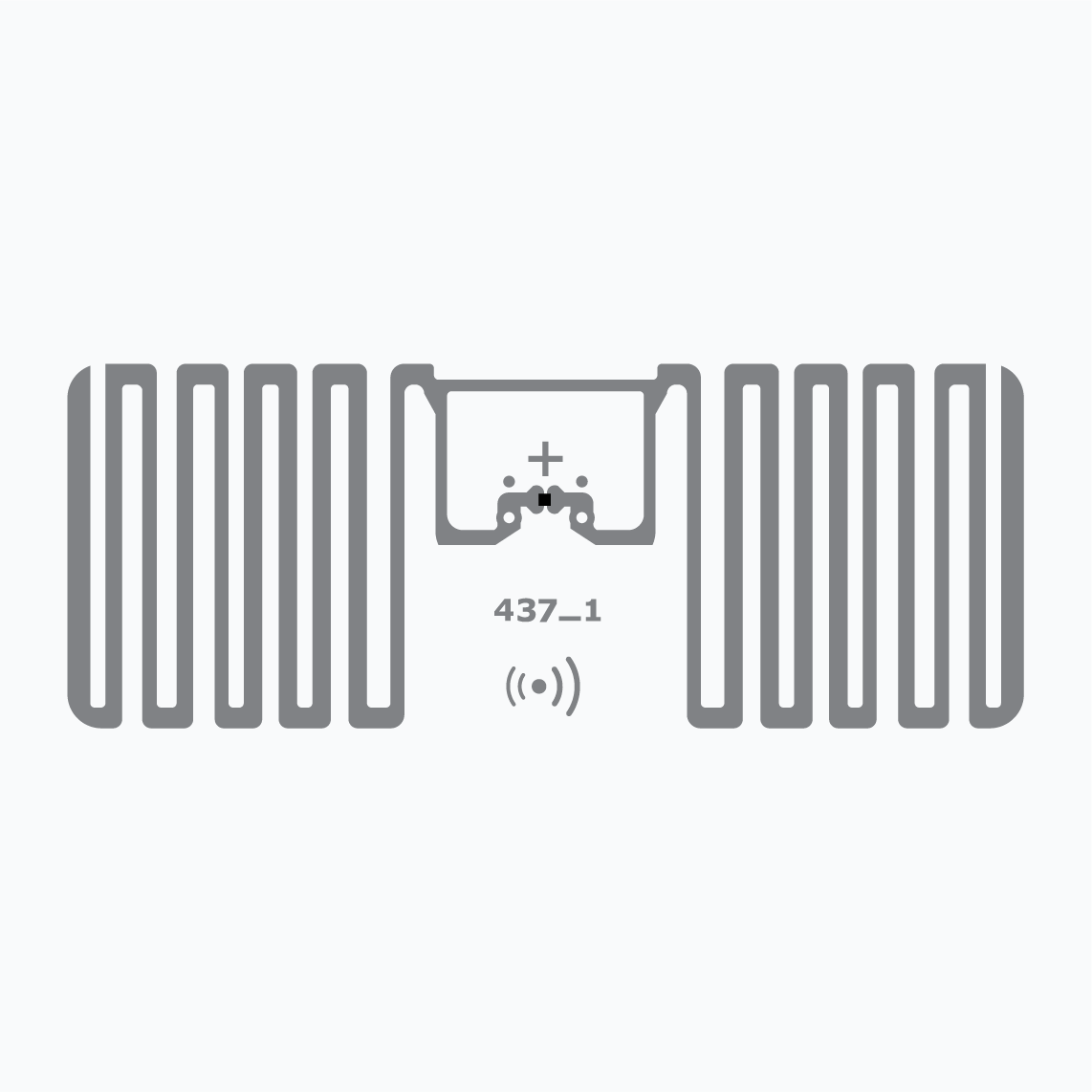

UHF RFID Inlay: Miniweb Global 750

AD Miniweb M750

  • Chip: Impinj M750
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: I, Q
  • Product Code:
    Wet inlay 3007542 / IL-603703



Data sheet

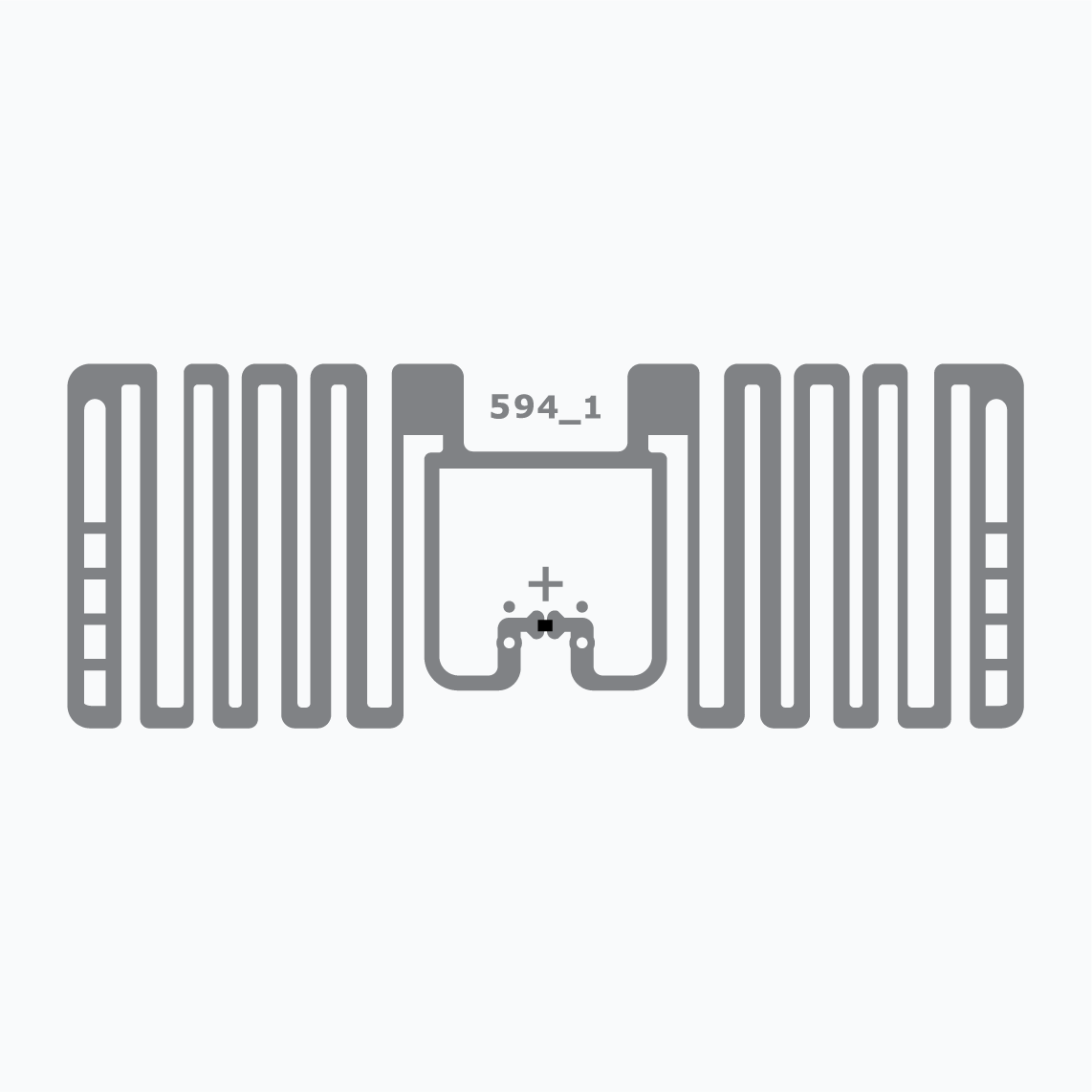

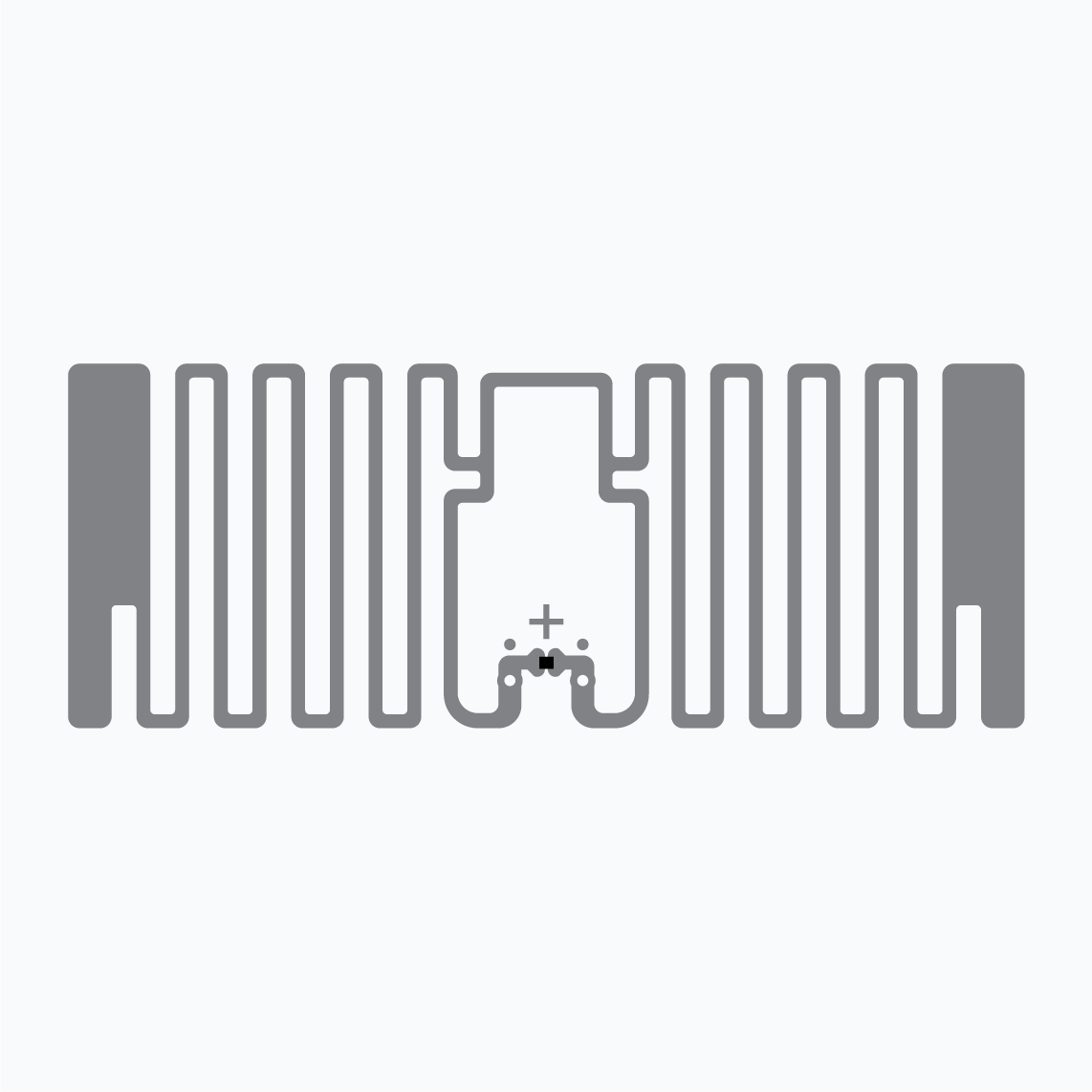

UHF RFID Inlay: Miniweb M830 ETSI Pure

AD Miniweb M830 ETSI Pure™

  • Chip: Impinj M830
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.80 x 0.70 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification
  • Product Code:
    Dry inlay IL-611677
    Wet inlay IL-611667
    Label / sticker IL-611665
    Label / sticker IL-612795

Data sheet
UHF RFID Inlay: Miniweb UCODE 9XM

AD Miniweb U9XM

  • Chip: NXP UCode 9xm
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    42 x 16 mm / 1.70 x 0.60 in
  • Die Cut Dimensions:
    45 x 18 mm / 1.70 x 0.70 in
  • EPC Memory: 256 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • ARC Specification: -
  • Product Code:
    Wet inlay 3009493 / IL-609531




Data sheet
