AD Miniweb U9 ETSI Pure™ [UHF RFID tag and inlay]

UHF RFID Inlay: AD Miniweb U9 ETSI Pure™

Ideal for small apparel labels

Industry segments: Apparel & FashionHealthcareLogistics

AD Miniweb U9 ETSI Pure™ inlays and tags are designed for apparel, retail, industry and supply chain applications, offering excellent performance on difficult-to-tag or low-detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments.

AD Miniweb U9 ETSI Pure™ inlays and tags have a compact size 45 x 18 mm, which can be easily converted into end-application usage. AD Miniweb with the NXP UCODE9 IC, used in retail applications, is the smallest inlay currently available on the market that has passed ARC categories I and K requirements by the RFID Research Center of the University of Auburn. Category I indicates the product is suitable for applications such as home goods and merchandising areas with a greater demand of RF performance than typical retail apparel applications.

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

Sustainability - 100% Plastic Free
AD Miniweb U9 ETSI Pure™ is produced via innovative antenna manufacturing technology where aluminium antenna is made directly on a paper making the products 100% plastic free, and according to an LCA (Life Cycle Analysis) study by an independent institute provide typically 70-90% savings in carbon footprint compared to traditional etching method. The manufacturing process also enables recycling excess materials and reducing the total amount of materials while maintaining the overall performance of the product. Based on extensive testing against PTS-RH 021:97/2012 paper and cardboard recycling method with third party laboratorio shows that standard Pure™ inlays and label are recyclable within the items.

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD Miniweb U9 ETSI Pure™

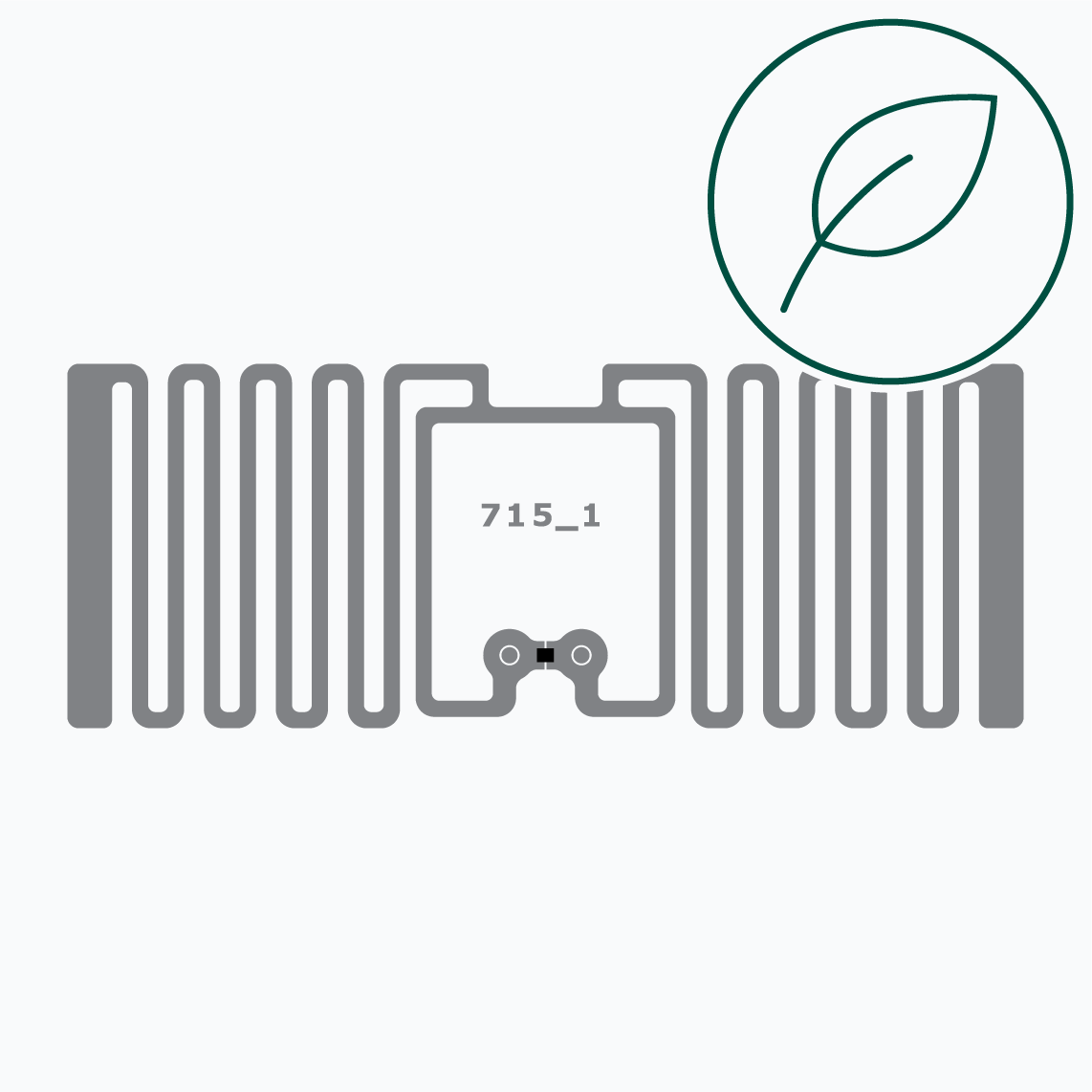

AD Miniweb U9 ETSI Pure™

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    42 x 16 mm / 1.65 x 0.63 in
  • Die cut dimensions:
    45 x 18 mm / 1.77 x 0.17 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: I
  • Coming soon
