Industry segments: Beauty & Personal Care, Events, Sports, Gaming, Food
AD Midas Slim is NFC technology condensed to the max, and represents an excellent option when limited space is available. It is a superior solution for item-level retail, food, and gaming and toys applications – or any other NFC use.

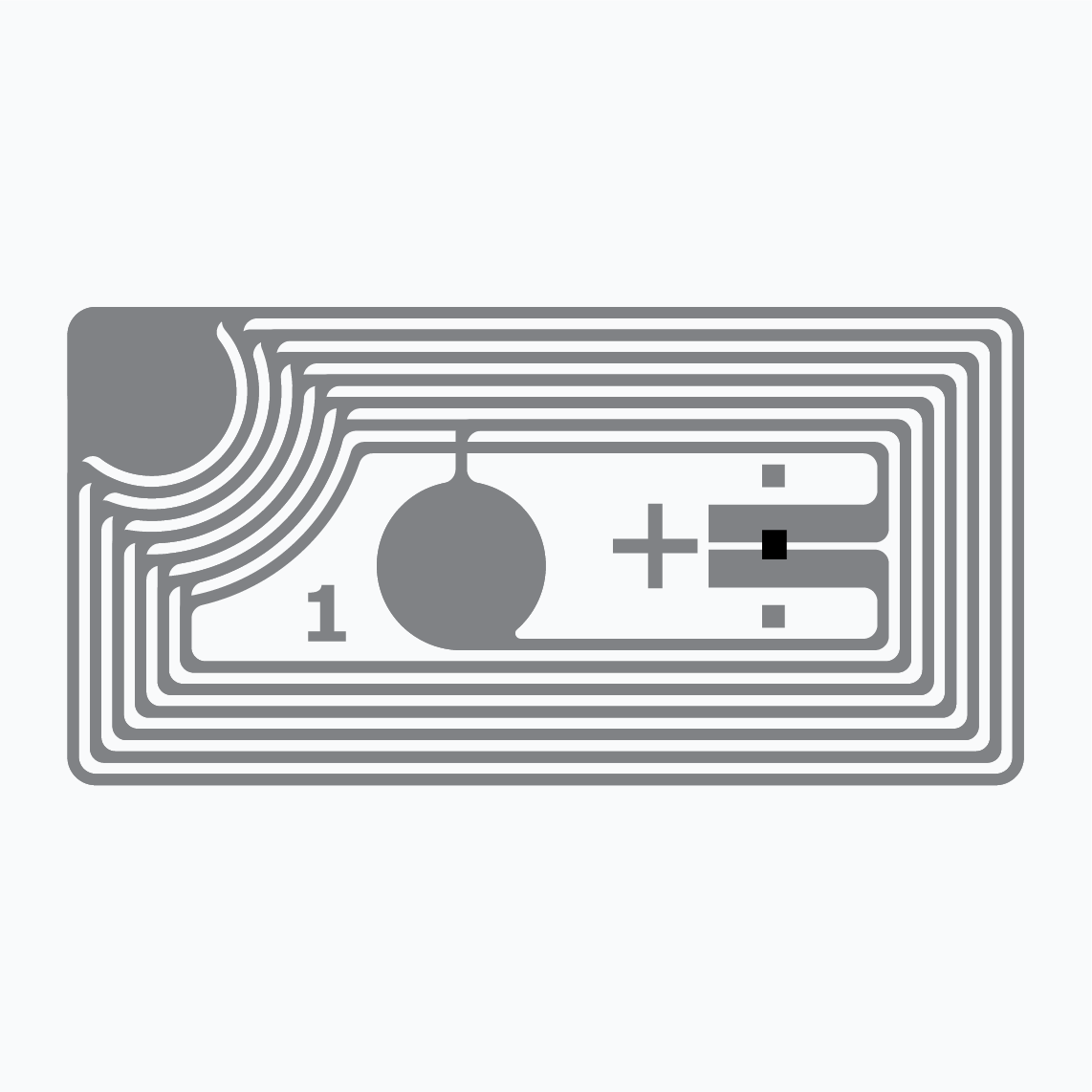

This product is Avery Dennison’s smallest rectangular, aluminum-based NFC product. It is based around NXP’s NTAG213 IC, which offers 144 bytes of user memory, and comes with unique ID (UID) mirror functionality, which enables the chip serial number to be mirrored as part of its encoded URL address. This feature allows every tag to be seen and read as unique from the application perspective, without requiring users to encode inlays with different numbers.
Currently available as wet and dry inlays with the NTAG213 chip, Midas Slim inlays are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment. They are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University, which awarded Avery Dennison its first ever ARC accreditation for overall quality.
Technical Features
|
|
|---|---|
| Chip |
NXP NTAG213 |
| Frequency Band |
NFC 13.56 MHz |
| Antenna Dimensions | 17 x 8,5 mm / 0.669 x 0.335 in |
| Die Cut Dimensions | 19 mm x 10,5 mm / 0.748 x 0.413 in |
| EPC Memory | n/a |
| TID Memory | available |
| Product Code | Dry+ inlay 3007522 / IL-603686 |
| Wet+ inlay 3007487 / IL-603664 |
Please find a comprehensive overview of all features in the data sheet.
