AD IdentiFresh™ Inlay Series [UHF RFID tags and inlays]

UHF RFID Inlay: AD Fresh Food

Inlays designed for Fresh Food applications

Industry segments: Food and Beverages

The AD IdentiFresh™ Inlay Series achieve high-performance item-level data capture across fresh food categories to:

  • Ensure data confidence: Engineered to capture accurate read rates on the most difficult-to-tag items, including densely stacked items.
  • Prevent operational disruption: Compact inlays were designed to fit into existing label formats, eliminating the need to change current labeling processes.
  • Enable high-speed operations: Global production supports high-volume source tagging and in-line data management at food industry speeds.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison, AD IdentiFresh™ Inlay Series are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

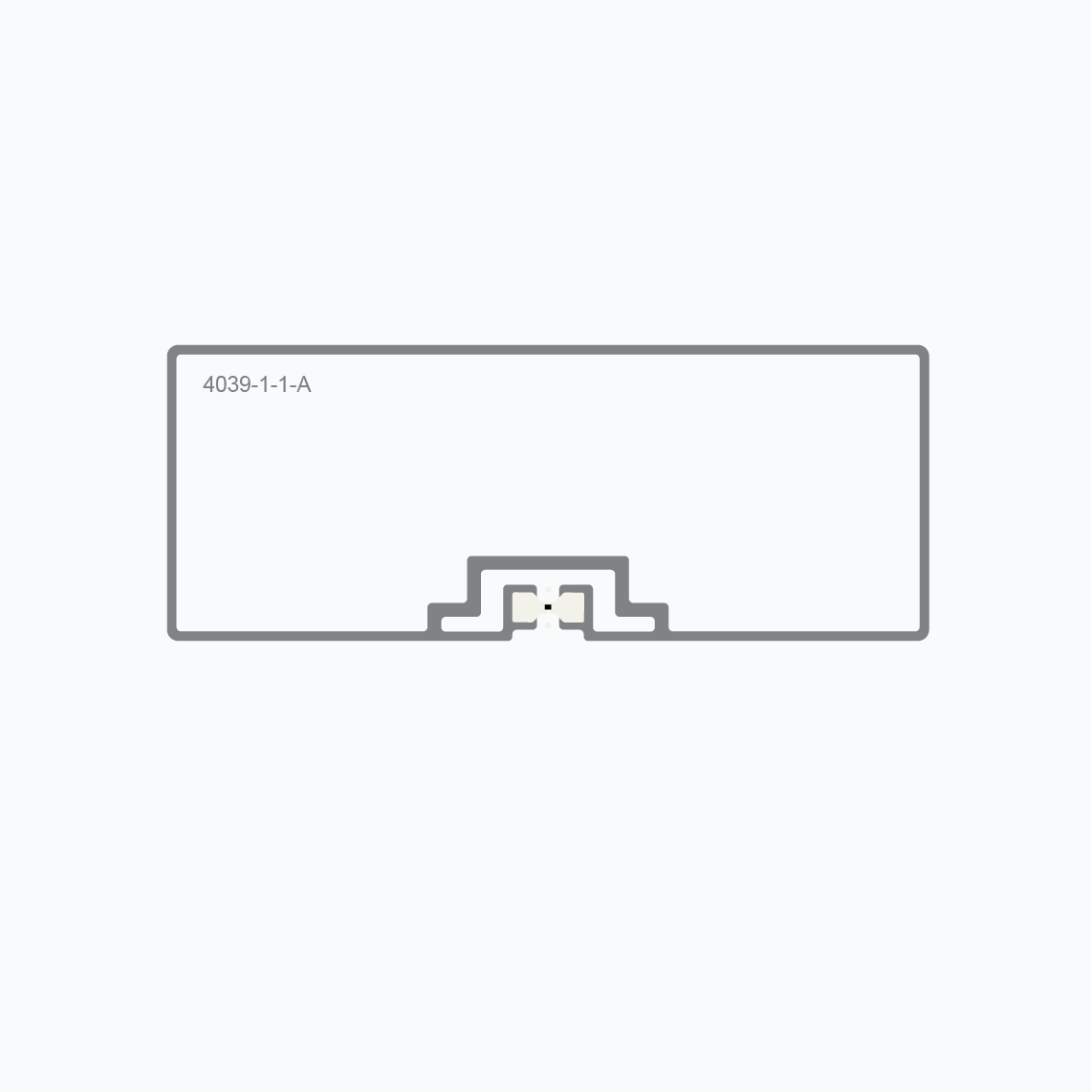

AD Saucer M830 MR

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    60 x 9 mm / 2.36 x 0.35 in
  • Die cut dimensions:
    63 x 20 mm / 2.48 x 0.79 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label/sticker IL-614177


Data sheet

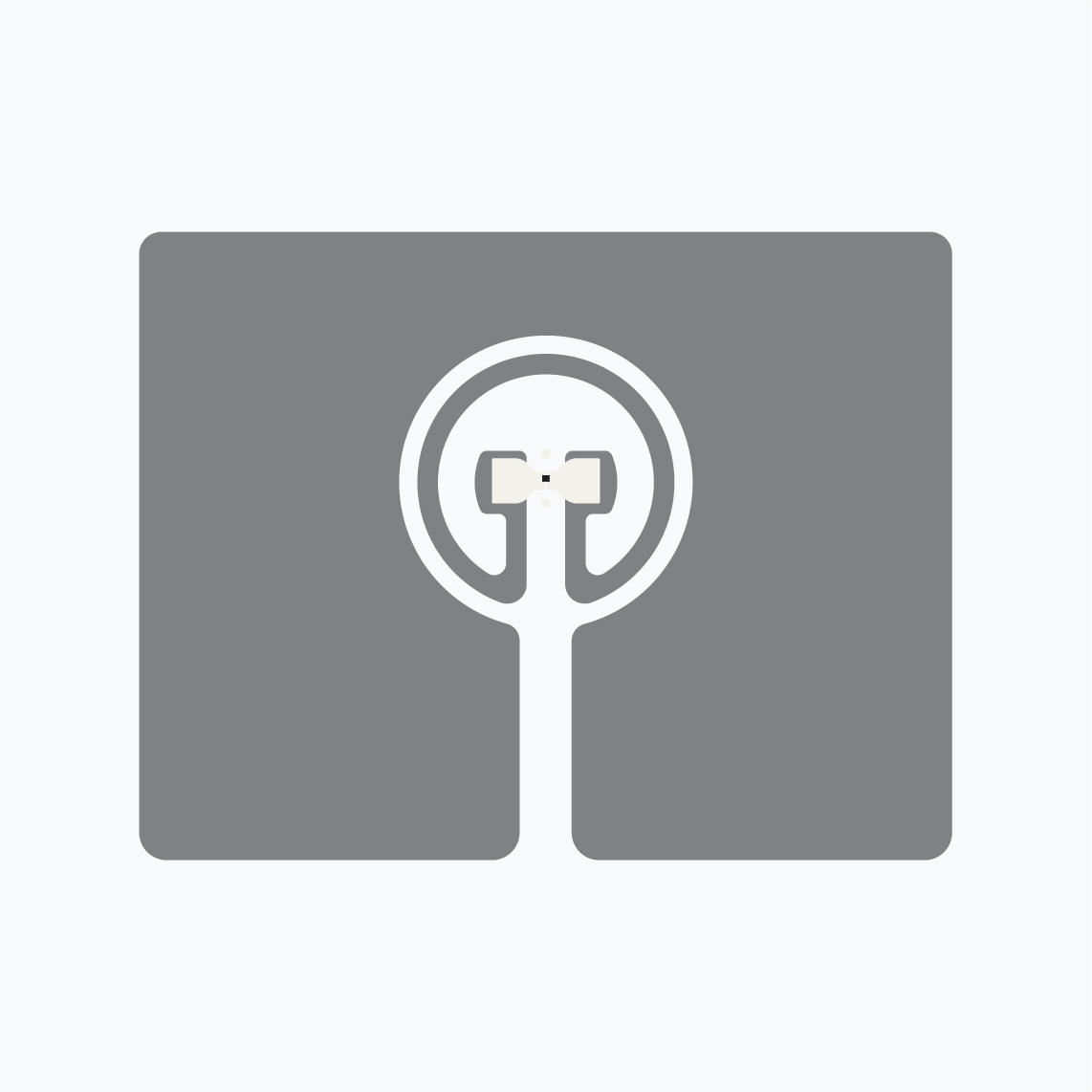

AD Charge M830

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    68 x 26.4 mm / 2.68 x 1.04 in
  • Die cut dimensions:
    71 x 29.4 mm / 2.8 x 1.16 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay IL-613862
    Wet inlay IL-613865
    Label/sticker IL-613860
Data sheet

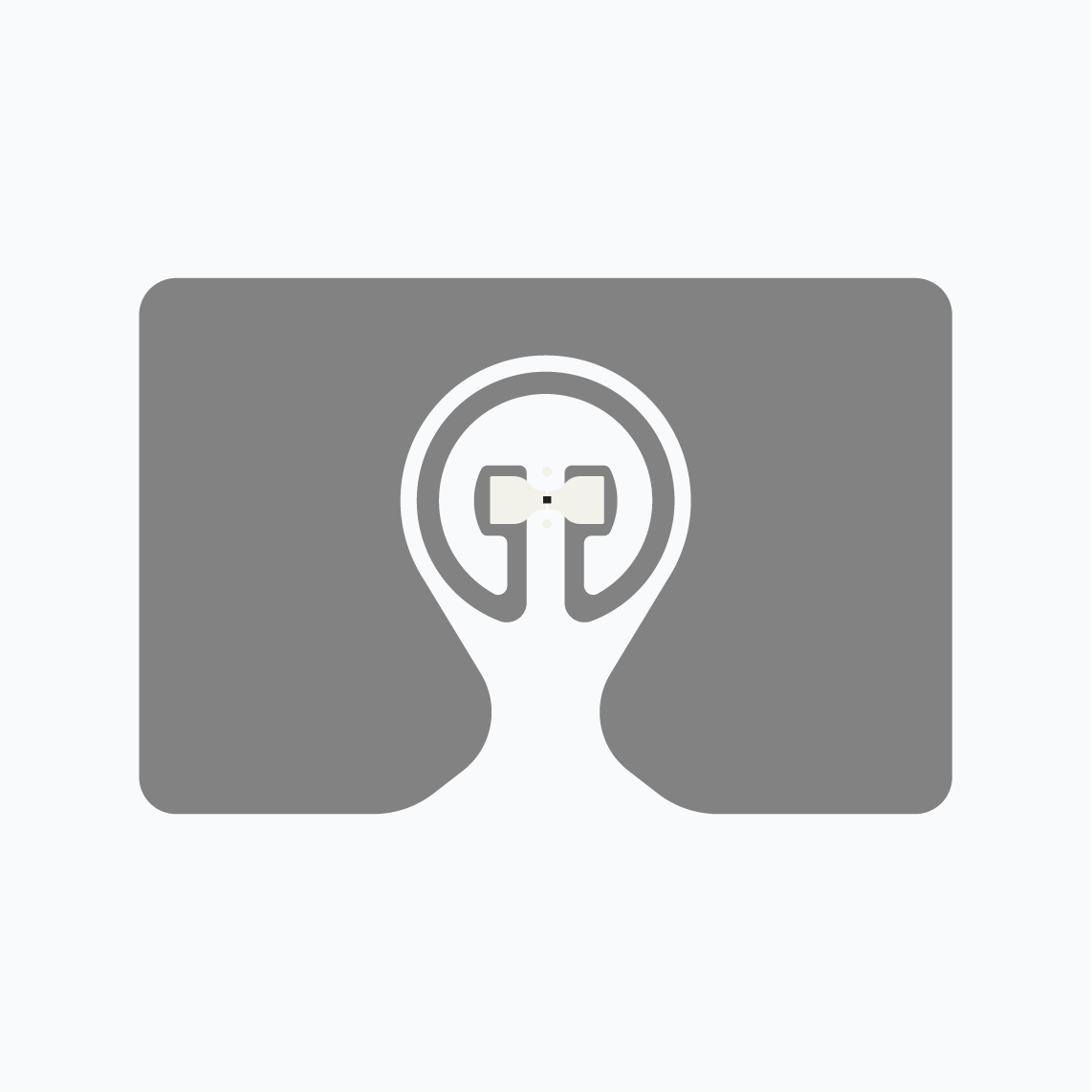

AD Power Mini M830

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    44 x 34 mm / 1.73 x 1.34 in
  • Die cut dimensions:
    47 x 37 mm / 1.85 x 1.46 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay IL-614815
    Wet inlay IL-614816
    Label/sticker IL-614817
Data sheet

AD Power Mini M830 MR

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    44 x 29 mm / 1.73 x 1.14 in
  • Die cut dimensions:
    47 x 32 mm / 1.85 x 1.26 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label/sticker IL-614898


Data sheet

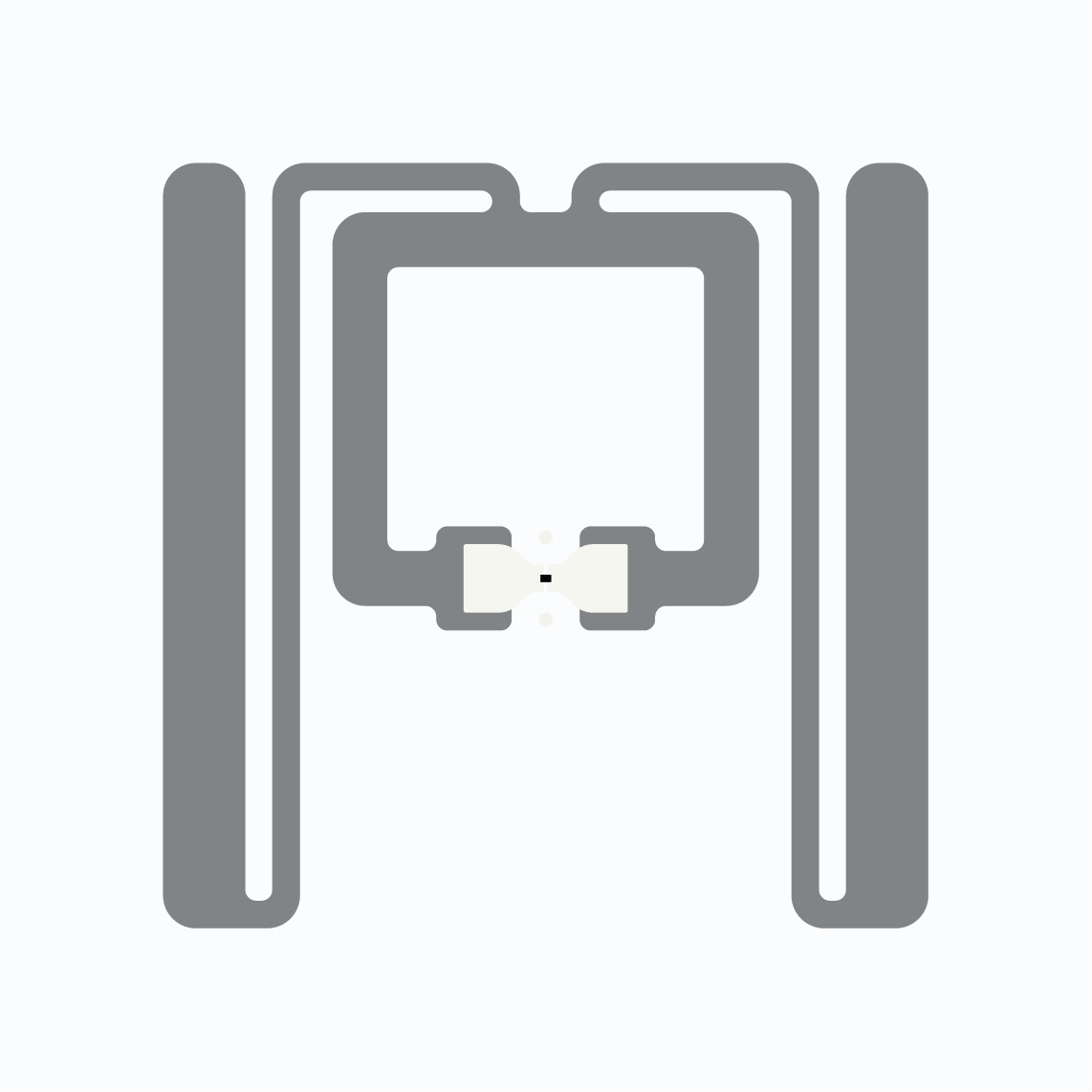

AD Crunch M830

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    28 x 28 mm / 1.1 x 1.1 in
  • Die cut dimensions:
    30.5 x 30.5 mm / 1.2 x 1.2 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay IL-614812
    Wet inlay IL-614813
    Label/sticker IL-614814
Data sheet

AD Crunch M830 ER

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    28 x 28 mm / 1.1 x 1.1 in
  • Die cut dimensions:
    30.5 x 30.5 mm / 1.2 x 1.2 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label/sticker IL-613405


Data sheet
