AD Gleam [UHF RFID tag and inlay]

Optimum read ranges for small item level tagging

Industry segments: Beauty & Personal Care, Other Retail

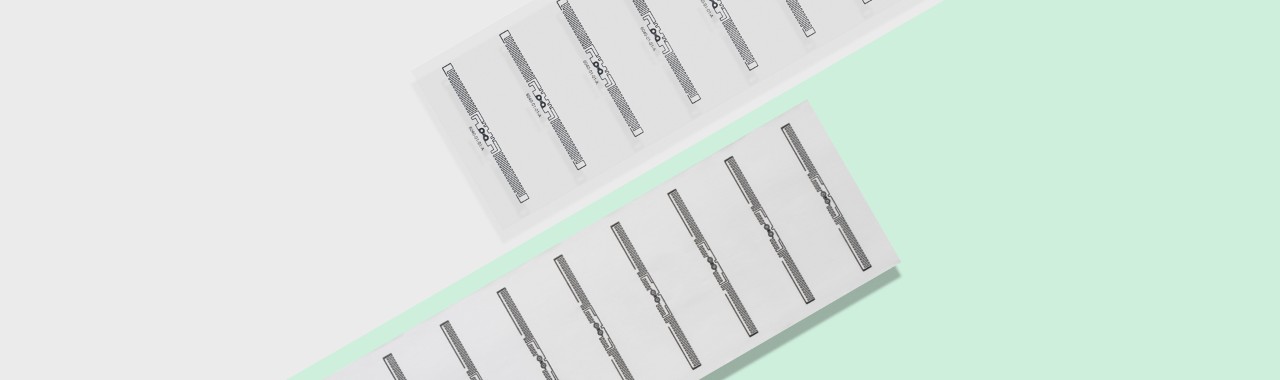

AD Gleam inlays from Avery Dennison, are engineered for tagging a diverse array of items, including beauty, personal care, fashion, jewelry, and other general merchandise. Operating on the UHF frequency band, these inlays boast a globally designed 60 x 4 mm antenna. Their slim, rectangular shape makes them highly versatile for retail-focused uses, helping to boost inventory accuracy, improve supply chain responsiveness, and increase channel visibility.

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

AD Gleam M830

Chip: Impinj M830
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
60 x 4 mm / 2.36 x 0.16 in
Die cut dimensions:
64 x 6 mm / 2.52 x 0.24 in
EPC memory: 128 bit
TID memory: 96-bit / 48-bit unique serial number
ARC specification
Product code:
Dry inlay IL-613778
Wet inlay IL-613776
Label/sticker IL-613762

Data sheet

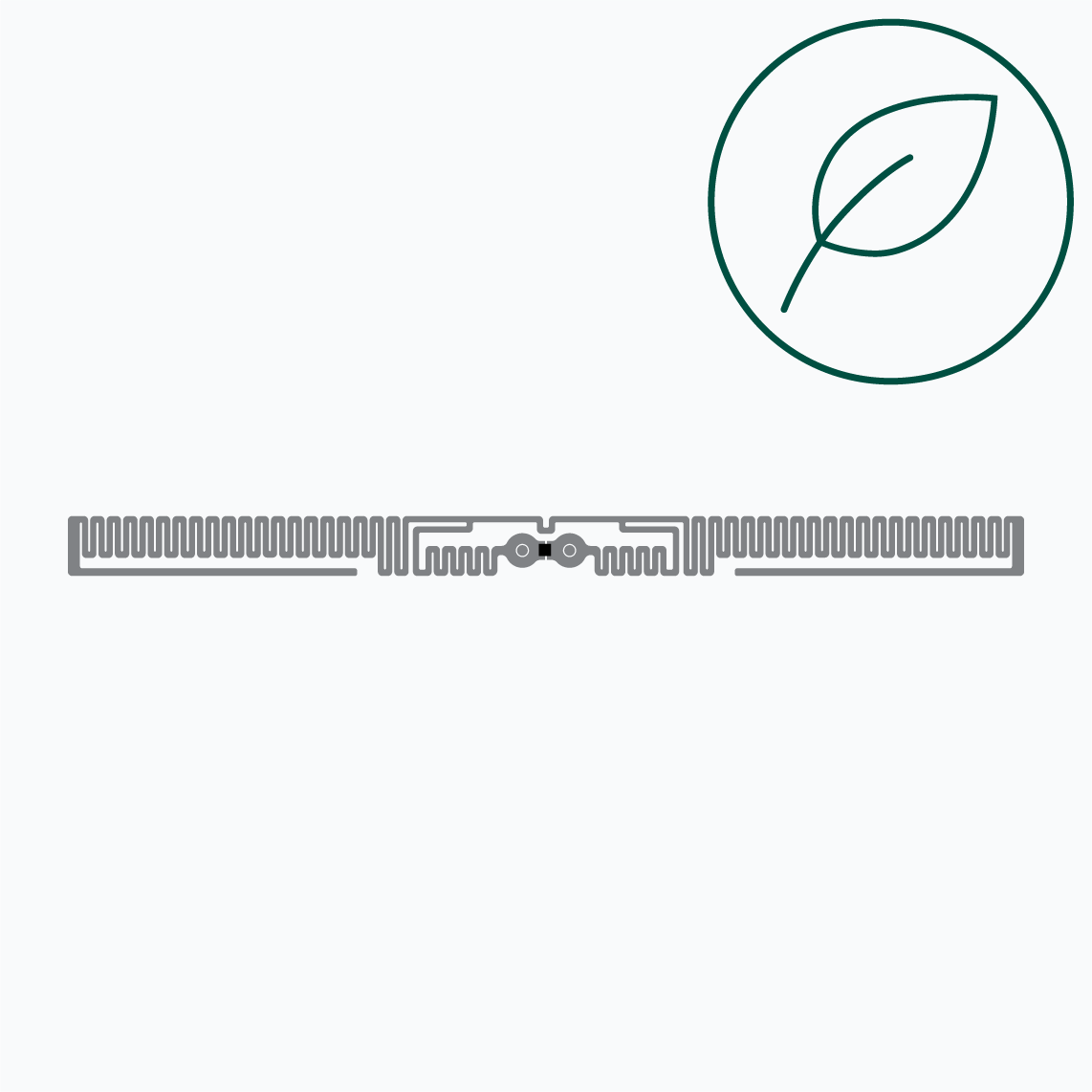

AD Gleam M830 Pure™

Chip: Impinj M830
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
64 x 4 mm / 2.52 x 0.16 in
Die cut dimensions:
68 x 6 mm / 2.68 x 0.24 in
EPC memory: 128 bit
TID memory: 96-bit / 48-bit unique serial number
ARC specification
Product code:
Dry inlay IL-613602
Wet inlay IL-613604
Label/sticker IL-613605

Data sheet
