AD G7  [UHF RFID tag and inlay]

UHF RFID Inlay: AD G7 U7XM

Enhancing automotive tagging with durable tag for windshields

Industry segments: Automotive

Designed for automotive applications, AD G7 inlays and tags are tailored for passenger vehicle usage, especially with non-metallic solar films on car windshields. Featuring an anti-tamper design with a fragile antenna for additional safety, AD G7 offers exceptional performance when applied externally, enduring harsh environmental conditions such as UV exposure and rain. Additionally, AD G7 is ideal for toll payment (Single Lane Gantry Toll Collection) and vehicle tracking applications.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management. This ensures a reliable and state-of-the-art product that meets a variety of application needs, where high performance is a critical parameter.

Please find a comprehensive overview of all features in the data sheet.

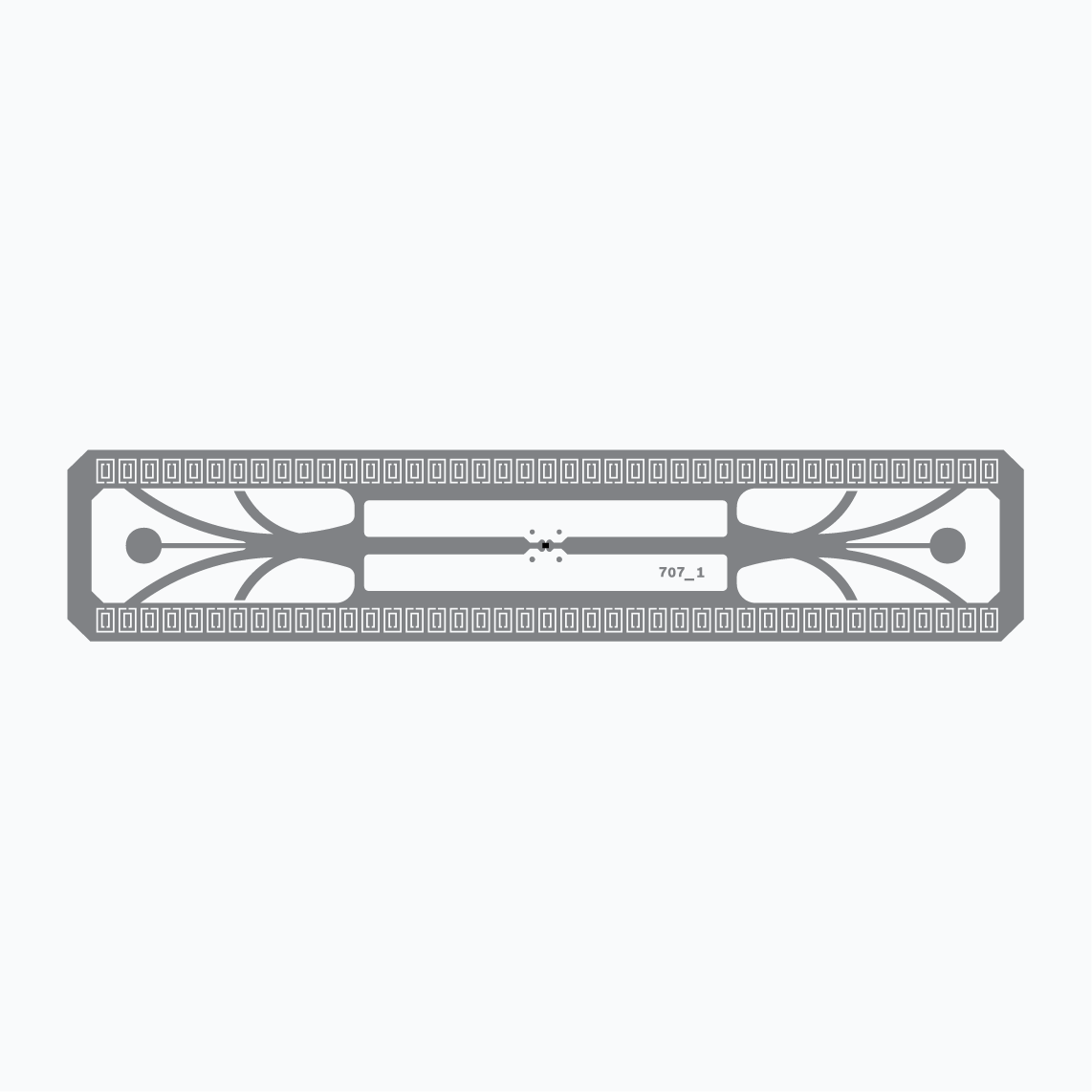

UHF RFID Inlay:  AD G7 U7XM

AD G7 U7XM

  • Chip: NXP UCODE 7XM
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    100 x 20 mm / 3.937 x 0.787 in
  • Die cut dimensions:
    106 x 26 mm / 4.173 x 1.024 in
  • EPC memory: up to 448-bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Wet  inlay IL-611904
