AD Enforce U9  [UHF RFID tag and inlay]

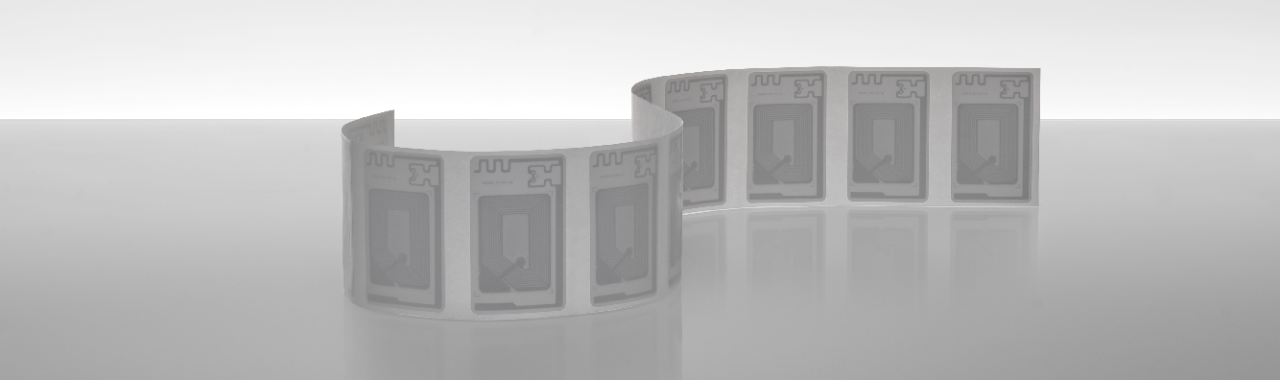

UHF RFID Inlay: AD Enforce U9

Dual UHF + EAS Combo label

Industry segments: Apparel & Fashion


AD Enforce U9 [ETCHED PET DCA] Dual UHF + EAS Combo Label was developed to expand Avery Dennison Smartrac´s Combotag portfolio, specifically focusing on optimizing size for greater application versatility. This unique dual-technology label incorporates a UHF RFID inlay and an Electronic Article Surveillance (EAS) tag into a single, compact die-cut label (65 x 40mm). The globally tuned design provides essential item-level tracking capabilities via UHF RFID, coupled with a secondary loss prevention functionality (EAS).

This combination is suitable for a wide range of retail products, including both Apparel and Household items. Furthermore, the inlay has been validated by the Auburn University ARC Program, passing Spec I.

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD Enforce U9

AD Enforce U9

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    62 x 37mm / 2.44 x 1.46 in
  • Die cut dimensions:
    65 x 40 mm / 2.56 x 1.57 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification
  • Product code:
    Label/sticker IL-613800
