AD Electrify [UHF RFID tag and inlay]

UHF RFID Inlay: AD Electrify M850

Excellent performance in high density, close proximity retail environments

Industry segments: Apparel and Fashion, Other Retail

AD Electrify inlays are designed to excel in high density, close proximity conditions often found in a retail apparel environment. These inlays deliver exceptional performance on the warehouse floor, enabling the rapid and accurate scanning of thousands of tightly packed garments in high-stacked cartons and pallets. In turn, retailers using this inlay are able to manage greater inventory levels than ever while maintaining precise tracking.

AD Electrify inlays provide outstanding global performance in die cut footprint of 73  x 17.5 mm / 2.874 x 0.688 in

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.  Like all RFID products from Avery Dennison, AD Electrify inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD Electrify M850

AD Electrify M850

  • Chip: Impinj M850
  • Operating frequency:
    UHF (860-960 Mhz)

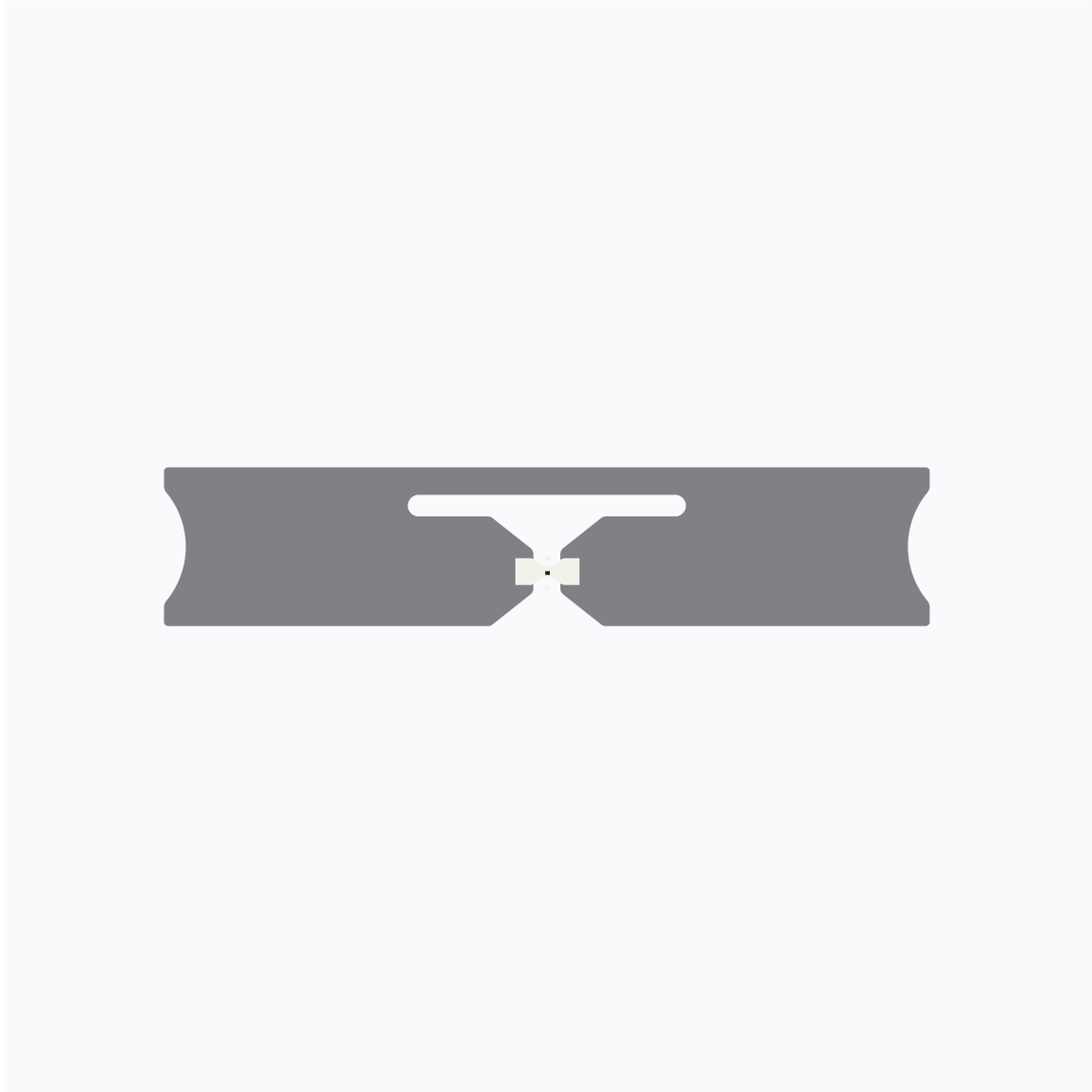

  • Antenna dimensions:
    70 x 14.50 mm / 2.76 x 0.57 in
  • Die cut dimensions:
    73 x 17.50 mm / 2.874 x 0.688 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC Specification guide
  • Product code for Strap Attach (SA)
    Dry+ inlay  IL-610610
    Wet inlay  IL-610612
    Label/sticker  IL-610614
