AD Dura 2.0 [UHF RFID tag and inlay]

Durable, robust and versatile RFID inlay reinforcement solution for harsh environments

Industry segments: Beauty & Personal Care, Automotive, Healthcare, Industrial Applications, Logistics

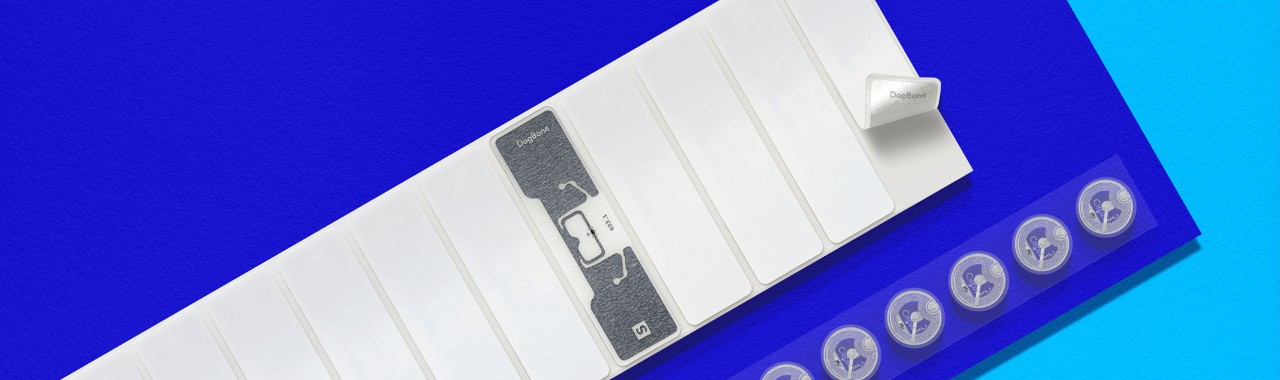

AD Dura 2.0 is a reinforced label solution that can be used in conjunction with most AD RFID UHF and HF/NFC inlay designs. It’s durable, robust, and tested for washing and heat resistance, vibration, mechanical shock & water resistance, and therefore suitable for harsh environments. The AD Dura 2.0 label is compatible with RFID printers, and a synthetic thermal transfer face material is available as an option. The AD Dura 2.0 is currently available with either UHF or HF/NFC RFID inlay and the delivery formats include dry, wet or label format.

General UHF RFID Applications:

• Supply chain transparency and optimization - pallet & Returnable Transportation Item (RTI) tagging
• Inventory accuracy
• Loss prevention
• Self checkout and easy & quick return handling (no re-tagging)
• Circulation

NFC RFID Applications:

• Customer engagement and experience
• Brand loyalty and protection
• Product authentication

Durability and robustness:

• Water resistance: IP68 tested
• Mechanical shock: EN60068-2-27 tested
• Vibration: EN60068-2-6 tested
• Washing resistance: Tested 60 cycles, 60°C washing and tumble dry (ISO6330 and 5A ISO 6330 : 1984)
• Heat resistance: tested 160°C from both sides, 20 seconds

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.
