AD Dot  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-Dot R6-P

The ideal solution for small item-level industry applications

Industry segments: Industrial Applications

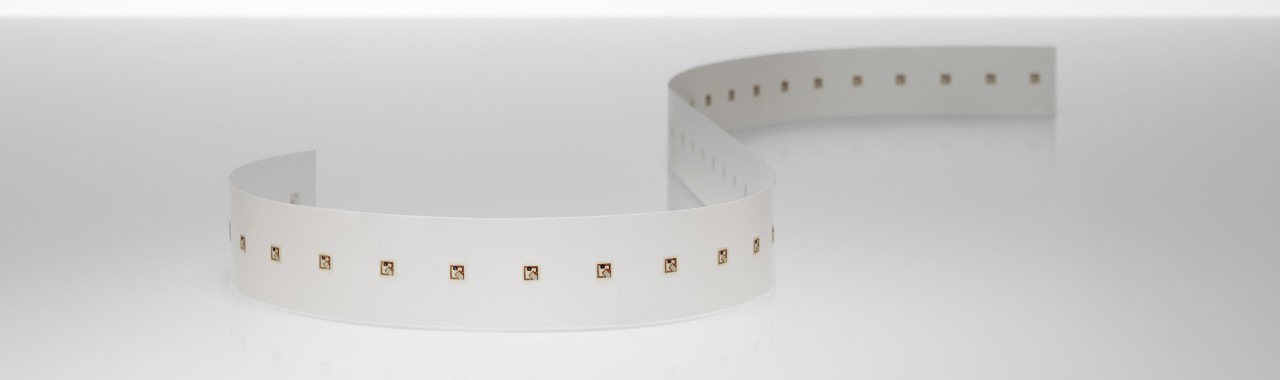

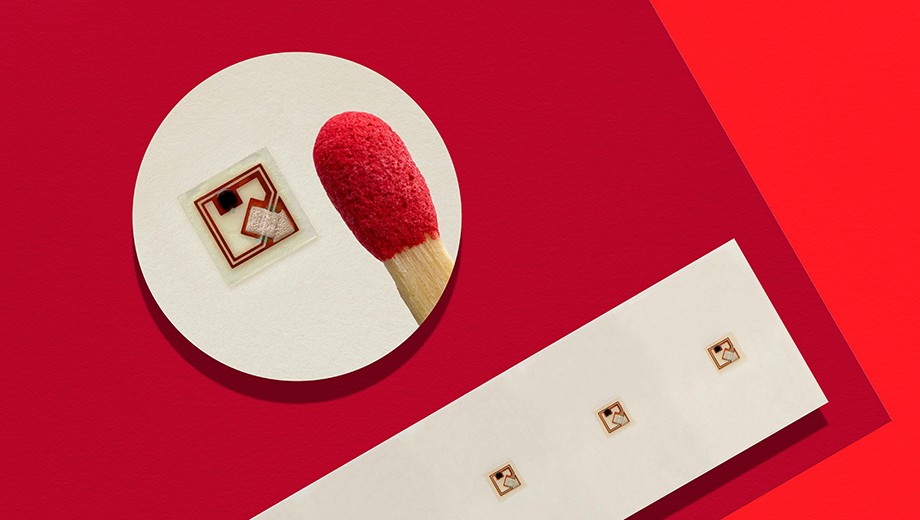

Our AD Dot inlays and tags are purpose-built for item-level identification where a small footprint is essential. Compact yet highly reliable, they are the perfect fit for smaller industry applications.

Delivering unmatched performance for small and difficult-to-tag items, AD Dot products ensure excellent RF stability in a miniature form factor.

The AD Dot family is available in two versions:

  • AD Dot R6-P (3 × 3 mm) – manufactured with copper
  • AD Dot5 U9 (5 × 5 mm) – manufactured with aluminum

These two versions provide flexibility in both size and material, while maintaining the same high levels of performance, reliability, and efficiency for space-constrained applications.

Like all RFID products from Avery Dennison, both AD Dot R6-P and AD Dot5 U9 inlays are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, ensuring state-of-the-art, reliable products that meet a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD-Dot R6-P

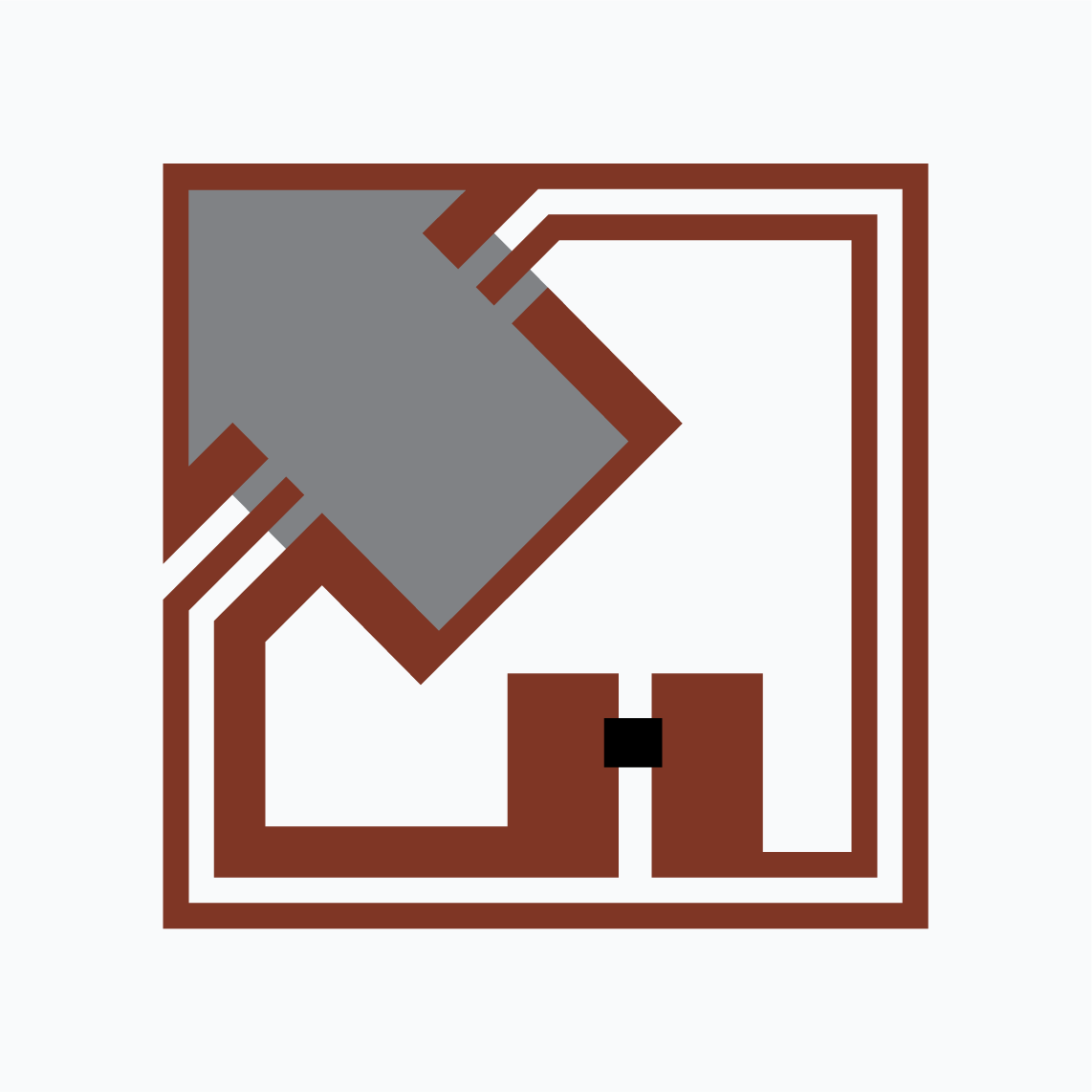

AD Dot R6-P

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    3 x 3 mm / 0.118 x 0.118 in
  • Die Cut Dimensions:
    4 x 4 mm / 0.157 x 0.157 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet+ inlay 3007493 / IL-603670
    Wet+ inlay 3007947 / IL-603965
UHF RFID Inlay: AD-Dot5 U9

AD Dot5 U9

  • Chip: NXP UCODE 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    5 x 5 mm / 0.197 x 0.197 in
  • Die Cut Dimensions:
    7 x 7 mm / 0.276 x 0.276 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet+ inlay IL-613039
