AD Defender U9 - Dual UHF + EAS  [UHF RFID tag and inlay]

UHF RFID Inlay: AD Defender U9 Dual EAS

Combining UHF RFID and EAS

Industry segments: Apparel & Fashion, Logistics

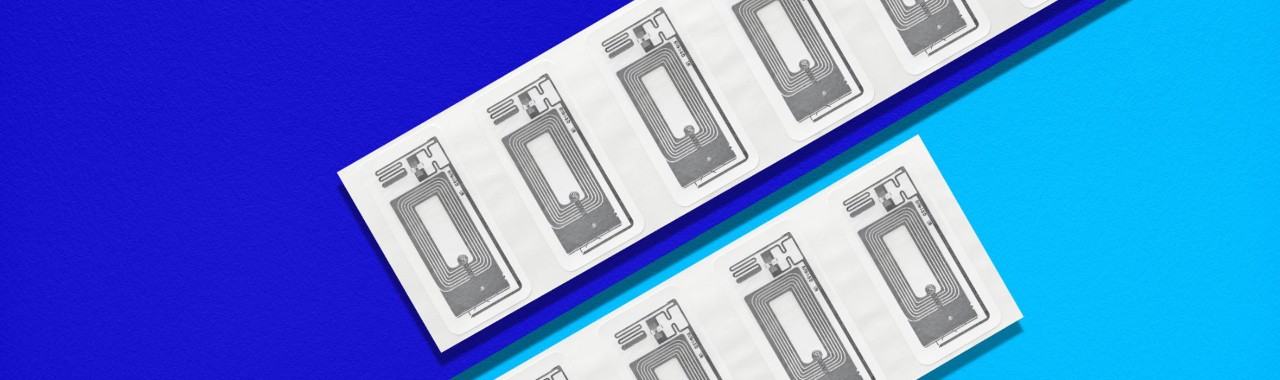

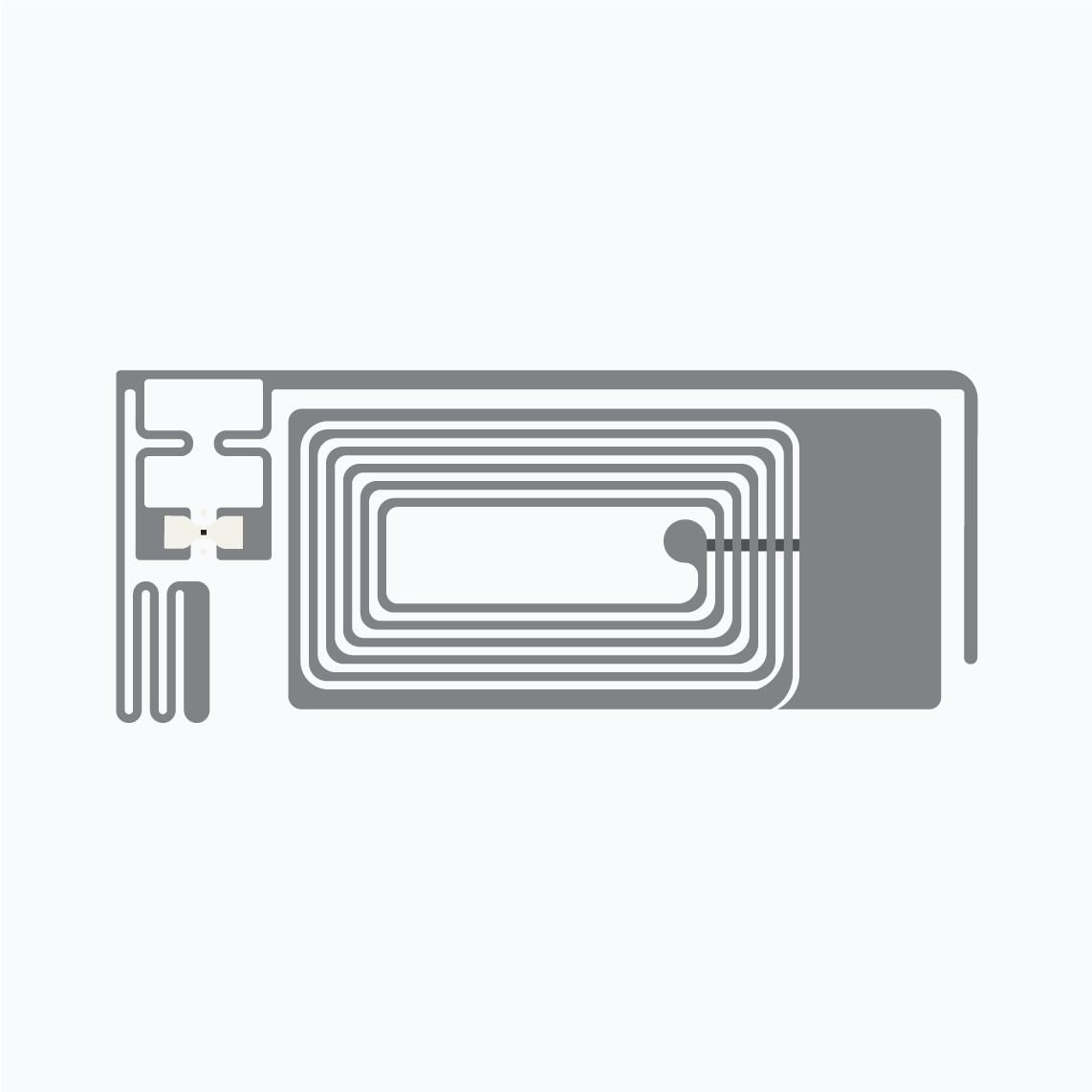

AD Defender U9 inlays from Avery Dennison are a unique dual-technology design that incorporates a UHF RFID inlay and an Electronic Article Surveillance (EAS) tag in a single die-cut label.

The product combines item-level tracking capabilities for a wide range of retail apparel products with a secondary loss prevention functionality and is available in a paper label format.

AD Defender U9 inlays are equipped with the NXP UCODE 9 IC that provides 96-bit EPC memory. TID memory is 96-bit with a 48-bit unique serial number.

Like all RFID products from Avery Dennison, AD Defender U9 inlays are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD Defender U9 Dual EAS

AD Defender U9 - Dual UHF + EAS

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    66 x 27 mm / 2.598 x 1.063 in
  • Die cut dimensions:
    70 x 31 mm / 2.756 x 1.220 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label/sticker IL-610074
