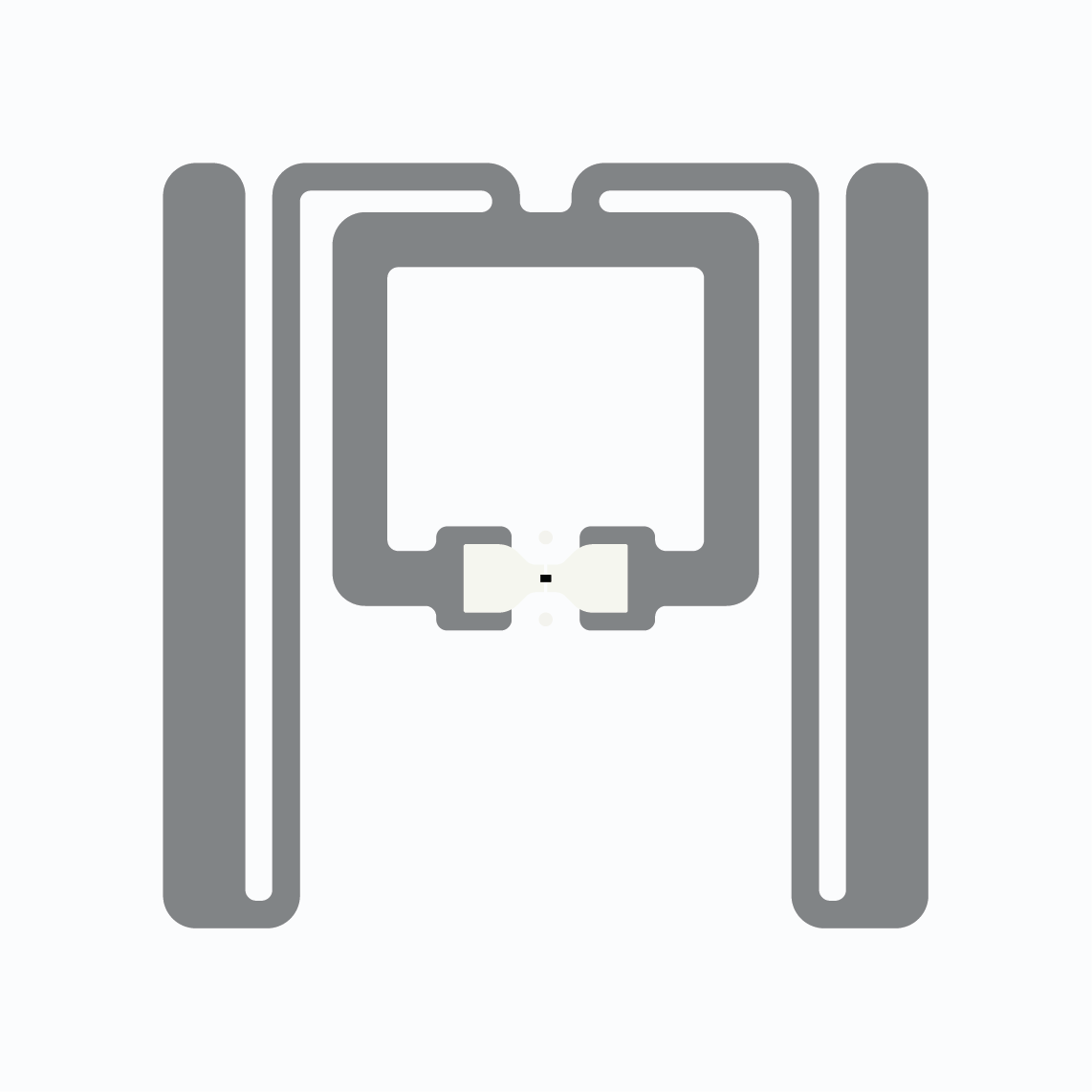

AD Crunch M830 [UHF RFID tag and inlay]

High performance inlay for item level tagging

Industry segments: Food

AD Crunch inlays from Avery Dennison have been developed for item-level tagging in fresh food applications. These inlays deliver exceptional performance and inventory accuracy. AD Crunch M830’s compact antenna footprint was designed to fit into the market’s 1.2 x 1.2in common label size.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison, AD Crunch inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

AD Crunch M830

Chip: Impinj Monza M830
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
28 x 28 mm / 1.1 x 1.1 in
Die cut dimensions:
30.5 x 30.5 mm / 1.2 x 1.2 in
EPC memory: 128 bit
TID memory: 96-bit / 48-bit unique serial number
Product code:
Dry+ inlay IL-614812
Wet inlay IL-614813
Label/sticker IL-614814

Data sheet

AD Crunch M830 ER

Chip: Impinj Monza M830
Frequency band:
UHF (860-960 Mhz)
Antenna dimensions:
28 x 28 mm / 1.1 x 1.1 in
Die cut dimensions:
30.5 x 30.5 mm / 1.2 x 1.2 in
EPC memory: 128 bit
TID memory: 96-bit / 48-bit unique serial number
Product code:
Label/sticker IL-613405

Data sheet
