AD Cosmic (AD-173)  [UHF RFID tag and inlay]

UHF RFID Inlay: AD Cosmic (AD-174 U9)

Maximum preformance, small footprint

Industry segments: Apparel & Fashion, Healthcare

AD Cosmic UHF RFID inlays from Avery Dennison Smartrac are an excellent choice for tagging small apparel and general retail items. With its excellent read distance, this inlay enables quick and efficient inventory tracking and management from source to store.

With its small footprint, AD Cosmic is an excellent choice for tagging apparel items and accessories, such as sunglasses, jewelry, and handbags. This inlay is also suited for tracking pharmaceutical and medical devices as well as superior performance directly on glass.

AD Cosmic U9 inlays are equipped with a UCODE 9 ICs from NXP, featuring 96-bits of EPC memory and a 96-bit Tag IDentifier (TID) with a 48-bit unique serial number factory-encoded into TID. Delivery formats include dry inlay, wet inlay and SmartFaceTM paper label options. AD-173u8 inlays are equipped with a UCODE 8 ICs from NXP, featuring 128 bits of EPC memory and a 96-bit Tag IDentifier (TID) factory locked TID number (48-bit unique serial number factory-encoded into TID). They are available in SmartFace™ Label delivery format.

All RFID products from Avery Dennison are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

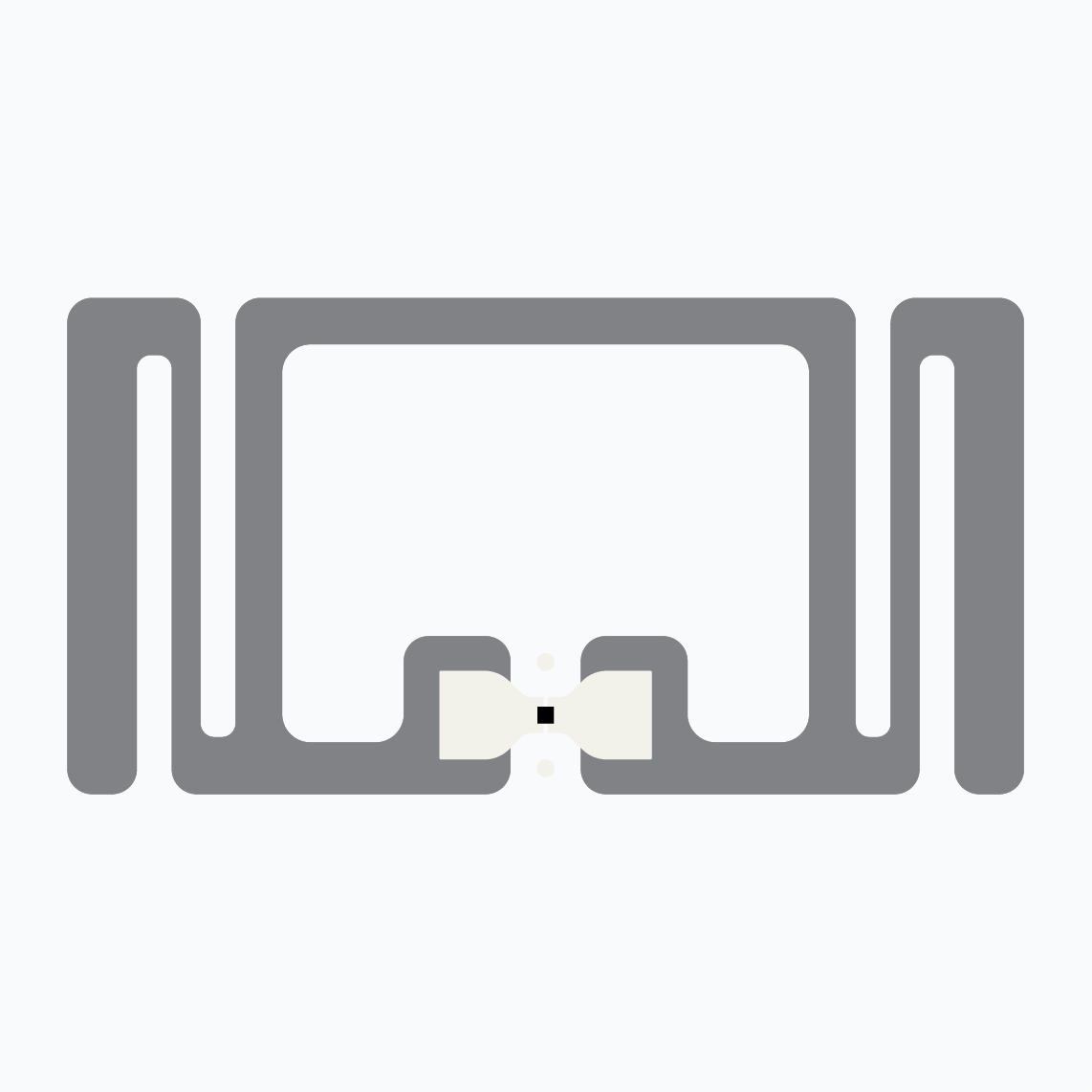

UHF RFID Inlay:  AD-173

AD-173 U8

  • Chip: NXP UCode 8
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    27 x 14 mm / 1.06 x 0.55 in
  • Die cut dimensions:
    30 x 18 mm / 1.20 x 0.70 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label / sticker RF100478 / IL-603737

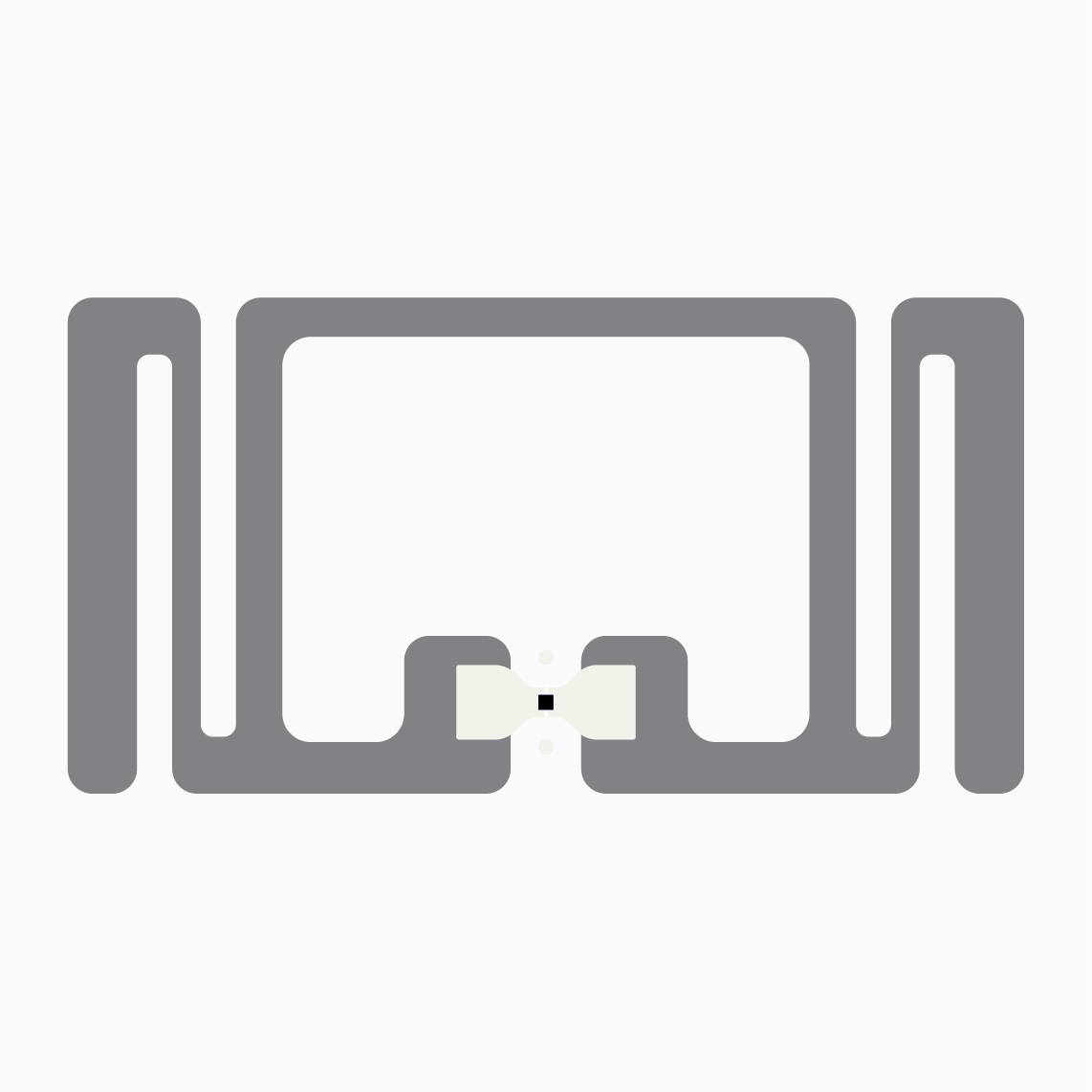

UHF RFID Inlay: AD Cosmic U9

AD Cosmic U9 - Paper Inlay

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    27 x 14 mm / 1.06 x 0.55 in
  • Die cut dimensions:
    35 x 20 mm / 1.38 x 0.79 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay RF602629 / IL-610698
    Wet inlay RF602631 / IL-610699
    Label/sticker RF101218 / IL-610700
UHF RFID Inlay: AD Cosmic U9

AD Cosmic U9 - PET

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    27 x 14 mm / 1.06 x 0.55 in
  • Die cut dimensions:
    35 x 20 mm / 1.38 x 0.79 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay RF603032 / IL-610751
    Wet inlay RF603033 / IL-610752
