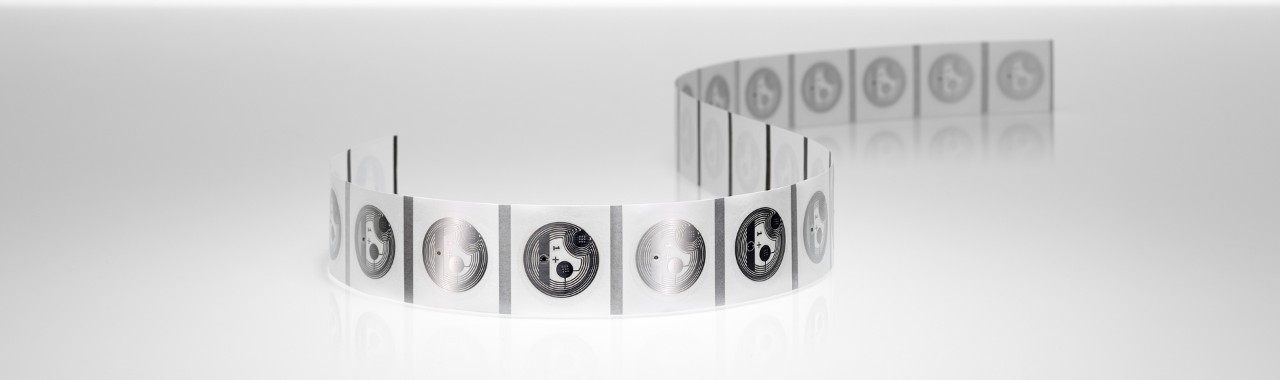

AD Circus™ [HF RFID tag and inlay]

Smallest round HF inlay with best-in-class performance

Industry segments: Healthcare, Industrial Applications

Avery Dennison Smartrac Circus™ inlays and tags provide superior readability and best-in-class performance for item-level product authentication, pharmaceutical and brand protection applications. As the smallest available round HF inlay, Circus inlays and tags are ideal wherever small size and top performance are essential. Circus is a tiny and cost-effective inlay with best-in-class performance.

Circus tags and inlays provide excellent performance in document and item identification where close stacking occurs, which is a challenging environment for other passive protocols. The tag also works well in applications where very fast inventory of multiple tags in the field occurs, e.g. counting casino chips. In these cases, Circus tags offer performance approaching UHF EPC Class 1 Gen 2.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management. This ensures a reliable and state-of-the-art product that meets a variety of application needs, where high performance is a critical parameter.

Please find a comprehensive overview of all features in the data sheet.

AD Circus SLIX

Chip: NXP ICode SLIX
Frequency Band:
HF 13.56 MHz
Antenna Dimensions:
Ø18 mm / 0.71 in
Die Cut Dimensions:
Ø21 mm / 0.83 in
Product Code:
Wet+ inlay 3003285 / IL-602803
Label / sticker 3003286 / IL-610376

Data sheet

AD Circus ILT-M

Chip: NXP ICode ILT-M
Frequency Band:
HF 13.56 MHz
Antenna Dimensions:
Ø22 mm / 0.87 in
Die Cut Dimensions:
Ø25 mm / 0.98 in
Product Code:
Wet inlay 3002540 / IL-602742
Wet+ inlay 3004385 / IL-602826
Label / sticker 3006930 / IL-603316
