AD Circus™ Mini  [HF RFID tag and inlay]

Round HF / NFC inlay offers high performance where space is limited

Industry segments: Apparel & Fashion. Events, Sports, Gaming, Food

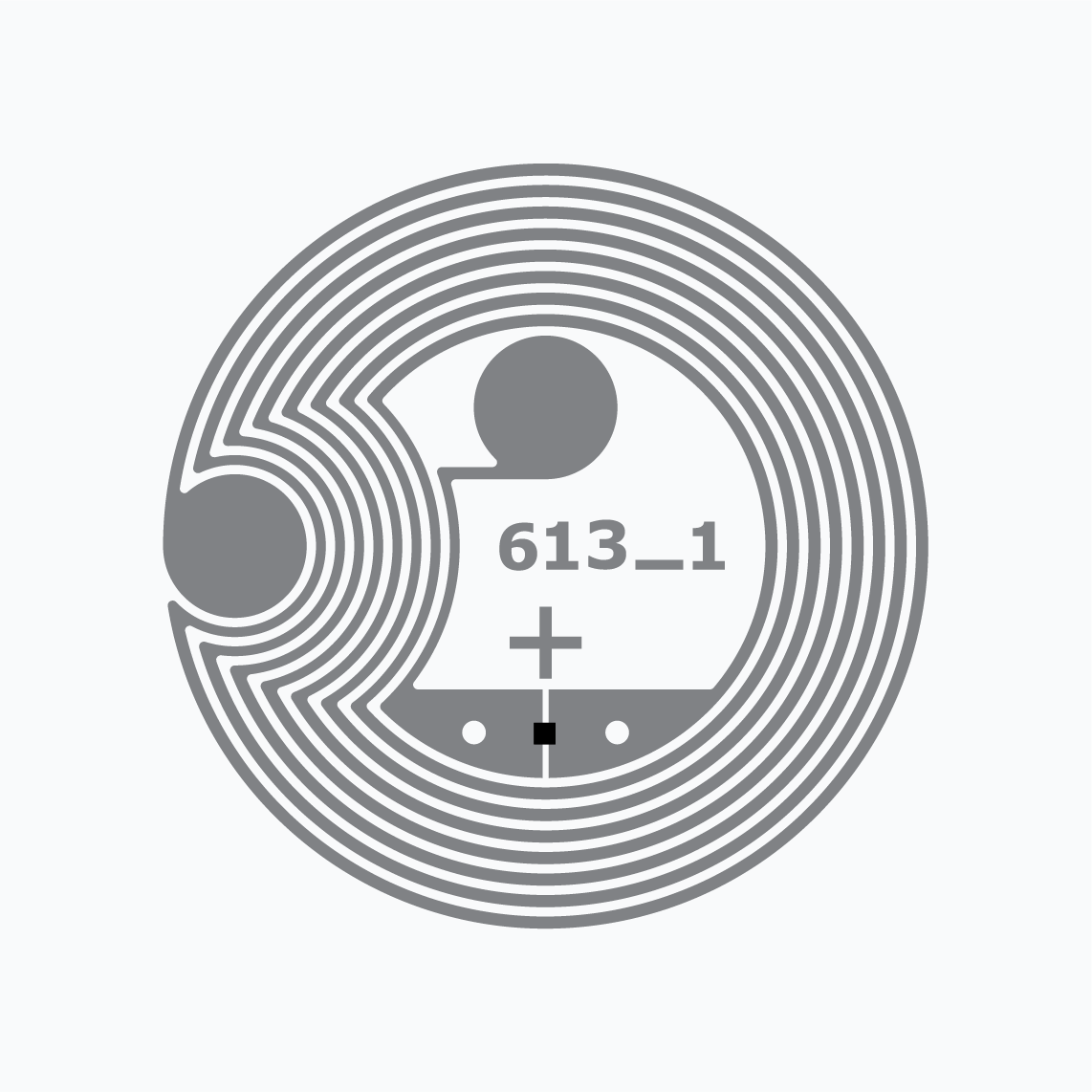

This is Avery Dennison’s smallest round form factor HF / NFC inlay, condensed to the max with an antenna diameter of just 16mm. The Circus™ Mini offers excellent performance in applications where limited space is available, such as item-level retail, food, gaming, toys, or indeed any NFC use case.

Smaller than our current round Circus™ inlays with NTAG chips, which are 20mm in diameter, this new inlay features NXP’s NTAG213 chip. This IC offers 144 bytes of user memory and comes with unique ID (UID) mirror functionality, which enables the chip serial number to be mirrored as part of its encoded URL address. This feature allows every tag to be seen and read as unique from the application perspective, without users needing to encode inlays with different numbers.

Circus™ Mini is currently available as a wet inlay with the NTAG213 chip.

The inlay is compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.
