AD Charge M830 [UHF RFID tag and inlay]

UHF RFID Inlay: AD Charge

Boost inventory accuracy on protein with RFID inlays

Industry segments: Foood and Beverages

Improve item-level tracking and inventory accuracy with Avery Dennison's AD Charge inlays. These inlays enhance supply chain visibility across various food applications. Designed for high-density environments, the antenna footprint allows conversion to various label sizes.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison, AD Charge inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

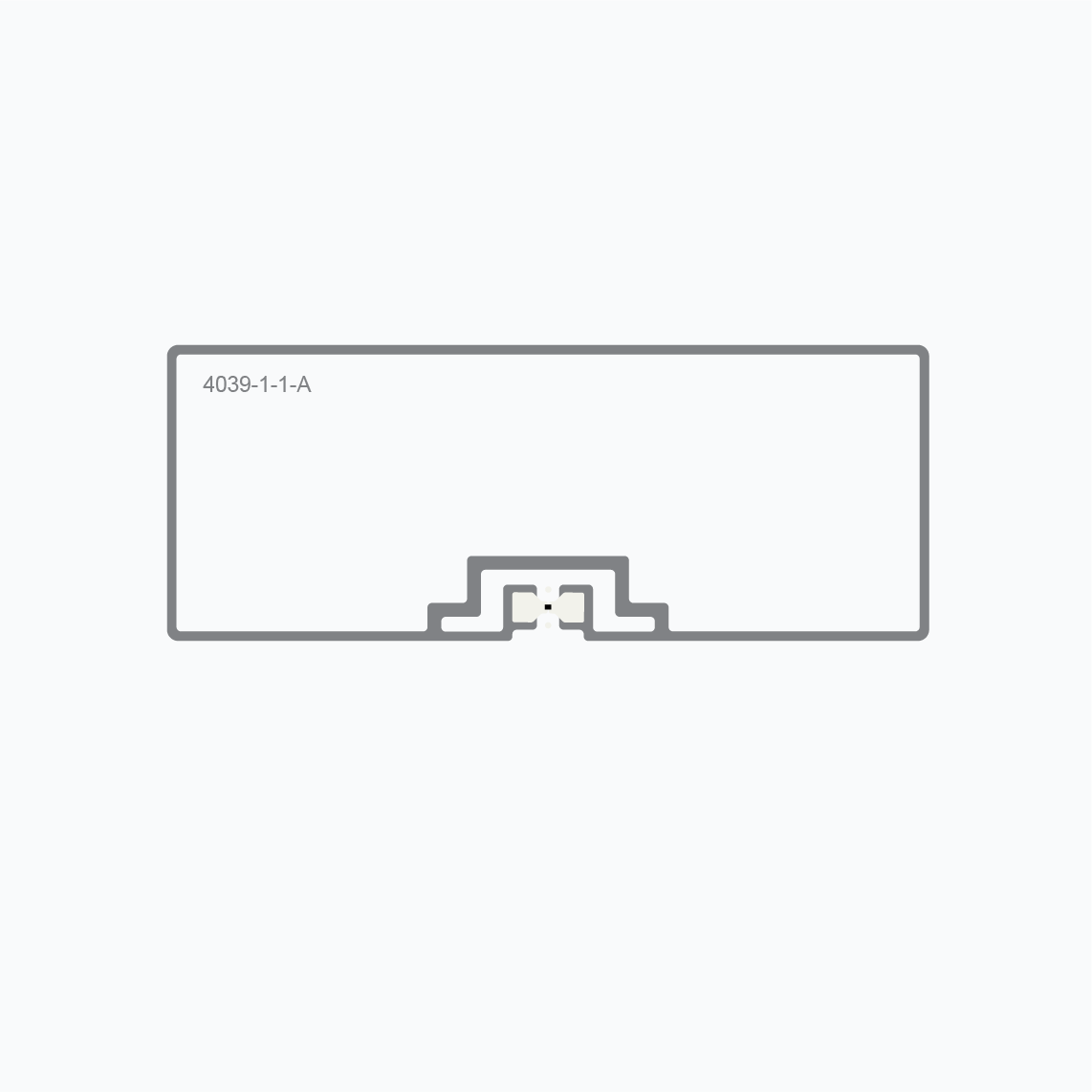

AD Charge M830

  • Chip: Impinj Monza M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    68 x 26.4 mm / 2.68 x 1.04 in
  • Die cut dimensions:
    71 x 29.4 mm / 2.8 x 1.16 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay IL-613862
    Wet inlay IL-613865
    Label/sticker IL-613860
