AD Burst [UHF RFID tag and inlay]

Excellent performance on a wide variety of RFID tagging applications

Industry segments: Apparel and General Retail, Industrial Applications

AD Burst inlays and tags from Avery Dennison provide outstanding global performance in die cut footprint of 73 x 13.5 mm / 2.87 x 0.53 in.

AD Burst is optimized for maximum performance in retail and apparel segments, but as a versatile product, it also performs well in some industrial applications. The inlays are suitable for a wide variety of RFID tagging applications, including supply chain, inventory and logistics, apparel, and home essentials, as well as apparel, electronics, sporting goods, and other general merchandise.

Like all RFID products from Avery Dennison, AD Burst inlays are manufactured according to the industry’s highest quality standards.

Please find a comprehensive overview of all features in the data sheet.

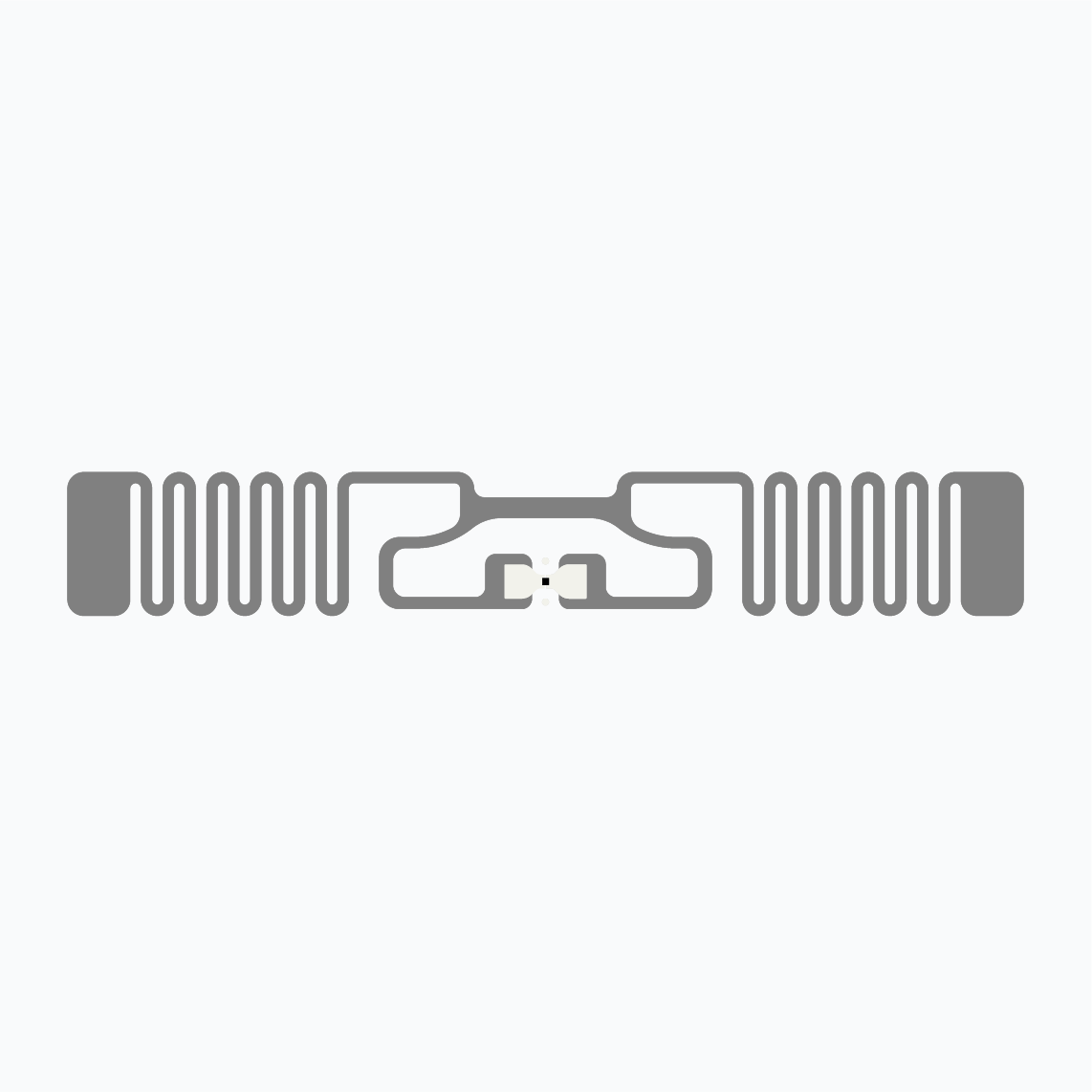

AD Burst M830

Chip: Impinj M830
Operating frequency:
UHF (860-960 Mhz)
Antenna dimensions:
70 x 10,50 mm / 2.756 x 0.413 in
Die cut dimensions:
73 x 13,50 mm / 2.874 x 0.532 in
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
ARC Specification
Product code:
Dry inlay 3009587 / IL-609981
Dry inlay IL-612554
Wet inlay 3009588 / IL-609986
Wet inlay IL-612436
Label/sticker 3009589 / IL-609988

Data sheet

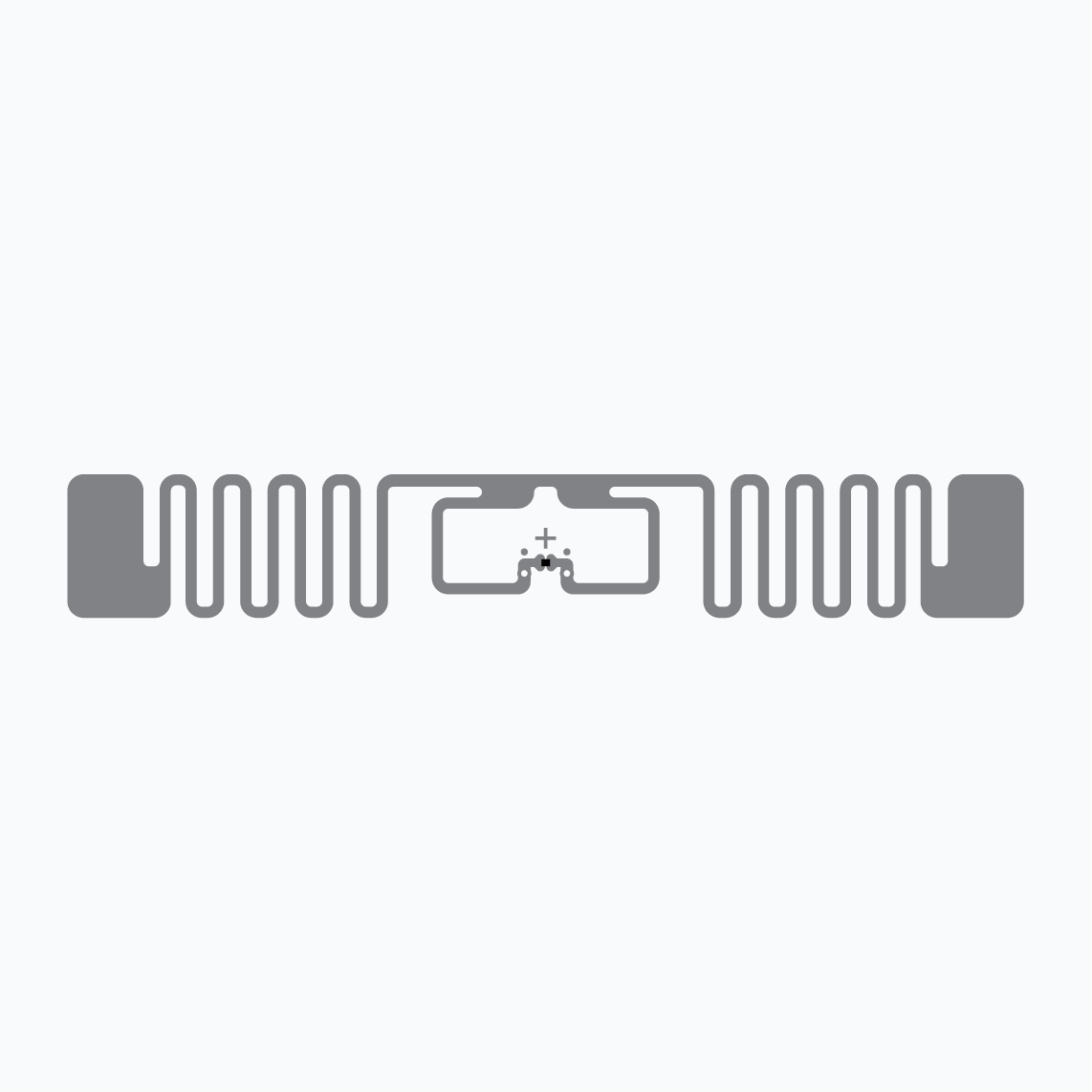

AD Burst M830 (strap format)

Chip: Impinj M830
Operating frequency:
UHF (860-960 Mhz)
Antenna dimensions:
70 x 10,50 mm / 2.756 x 0.413 in
Die cut dimensions:
73 x 13,50 mm / 2.874 x 0.532 in
EPC memory: 128 bits
TID memory: 96-bit / 48-bit unique serial number
ARC Specification
Product code:
Dry+ inlay IL-609838, IL-609837
Wet inlay IL-609840, IL-609861
Label/sticker IL-609862, IL-610355

Data sheet

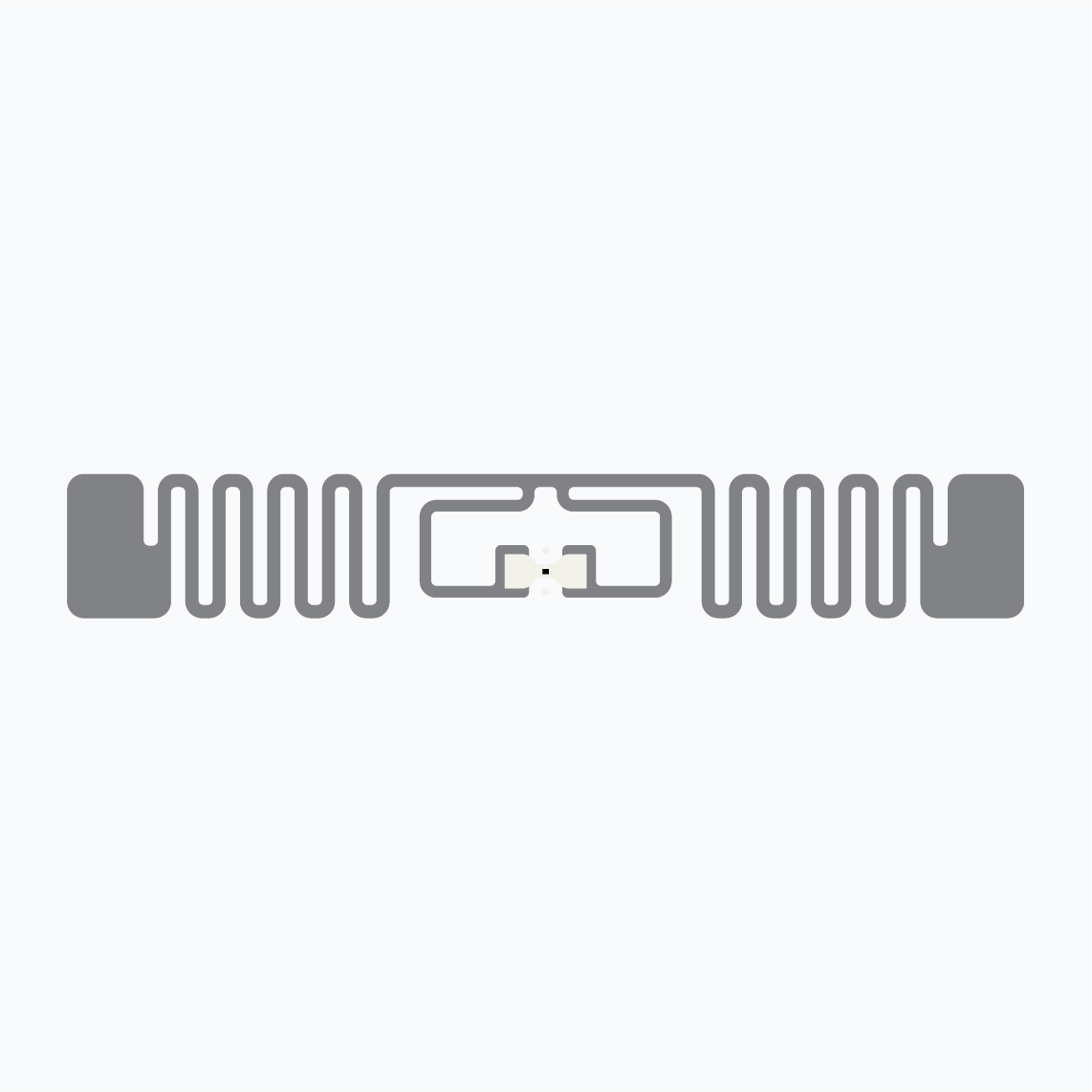

AD Burst M850

Chip: Impinj M850
Operating frequency:
UHF (860-960 Mhz)
Antenna dimensions:
70 x 10,50 mm / 2.756 x 0.413 in
Die cut dimensions:
73 x 13,50 mm / 2.874 x 0.532 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC Specification
Product code:
Dry inlay IL-610202
Wet inlay IL-610203
Label/sticker IL-610204

Data sheet

AD Burst M850 (strap format)

Chip: Impinj M850
Operating frequency:
UHF (860-960 Mhz)
Antenna dimensions:
70 x 10,50 mm / 2.756 x 0.413 in
Die cut dimensions:
73 x 13,50 mm / 2.874 x 0.532 in
EPC memory: 96 bits
TID memory: 96-bit / 48-bit unique serial number
ARC Specification
Product code:
Dry+ inlay IL-609954
Wet inlay IL-609955, IL-610591, IL-610638
Label/sticker IL-609956, IL-610356
