AD Balance M830 Combo [UHF RFID tag and inlay]

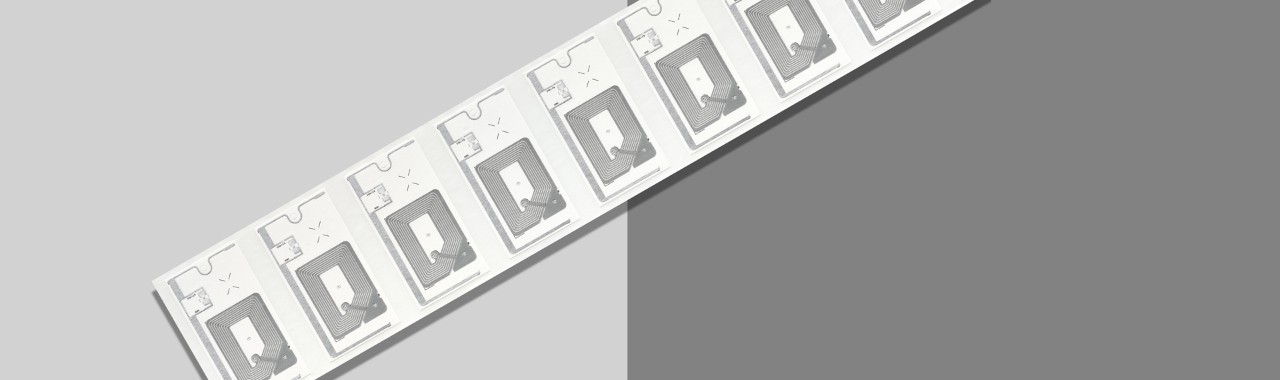

UHF RFID Inlay: AD Balance

Auburn H2 compliant inlay combining RFID and EAS

Industry segments: Apparel & Fashion, Beauty & Personal Care, Other Retail

Avery Dennison’s debut inlay for our H2 portfolio, AD Balance M830 is designed to meet Auburn University's H2 overhead head read specification. This inlay offers excellent global performance and is ideal for a wide range of apparel and retail applications.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.  Like all RFID products from Avery Dennison, AD Balance M830 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

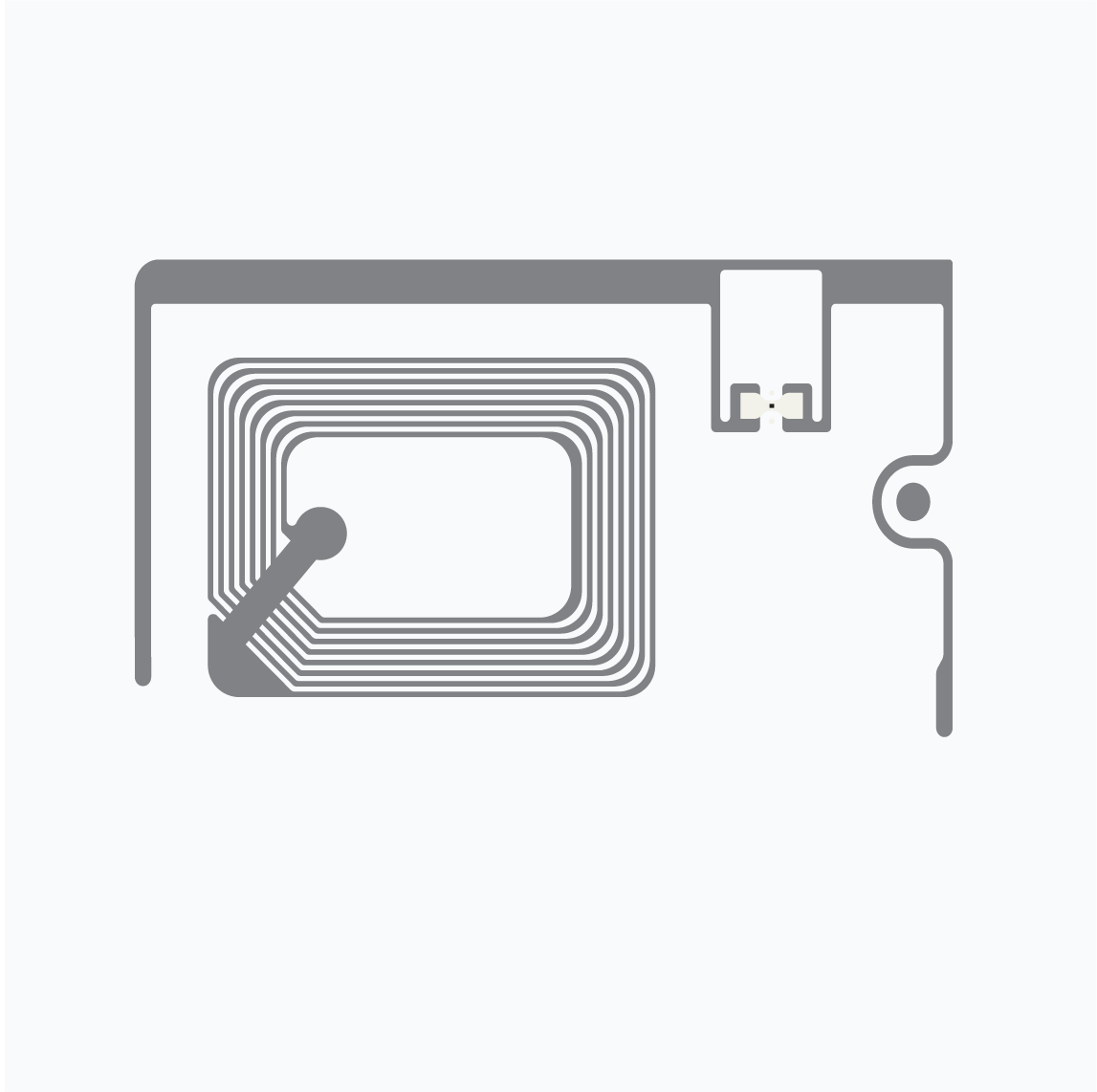

UHF RFID Inlay: AD Balance M830 with EAS component

AD Balance M830 Combo

  • Chip: Impinj M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    73 x 37.75 mm / 2.87 x 1.49 in
  • Die cut dimensions:
    76 x 40 mm / 2.99 x 1.575 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification
  • Product code:
    Label/sticker - IL-611101
