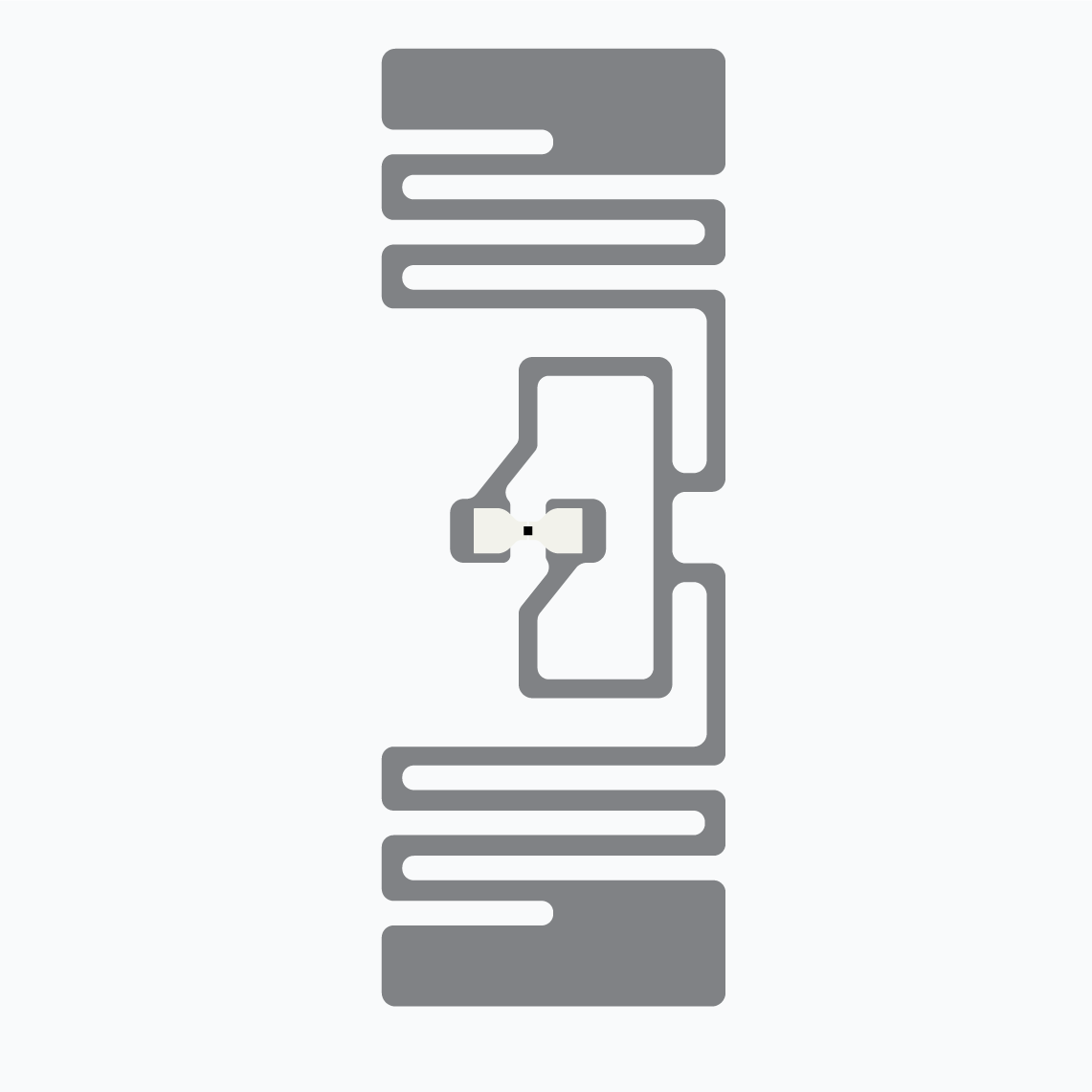

AD Astro (AD-37x)  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-370u7

Ideal for a wide range of items in retail and beyond

Industry segments: Apparel & Fashion, Logistics, General Retail


AD Astro inlays (previously AD-37x) from Avery Dennison are designed for tagging a broad range of retail items, particularly apparel, including fabrics with metallic fiber. They are also well suited for applications related to supply chain, inventory and logistics.

AD Astro inlays are optimized for outstanding global performance and the die cut size is available in both WEL (56 x 22mm) and NEL (22 x 56mm) formats.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.  Like all RFID products from Avery Dennison, AD Astro inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

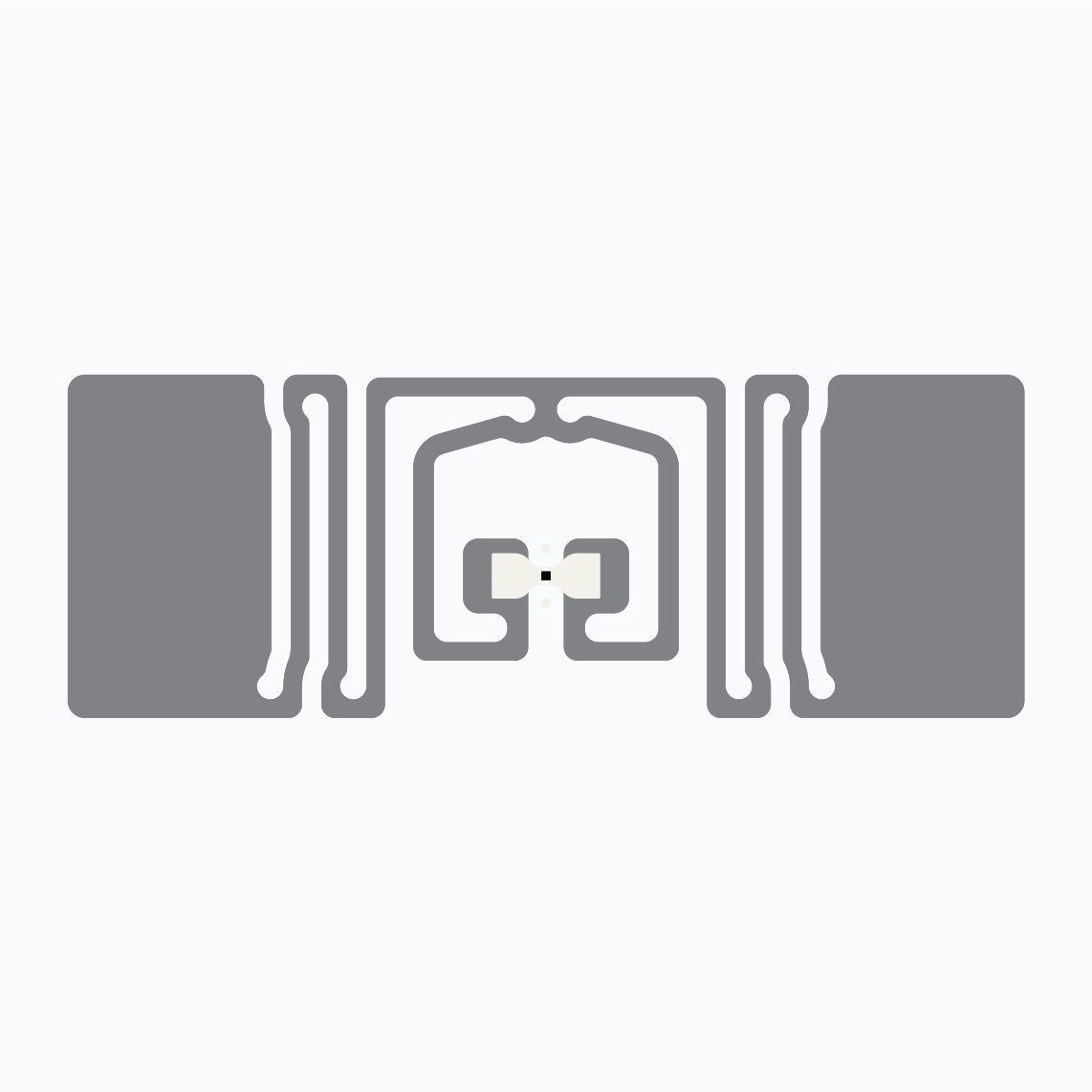

UHF RFID Inlay: AD-372u8

AD-372u8

  • Chip: NXP UCODE 8
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    53 x 19 mm / 2.09 x 0.75 in
  • Die Cut Dimensions:
    57 x 25 mm / 2.25 x 1.00 in

  • EPC Memory: 128 bits
  • TID Memory: 96-Bit Tag IDentifier & 48-Bit
  • ARC specification: -
  • Product Code:
    Dry inlay RF601375
    Wet inlay RF601115
    Label / sticker RF100507
Data sheet

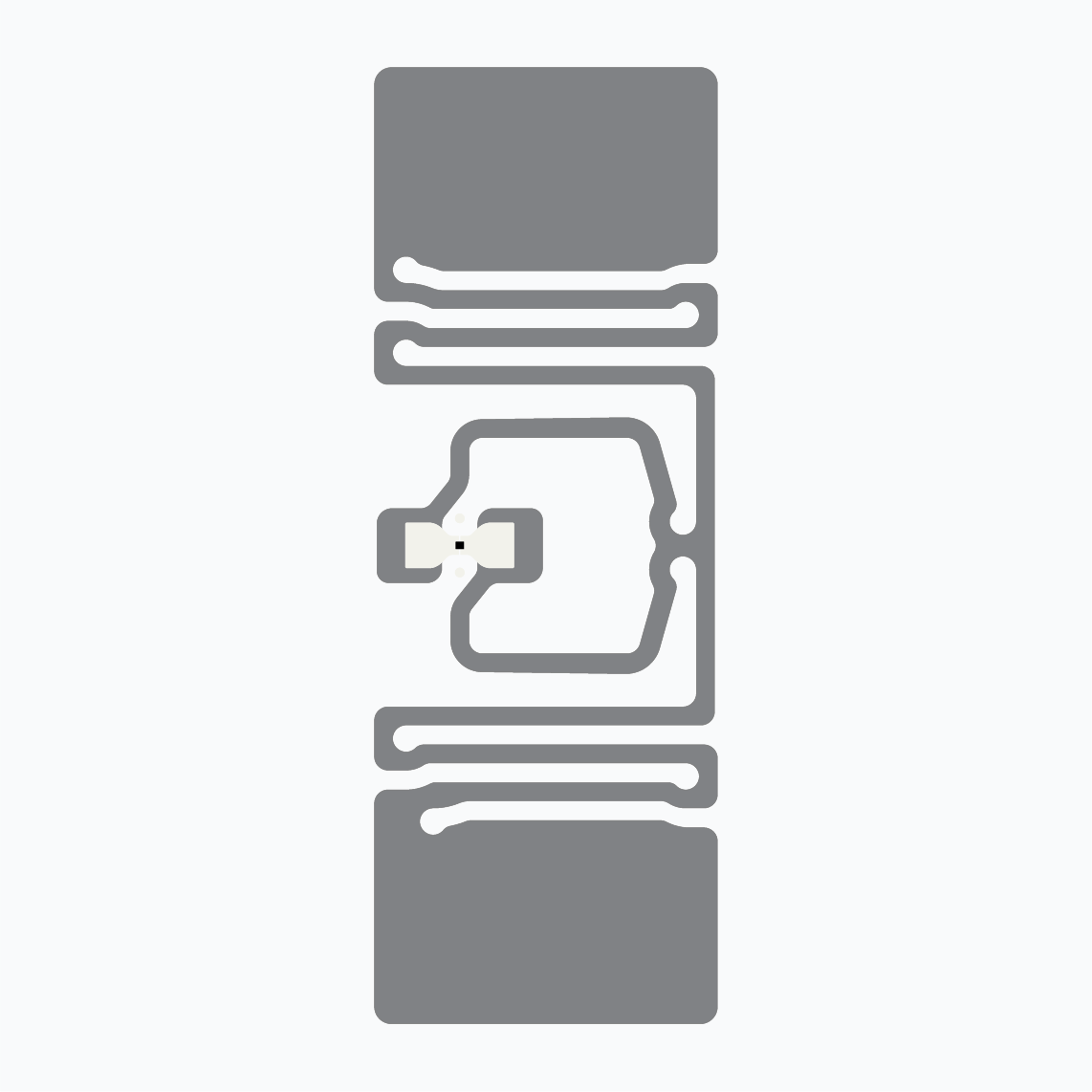

UHF RFID Inlay: AD-374 U9 NEL

AD-374 U9 NEL

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    53 x 19 mm / 0.75 x 2,09 in
  • Die cut dimensions:
    22 x 56 mm / 0.87 x 2.21 in
    56 x 22 mm / 2,21 x 0,87 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Dry inlay RF602189
    Wet inlay RF602191
    Label/sticker RF100982
Data sheet

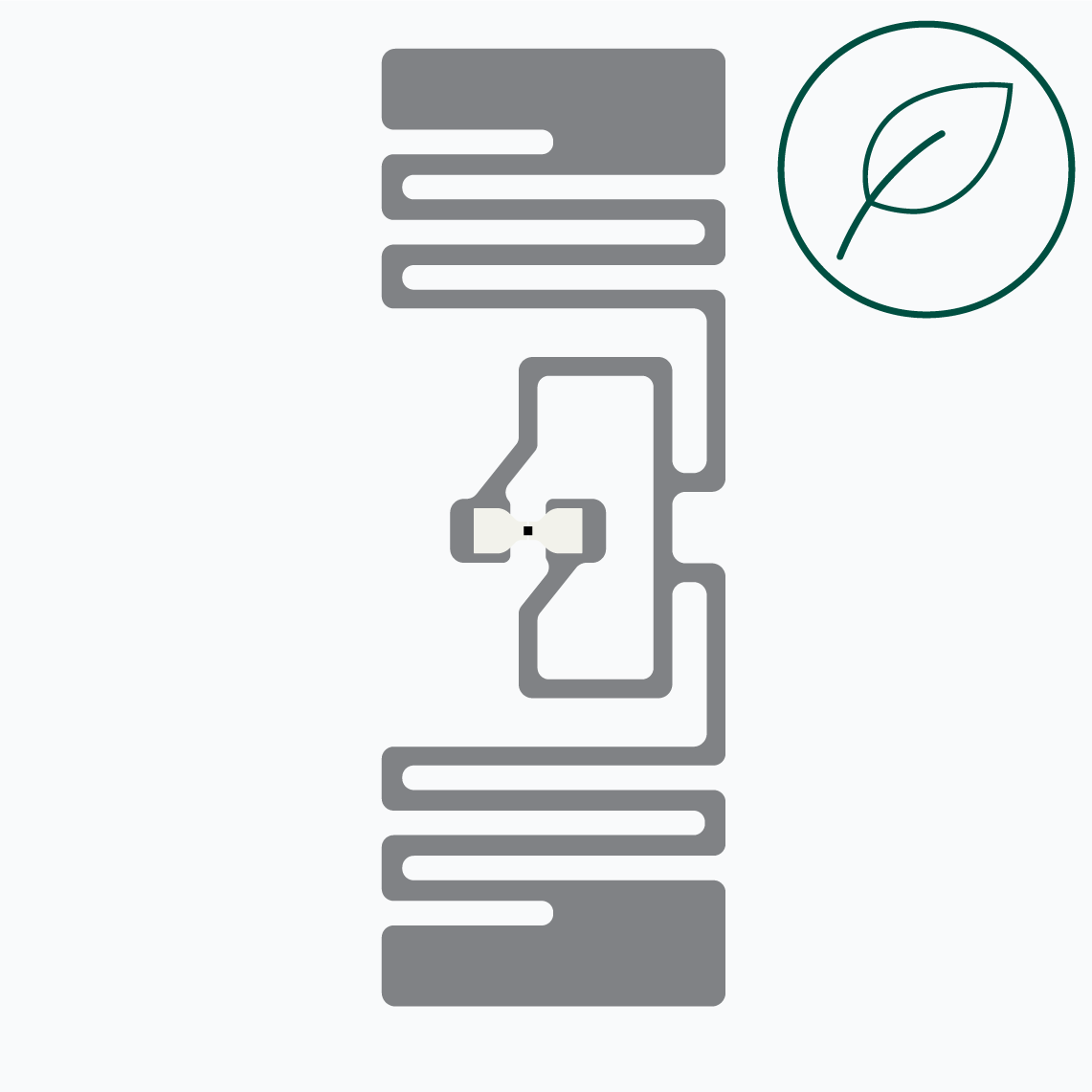

UHF RFID Inlay: AD Astro U9 Pure™ NEL

AD Astro U9 Pure 95™ NEL

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    19 x 53 mm / 0.75 x 2.09 in
  • Die cut dimensions:
    22 x 56 mm / 0.87 x 2.2 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, L, Q, W2, W5
  • Product code:
    Wet inlay  RF602984 / IL-610744
    Label / sticker  RF101526 / IL-610745


Data sheet
UHF RFID Inlay: AD Astro U9 NEL

AD Astro U9 NEL

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    19 x 53 mm / 0.75 x 2.09 in
  • Die cut dimensions:
    22 x 56 mm / 0.87 x 2.2 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Dry inlay  IL-610746
    Wet inlay  IL-610747
    2-Ply PFL  IL-610748
Data sheet

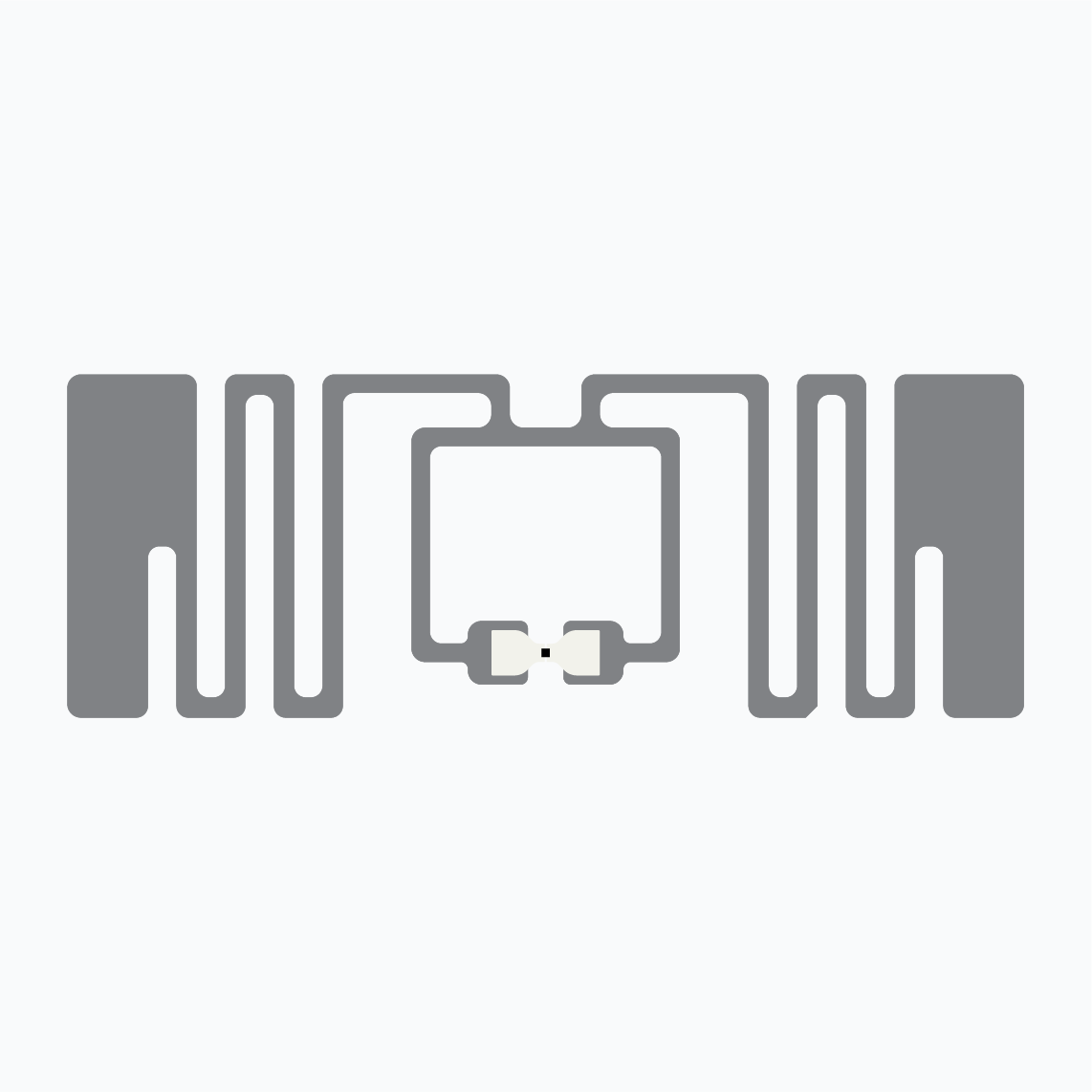

UHF RFID Inlay: AD Astro U9 WEL

AD Astro U9 WEL

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    53 x 19 mm / 0.75 x 2,09 in
  • Die cut dimensions: -
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    2-Ply PFL  IL-610753
    2-Ply PFL  IL-611754


Data sheet
