AD Fusion [UHF RFID tag and inlay]

UHF RFID Inlay: AD Fusion

A combined UHF and RF EAS tag

Industry segments: Apparel & Fashion, Other Retail

AD Fusion is a single-tag solution for apparel and retail businesses that currently use (or plan to use) both RFID and Electronic Article Surveillance (EAS).

This new tag integrates both functionalities in a single label, which is designed to be small and efficient, and ideal for use in hang tags, for example.

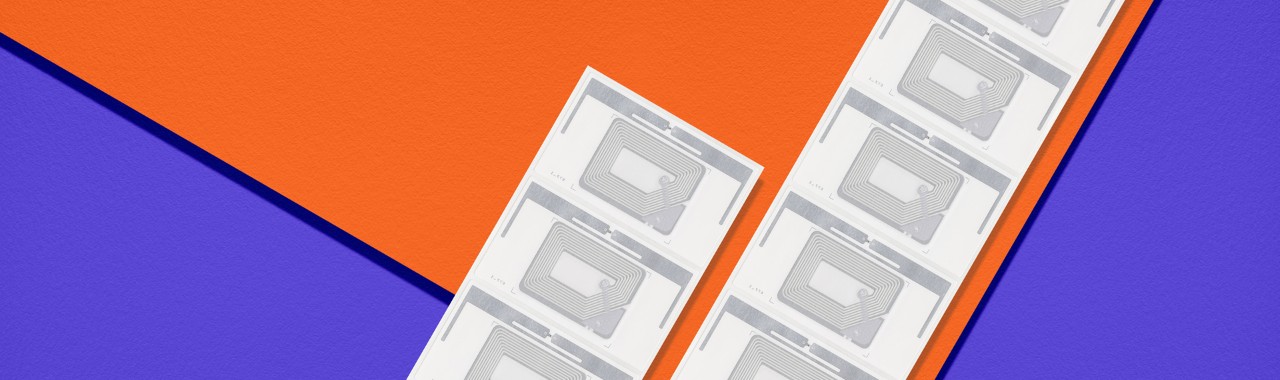

The combination of a UHF tag and an RF EAS component in the same inlay offers a discreet solution to customers currently using RFID for inventory tracking alongside EAS gates for anti-theft surveillance.

AD Fusion U9 features the NXP UCODE 9 IC, which has 96-bit EPC, alongside a QEV min. 85+ EAS component. It is available as either in label format as of now.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison, AD Fusion inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

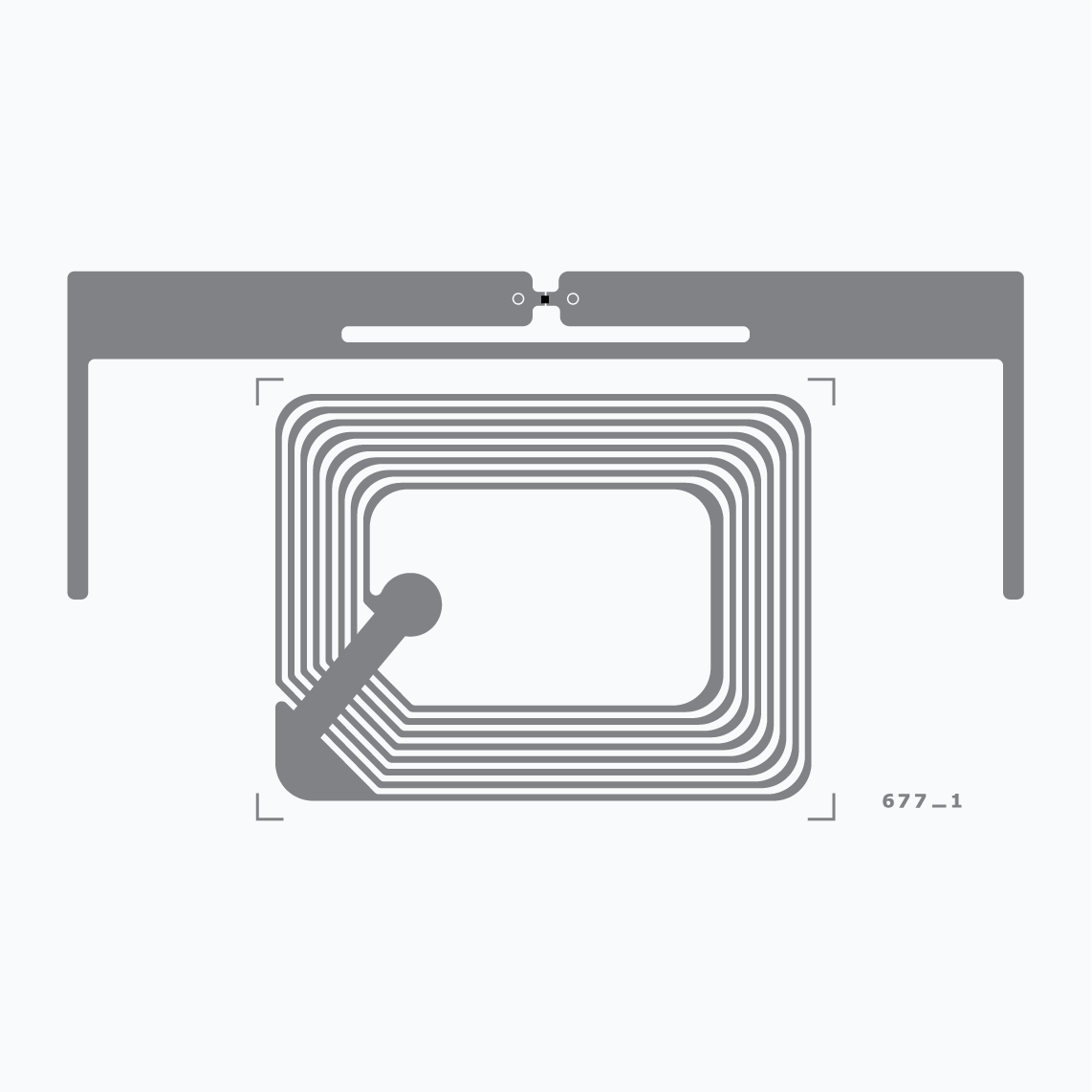

UHF RFID Inlay:  AD Fusion U9

AD Fusion U9

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 40.2 mm / 2.756 x 1.583 in
  • Die cut dimensions:
    73 x 43.2 mm / 2.874 x 1.701 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label/sticker 3008680 / IL-604810
