AD Flicker U9 [UHF RFID tag and inlay]

UHF RFID Inlay: AD Flicker

Auburn University ARC certified for General Retail spec C2

Industry segments: Apparel & Fashion, Beauty & Personal Care, Other Retail

Avery Dennison’s newest addition to our C2 inlay portfolio is AD Flicker U9. This inlay offers excellent global performance and is ideal for a wide range of retail applications, including decor, hardware, candles, and other home goods, as well as apparel and cosmetics. Its narrow die-cut footprint makes it perfect for use on labels and in hang tags.

These inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison, AD Flicker U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

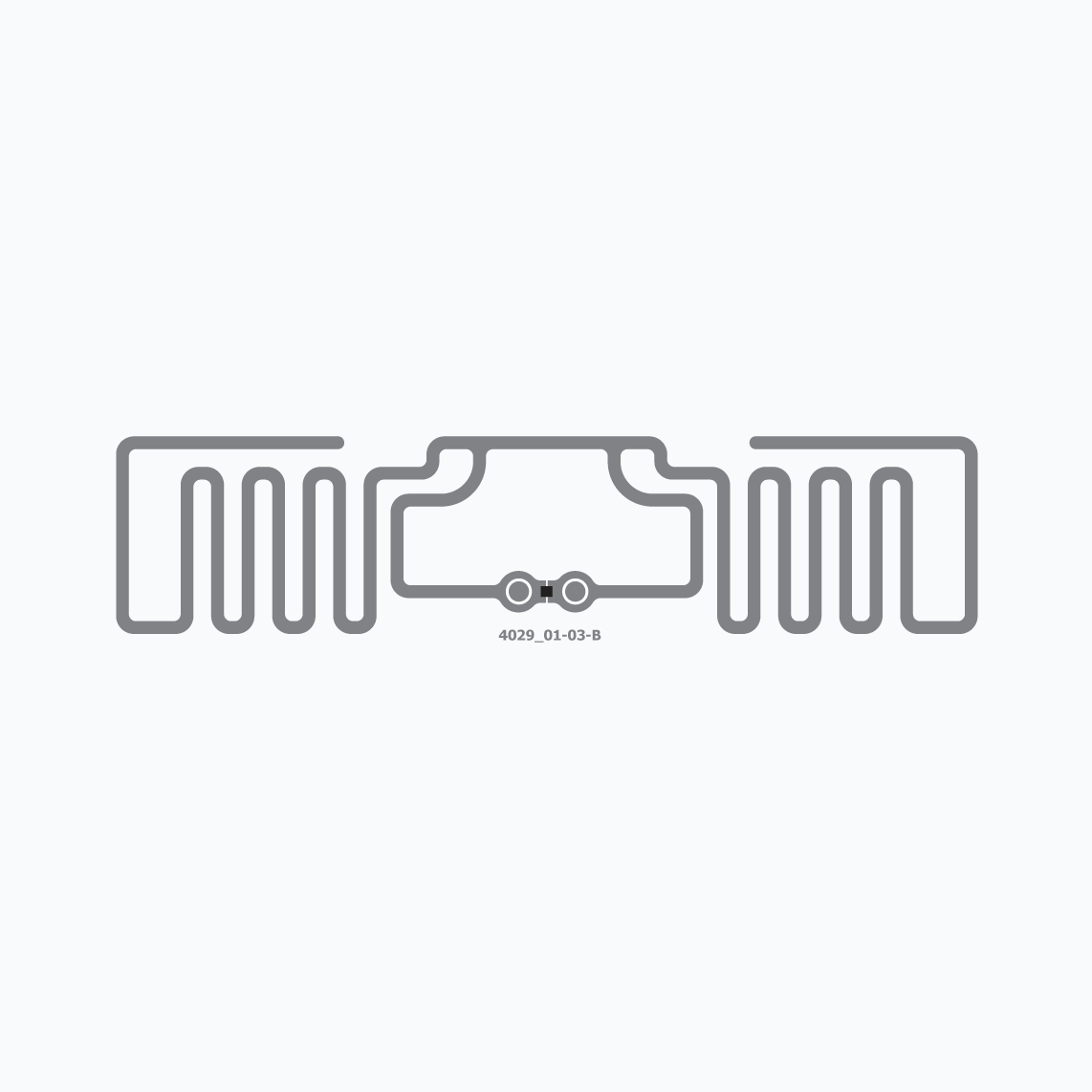

UHF RFID Inlay:  AD Flicker U9

AD Flicker U9

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    48 x 11 mm / 1.89 x 0.43 in
  • Die cut dimensions:
    51 x 14 mm / 2 x 0.55 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry inlay IL-613327
    Wet inlay IL-613326
    Label/sticker IL-613343
    Label/sticker IL-614524
    Label/sticker IL-614525
