AD-662uDNA [UHF RFID tag and inlay]

Tracking capabilities combined with extra-large user memory

Industry segments: Automotive, Industrial Applications, Sports, Events and Gaming

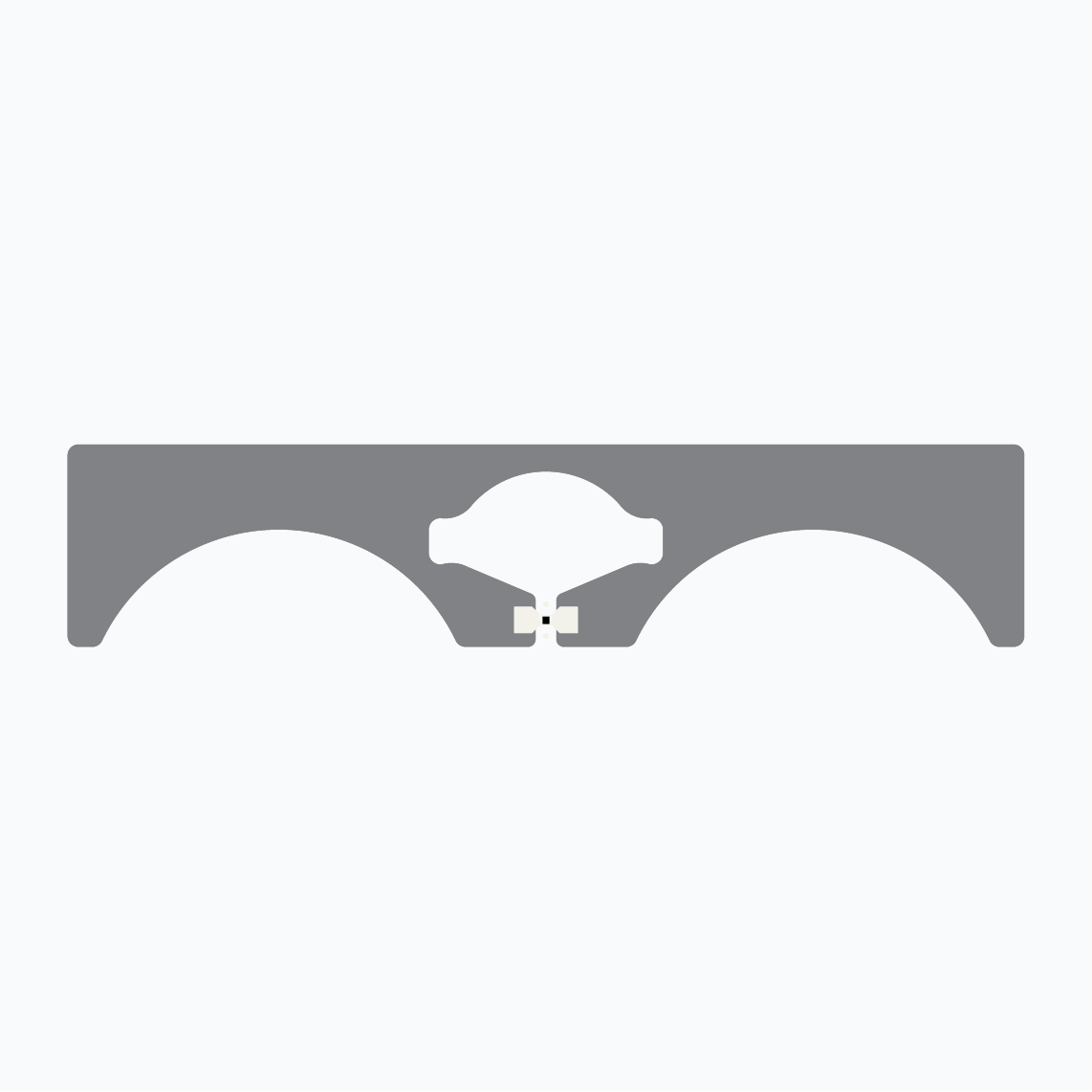

AD-662uDNA inlay from Avery Dennison Smartrac is a high performing Gen2 UHF RFID design with an extra-large user memory of 3 k-bit and exceptional performance across a wide range of dielectrics.

The inlay is suitable for a wide variety of RFID tagging applications, particularly those related to glass, automotive and industrial asset tracking, and race timing.

AD-662uDNA is equipped with NXP UCODE DNA chip that comes with 224 bits of EPC memory, exceptional 3 K-bits of user memory, and 96 bits of serialized TID with a 48 bit unique serial number. The product is available in Dry Inlay and Wet Inlay delivery formats.

Like all RFID products from Avery Dennison Smartrac, AD-662uDNA inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Technical features
Chip	NXP UCODE DNA
Frequency Band	UHF 860 - 960 MHz
Antenna Dimensions	90 x 19 mm / 3.54 x 0.75 in
Die Cut Dimensions	93 x 22 mm / 3.67 x 0.87 in
EPC Memory	244 bits
TID Memory	48-Bit
Product Code	Dry inlay RF600923 / IL-607041
Product Code	Wet inlay RF600870 / IL-607493

Please find a comprehensive overview of all features in the data sheet.
