AD-457 U9  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-457

Robust and versatile labels for hard to read surfaces

Industry segments: Beauty & Personal Care, Food


Available in both FCC and ETSI versions, AD-457u9 inlays from Avery Dennison are an excellent option for tagging items that cannot be RFID-enabled with traditional inlay designs. Equipped with a UCODE 9 chip from NXP, the Gen2 UHF RFID labels are perfectly suited for tagging smaller items, particularly in the retail segment. The tag features a slim, 64 x 6 mm die cut footprint and can achieve read distances up to 2.5 meters when applied to non-RF friendly surfaces such as metal or liquid filled containers.

AD-457u9 is recommended for a variety of applications and use cases such as cosmetics, food & beverages, personal care and electronics. The tag is pliable, and conforms well to curved surfaces such as bottles and jars.

The product’s UCODE 9 chip features 96-bit of EPC memory and 96-bit unique factory-locked TID number. A 48-bit unique serial number is factory-encoded into the TID. The sole delivery format is label.

Like all RFID products from Avery Dennison, AD-457u9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

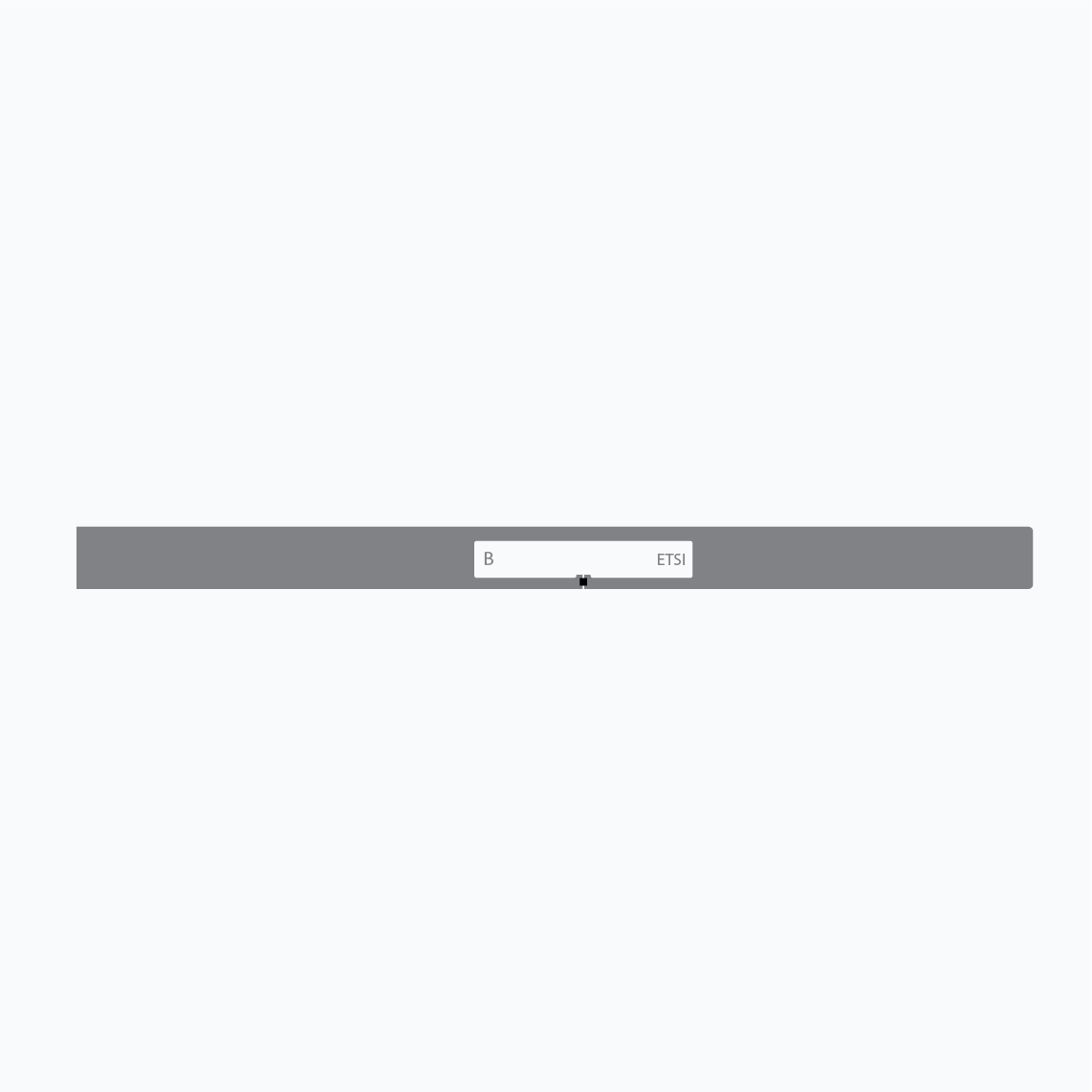

UHF RFID Inlay:  AD-457 U9 ETSI

AD-457 U9 ETSI

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    64 x 6 mm / 2.52 x 0.24 in
    64 x 18 mm / 2.52 in x 0.71 in
  • Die cut dimensions:
    64 x 6 mm / 2.52 x 0.24 in
    64 x 18 mm / 2.52 in x 0.71 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label / sticker
    IL-609921 / 3009546
    IL-609918 / 3009543
    IL-609919 / 3009544

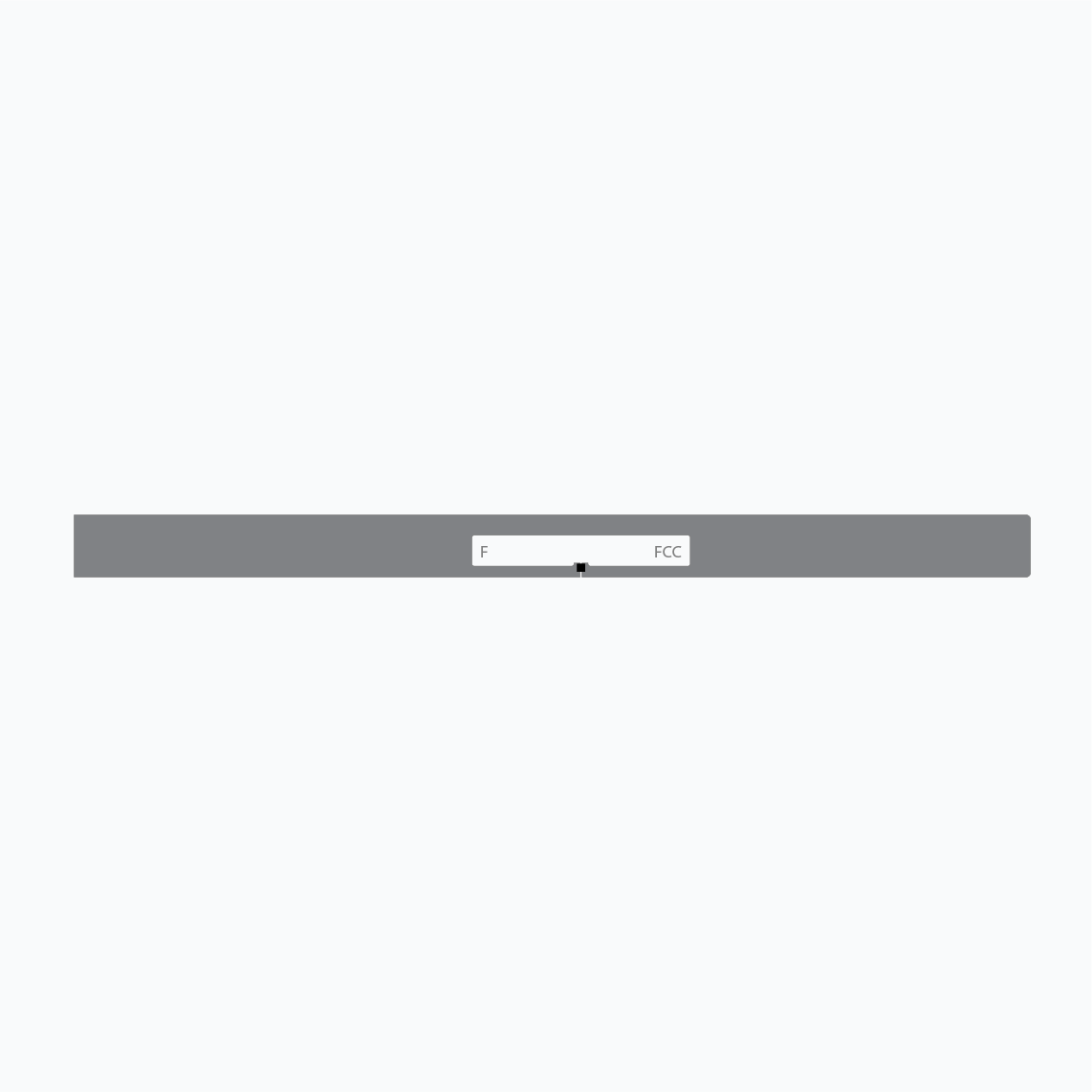

UHF RFID Inlay: AD-457 U9 FCC

AD-457 U9 FCC

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    64 x 6 mm / 2.52 x 0.24 in
    64 x 18 mm / 2.52 in x 0.71 in
  • Die cut dimensions:
    64 x 6 mm / 2.52 x 0.24 in
    64 x 18 mm / 2.52 in x 0.71 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Label / sticker
    IL-609920 / 3009545
    IL-609917 / 3009541
