AD-386 M750  [UHF RFID tag and inlay]

Next-gen apparel tag with high read sensitivity

Industry segments: Apparel & Fashion, Logistics

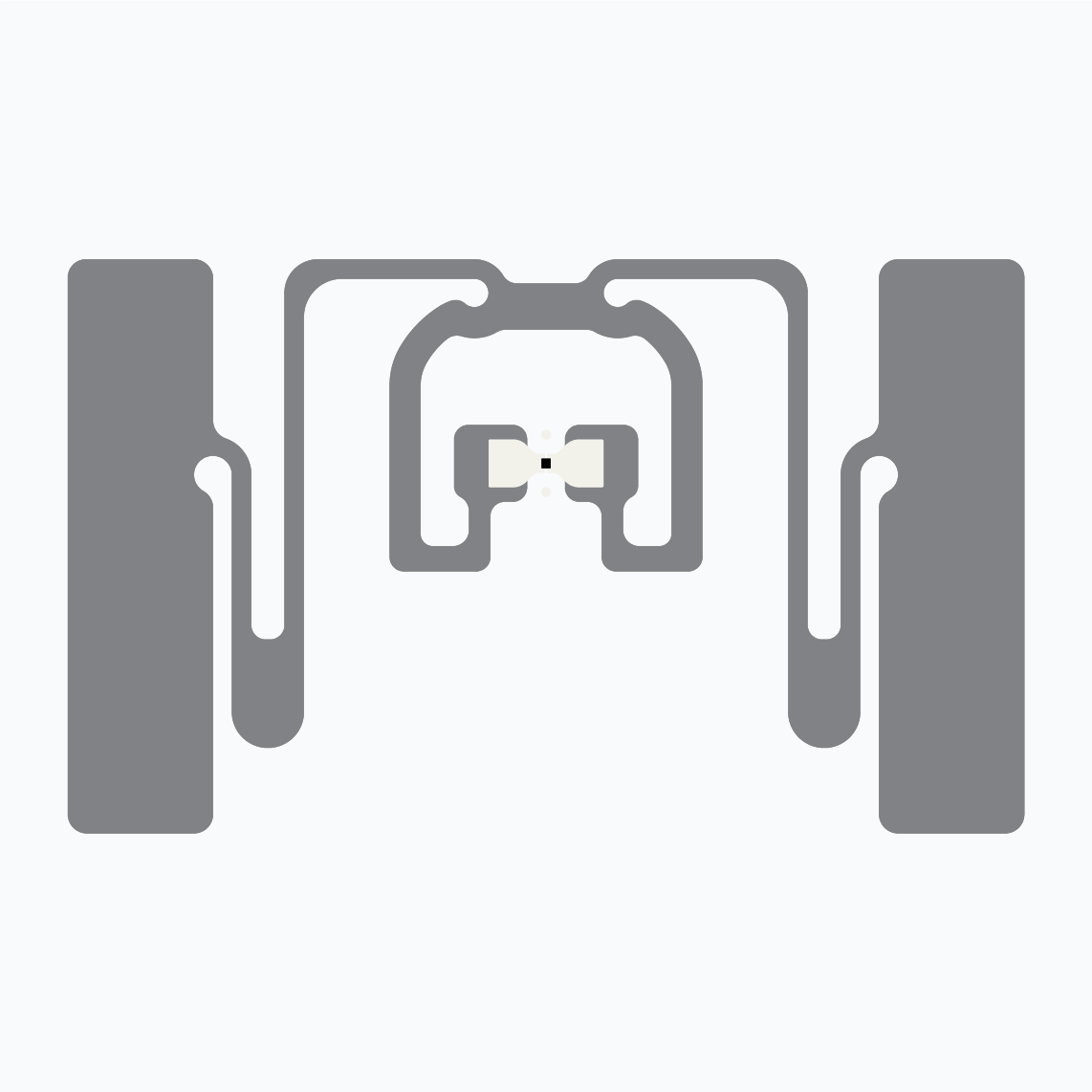

AD-386 M750 is the next generation of Avery Dennison’s popular 50 x 30mm apparel tag, featuring the Impinj M750 chip.

The M750 IC offers up to 2 dBm more read sensitivity than its previous generation, the Monza R6 IC. This translates to improved read distance of up to 4 meters on stacked denim and up to 6 meters on high dielectric materials (PMMA).

AD-386m750 provides 96-bit EPC and 32-bit user memory. The inlay is also available with the Impinj M730 chip, which provides 128-bit EPC. RF performance is comparable between the two chip versions.

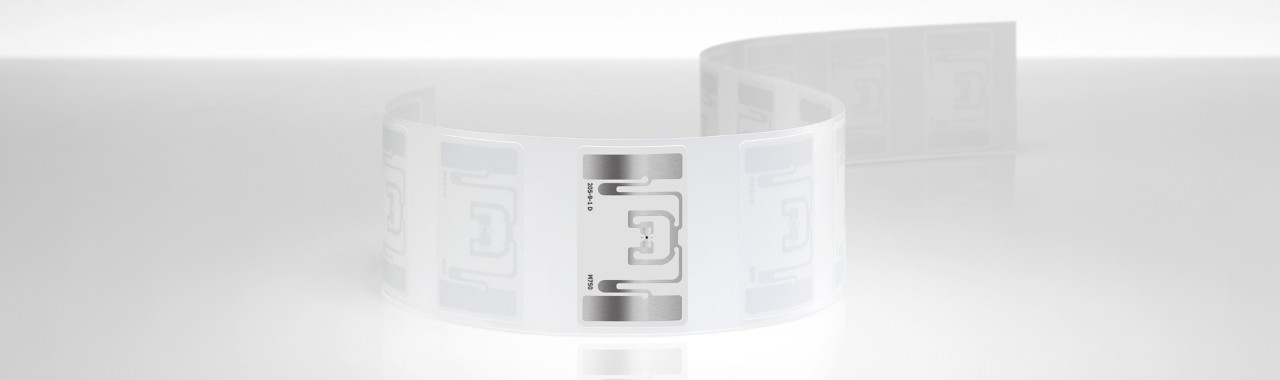

The product is currently offered in dry and wet formats with a 40# paper antenna carrier, as well as a thermal transfer printable paper label.

The inlay is compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment. It is manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University, which awarded Avery Dennison its first ever ARC accreditation for overall quality.
