Quick guide: RFID labels for Apparel
Avery Dennison Smartrac offers the broadest product range for any RFID challenge and ensures consistent quality and performance. Check our RFID product recommendations for the Apparel industry segment.
Industry segments: Apparel & Fashion, Logistics

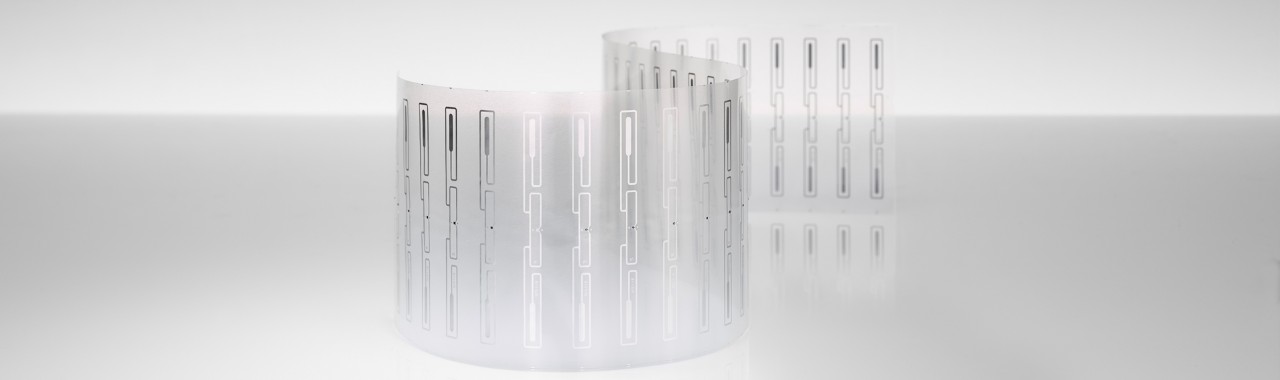

AD-350u8 inlays from Avery Dennison Smartrac provide excellent performance in a wide range of applications. Available in wide-edge leading format, the inlays are proven to exceed 15 meters read distance in a laboratory environment, and meet retail category performance requirements for all listed specs (A, B, C, D, I, K, N, and Q) under Auburn University’s ARC testing program.

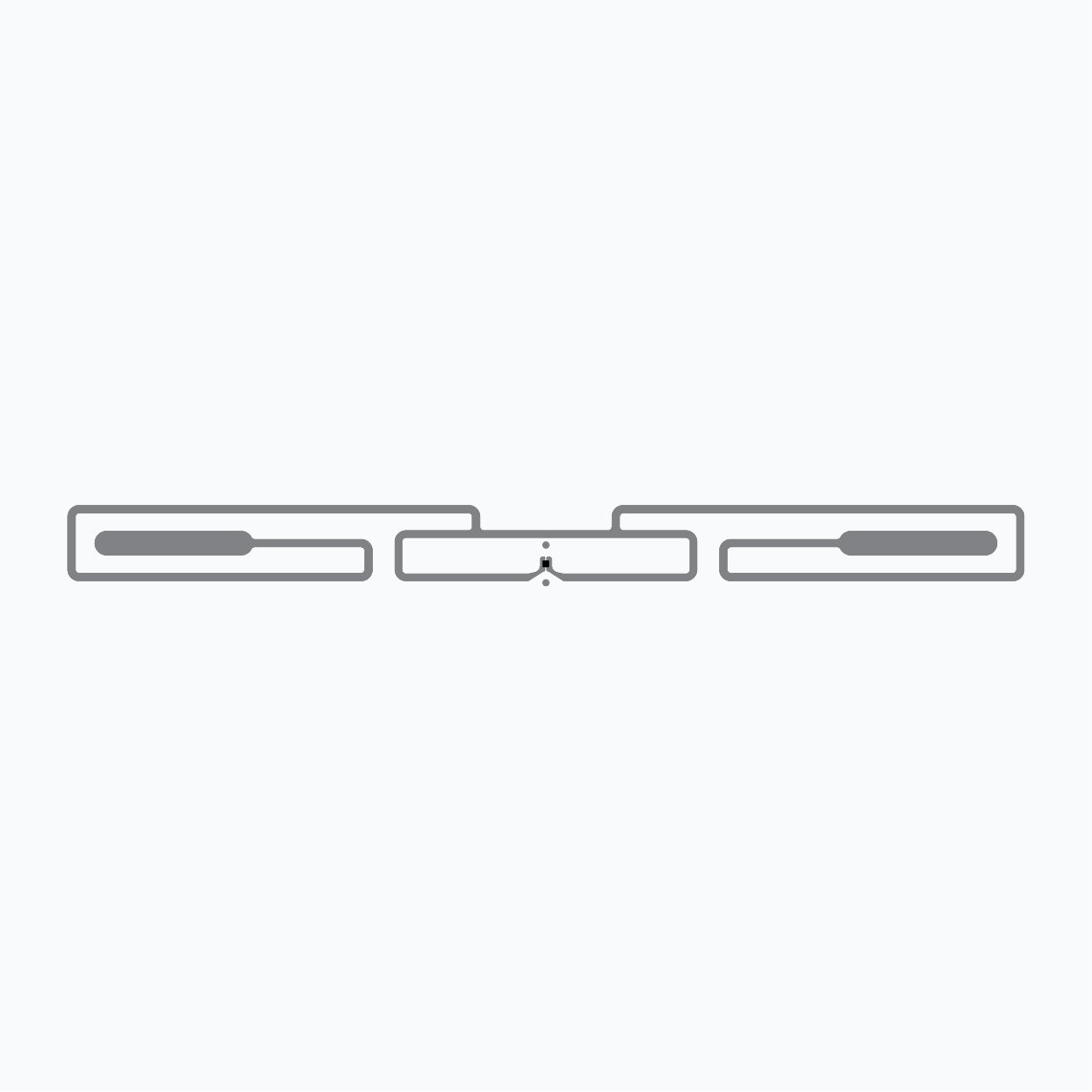

The Gen2 UHF RFID inlays have a slender 76 x 6 mm antenna design and feature UCODE 8 chips from NXP. That chip is equipped with 128 bits of EPC memory and a 96 bit Tag IDentifier (TID) with a 48 bit unique serial number factory-encoded into the TID.
Like all RFID products from Avery Dennison Smartrac, AD-350u8 inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.
Technical features
|
|
---|---|
Chip |
NXP UCODE 8 |
Frequency Band |
UHF 860 - 960 MHz |
Antenna Dimensions | 76 x 6 mm / 2.99 x 0.24 in |
Die Cut Dimensions | 78 x 8 mm / 3.07 x 0.32 in |
EPC Memory | 128 bits |
TID Memory | 96-Bit Tag IDentifier & 48-Bit |
ARC Specification | I, Q |
Product Code | Dry inlay RF601325 / IL-612005 |
Wet inlay RF601326 / IL-612006 | |
Label / sticker RF100614 / IL-611982 |
Please find a comprehensive overview of all features in the data sheet.
