AD-141 U9  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-141 U9

Optimum read ranges in challenging environments

Industry segments: Beauty and Personal Care, Healthcare

AD-141 U9 inlays from Avery Dennison are designed for tagging a wide range of items, particularly beauty & personal care, and pharmaceuticals.

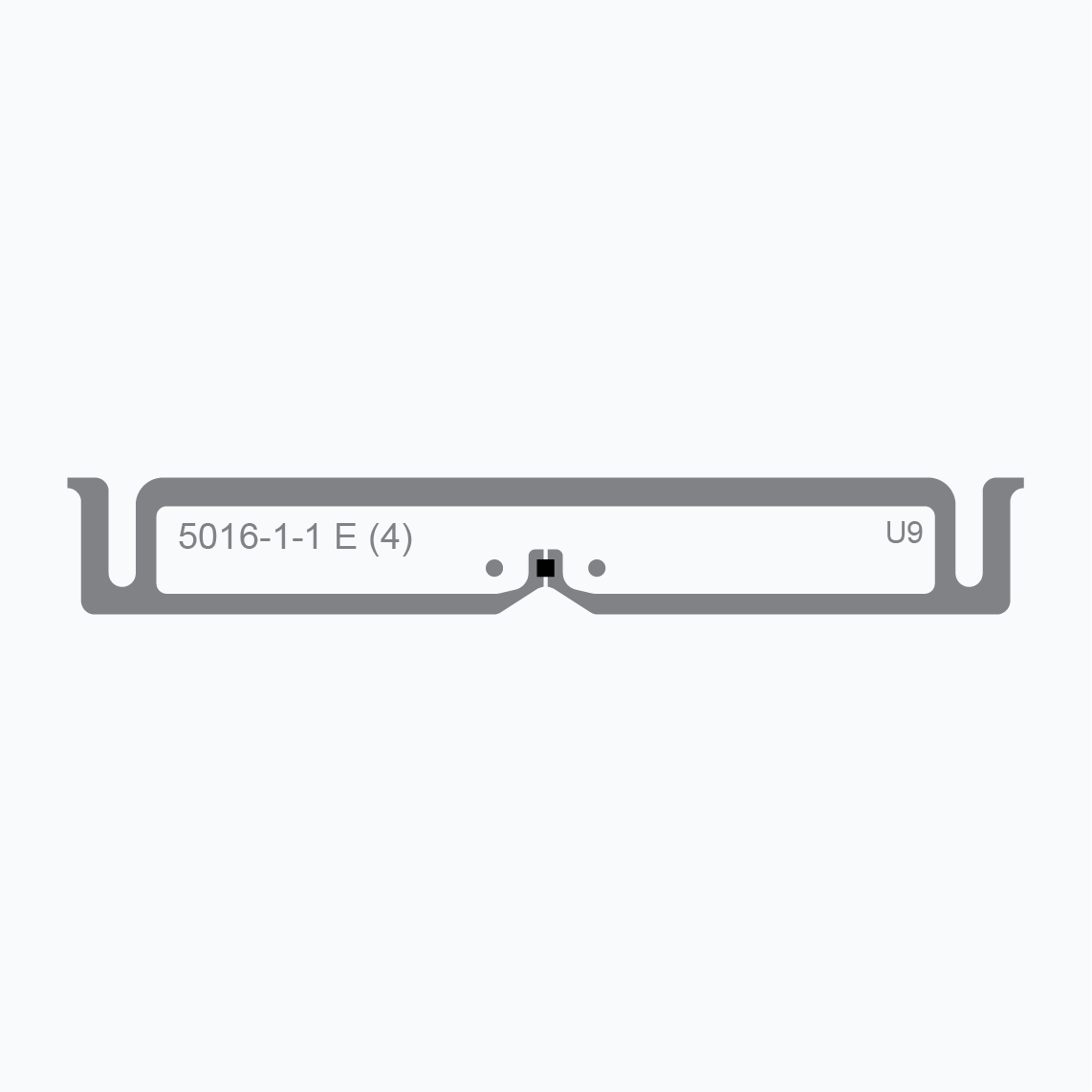

Built for the UHF frequency band, the inlays feature a 4 x 28 mm antenna with a global design. It ensures excellent broadband performance (860-930 MHz).

The slender form factor and rectangular shape further contributes to the versatile use in retail oriented applications to increase inventory accuracy, improve supply chain agility, and enhance visibility across all channels. AD-141 U9 features the UCODE 9 chip that is equipped with 96 bits of EPC memory, including a 96-bit Tag IDentifier (TID) with a 48-bit unique serial number factory-encoded into the TID. Delivery format includes dry.

Like all RFID products from Avery Dennison, AD-141 U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management. This ensures a reliable and state-of-the-art product that meets a variety of application needs, where high performance is a critical parameter.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-141 U9

AD-141 U9

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    4 x 28 mm / 1.10 x 0.16 in
  • Die cut dimensions:
    6 x 30 mm / 0.24 x 1.18 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Dry+ inlay 3008211 / IL-604154
    Wet+ inlay IL-611143
