AD Squarewave  [UHF RFID tag and inlay]

UHF RFID Inlay: AD Squarewave M730

High performance condensed to the max

Industry segments: Automotive, Industrial Applications, Logistics

AD Squarewave inlays and tags are designed for global retail, industrial and supply-chain applications, offering excellent performance not only on low detuning materials such as cardboard and plastic, but also on materials with high dielectric effect. With relatively narrow width, this product has a flat global performance over whole UHF band on variety of materials.

AD Squarewave inlays and tags are a size-optimized 97 mm / 4 inch form factor, making them suitable for use with a wide range of supply chain labels, and are available in dry, wet and label delivery formats.

The AD Squarewave chip offers high performance across different materials and challenging environments due to enhanced adaptive RF tuning features. It is compatible with the global GS1 UHF Gen2v2 standard which ISO/IEC standardized as 18000-63.

Like all RFID products from Avery Dennison, AD Squarewave inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

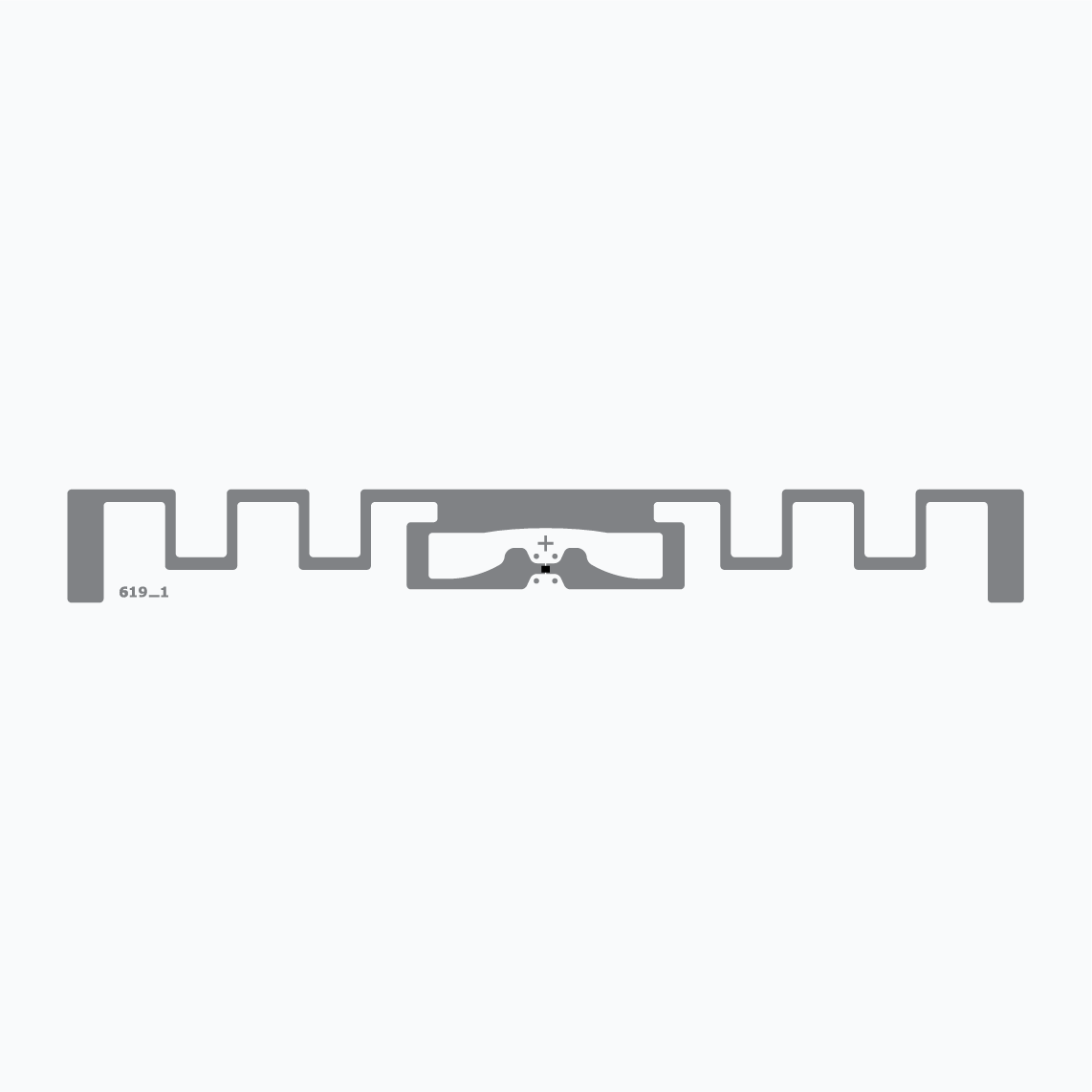

UHF RFID Inlay:  AD Squarewave M730

AD Squarewave M730

  • Chip: Impinj M730
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    93 x 11 mm / 3.66 x 0.43 in
  • Die cut dimensions:
    97 x 15 mm / 3.80 x 0.60 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: P
  • Product code:
    Dry inlay 3007901 / IL-603937
    Wet inlay 3007902 / IL-600036
    Label/sticker 3007903 / IL-603939
    Label/sticker 3007906 / IL-603940
UHF RFID Inlay:  AD Squarewave M730

AD Squarewave M780

  • Chip: Impinj M780
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    93 x 11 mm / 3.66 x 0.43 in
  • Die cut dimensions:
    97 x 15 mm / 3.80 x 0.60 in
  • EPC memory: 496 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Wet inlay 3009038 / IL-604775



UHF RFID Inlay:  AD Squarewave M730

AD Squarewave M781

  • Chip: Impinj M780
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    93 x 11 mm / 3.66 x 0.43 in
  • Die cut dimensions:
    97 x 15 mm / 3.80 x 0.60 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Wet inlay 3009039 / IL-604776
