AD Pure™ Line [Sustainable UHF RFID tags and inlays]

UHF RFID Inlay: AD-23x U9 Pure

Sustainable tags and inlays

Industry segments: Apparel & FashionHealthcareIndustrial ApplicationsLogistics

At Avery Dennison Smartrac we are committed to helping our customers achieve their sustainability objectives, as well as our own. This includes developing RFID inlays and labels with an ultra-low carbon footprint, made using recyclable materials, and delivering entirely plastic-free solutions. By 2030 our product innovation roadmap will deliver a sustainable alternative choice for every label in our portfolio.

Pure™ Line
Pure™ Line RFID inlays and labels are circular ready. Made using ultra low carbon footprint processes, they are 95% or 100% plastic free and recyclable at end of life when attached or embedded on paper and cardboard items*.

*Tested successfully for paper recyclability by third party laboratory, PTS-RH 021:97/2012 method

Up to 90% lower carbon
For RFID labels the etching manufacturing process is the major source of the carbon emissions. Pure™ Line plastic free antennas use innovative manufacturing technologies reducing their carbon footprint between 70-90%**.

**Emissions are measured as part of the PureTM line Life Cycle Analysis (LCA) type III Environmental Production Declaration (EPD) - according to ISO 14020 by Thinkstep (a Sphera company) - 2021.

AD Pure™ Product Line

These inlays are part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-23x U9 Pure

AD-23x U9 Pure 95™

  • Chip: NXP UCode 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 14,5 mm / 2.76 x 0.57 in
  • Die cut dimensions: -
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Wet inlay RF602368 / IL-607854
    Label/sticker RF101076 / IL-605856
    Label/sticker RF101077 / IL-606515


UHF RFID Inlay:  AD-333 U9 Pure

AD-333 U9 Pure 95™

  • Chip: NXP UCode 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 14.5 mm / 2.76 x 0.57 in
  • Die cut dimensions:
    76 x 20 mm / 3.00 x 0.80 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Wet inlay RF602470 / IL-605600
    Label/sticker RF101129 / IL-607397


UHF RFID Inlay:  AD-327 U9 ETSI Pure

AD-327 U9 ETSI Pure 95™

  • Chip: NXP UCode 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    41 x 16 mm / 1.63 x 0.63 in
  • Die cut dimensions:
    44 x 19 mm / 1.75 x 0.75 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Wet inlay RF602351 / IL-605264
    Label/sticker RF101072 / IL-606783
    Label/sticker RF101073 / IL-605485

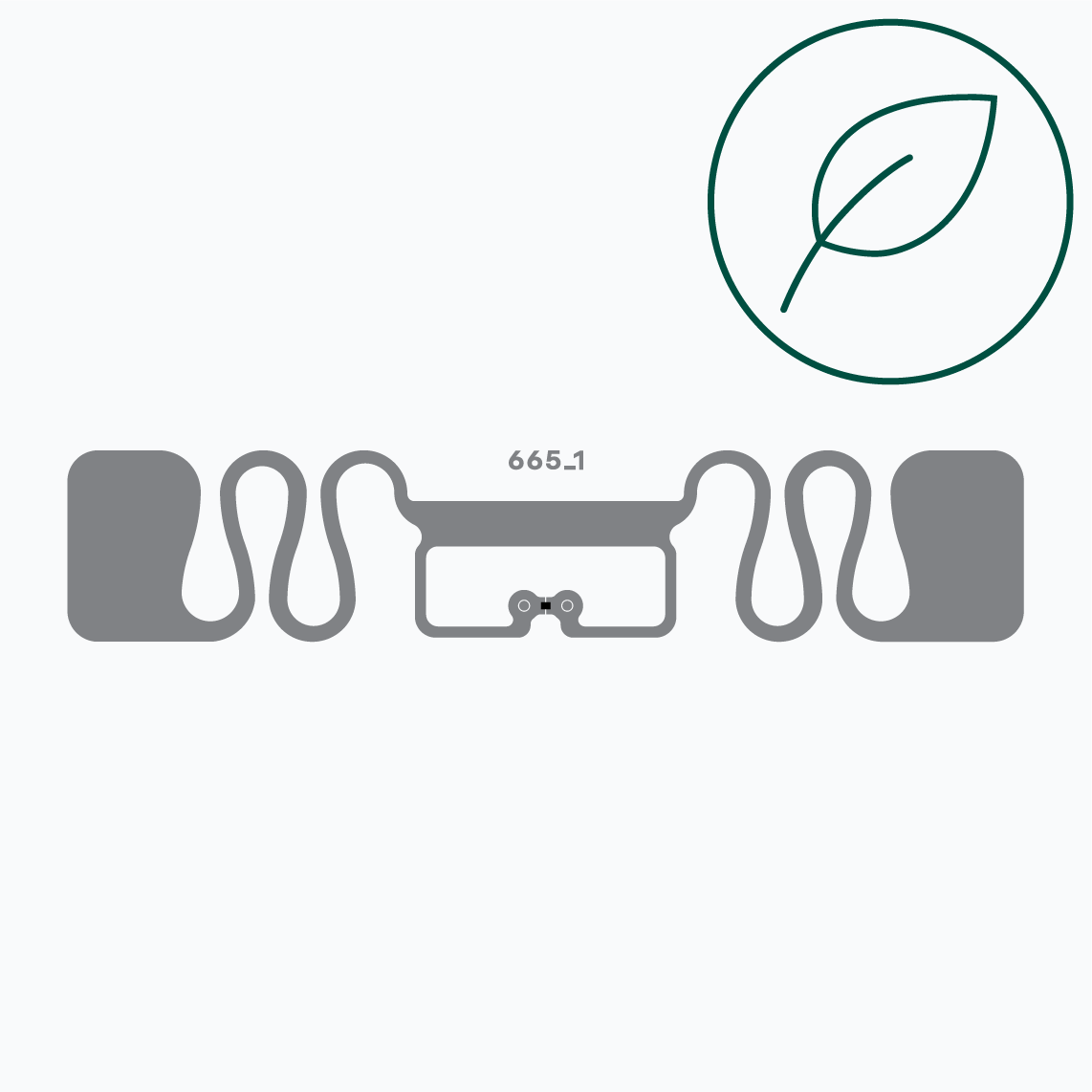

UHF RFID Inlay: Belt, UCODE 9 Pure

Belt, U9 Pure™

  • Chip: NXP UCode 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    70 x 14 mm / 2.75 x 0.55 in
  • Die Cut Dimensions:
    73 x 17 mm / 2.87 x 0.67 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Dry inlay 3008497 / IL-604363
    Wet inlay 3008498 / IL-604364
    Label / sticker 3008485 / IL-604353
    Available also with other paper
UHF RFID Inlay:  AD-312 u9 Pure

AD-312 U9 Pure 95™

  • Chip: NXP UCode 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    41,40 x 29 mm / 1.63 x 1.14 in
  • Die cut dimensions:
    44,45 x 33 mm / 1.75 x 1.30 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • Product code:
    Wet inlay RF603184 / IL-609724
    Label/sticker RF101676 / IL-609564




For detail on our sustainability goals and progress you can find out more on our sustainability pages:
