AD IML (In-Mold Label)  [UHF RFID tag and inlay]

UHF RFID tag and inlay: AD IML (In-Mold Label)

Superior read range on a wide range of dielectrics

Industry segments: Automotive, Apparel & Fashion, Food and Beverage, Indutrial ApplicationsLogistics

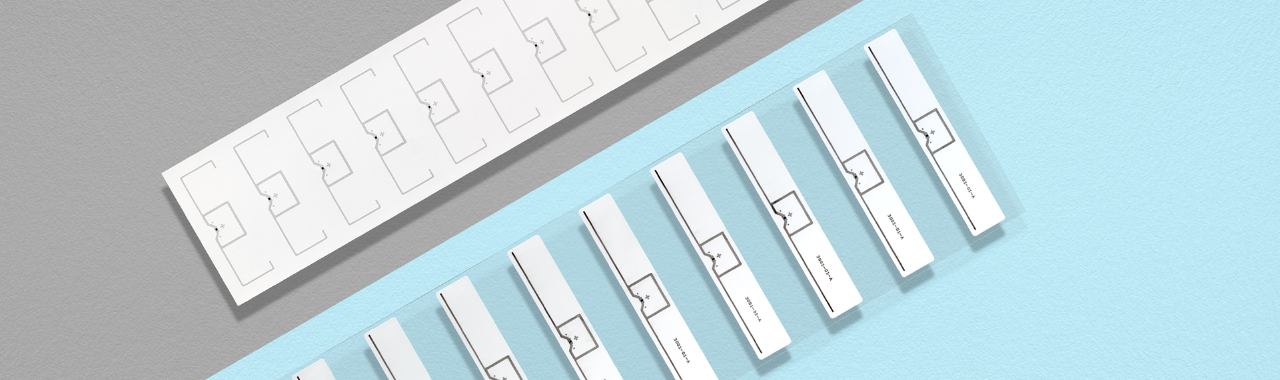

The AD In-Mold Label (IML) product line offers a versatile solution for various industrial and commercial use cases. As an integrated solution, the in-mold labels offer a long lifetime and support the sustainability initiatives by enabling the serialization of reusable plastic items to be reused. The RFID In-Mold Labels are engineered to withstand the rigorous injection molding process, ensuring efficient cycle times and optimal performance across a wide temperature range. Its semi-rigid and optimized design is compatible with Polypropylene (PP).

Applications:
Industry: Reusable containers e.g. plastic pallets, plant trays, shipping containers, waste bin, as well as tools and equipment used in value creation process and any finished or semi-finished Plastic components
Food: Reusable plastic items such as cups, trays and tableware

Use-cases:
Unique digital ID for identifying items throughout their lifetime for a variety of purposes

Industry

  • Supply Chain Management / Container Tracking - Enables supply chain visibility from manufacturing to distribution, including waste management
  • Asset & Item Tracking - Facilitates asset tracking & maintenance scheduling, enables products to have unique digital IDs that can be used to identify the object throughout its lifetime for a variety of purposes

Food

  • Seamless Reuse System in large venues such as sporting events, concerts, and theme parks enabling easy deposit payment & seamless return, reusable item tracking & cycle counting
  • Seamless Reuse System in restaurants & catering offering washing durability, hygiene & quality assurance and digital washing compliance records
  • Reliable Refill System - Refill limits, payment management, and misuse prevention

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs.

Please find a comprehensive overview of all features in the data sheet.

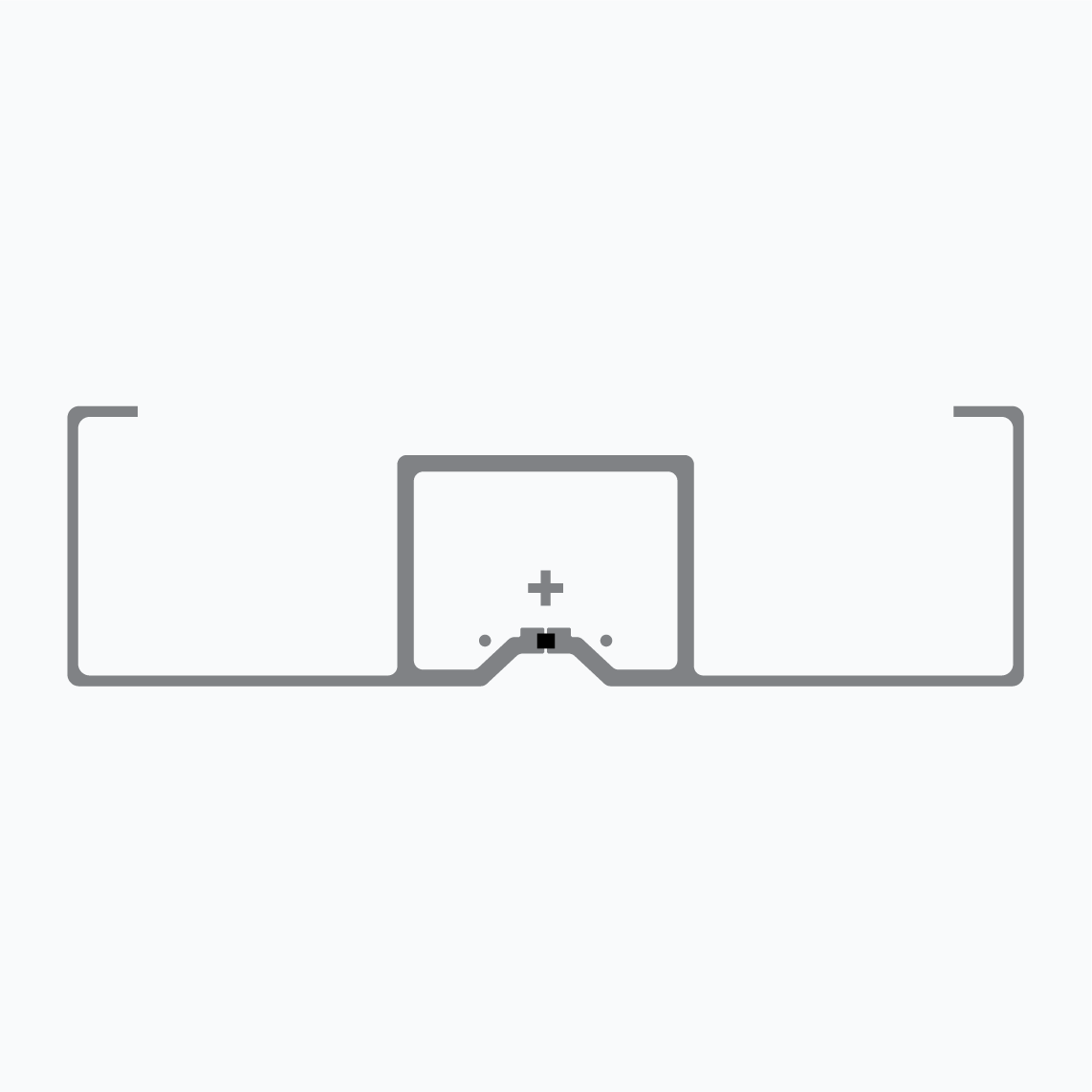

UHF RFID Inlay: ANCHOR U9 IML

AD Anchor U9 IML

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    41 x 12 mm / 1.61 x 0.47 in
  • Die cut dimensions: n/a
  • EPC memory: 96 bits
  • TID memory: 96-Bit Tag Identifier & 48-Bit
  • ARC specification: n/a
  • Product code:
    Dry+ inlay IL-611674

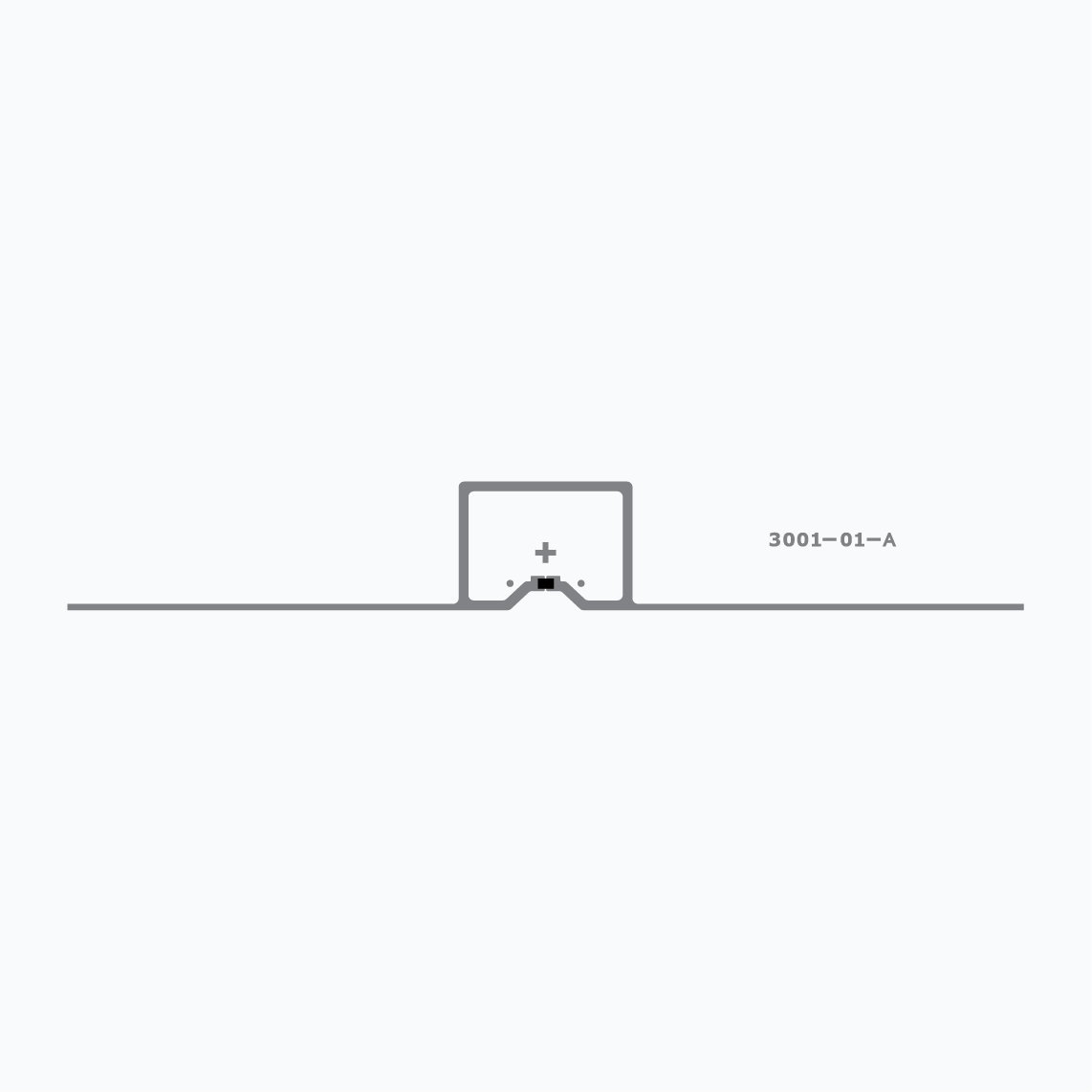

UHF RFID Inlay: LINE U9xe IML

AD Line U9XE IML

  • Chip: NXP UCODE 9xe
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    70 x 9.4 mm / 2.76 x 0.37 in
  • Die cut dimensions: n/a
  • EPC memory: 128 bits
  • TID memory: 96-Bit Tag Identifier & 48-Bit
  • ARC specification: n/a
  • Product code:
    Dry inlay IL-613618
    Dry inlay IL-613619

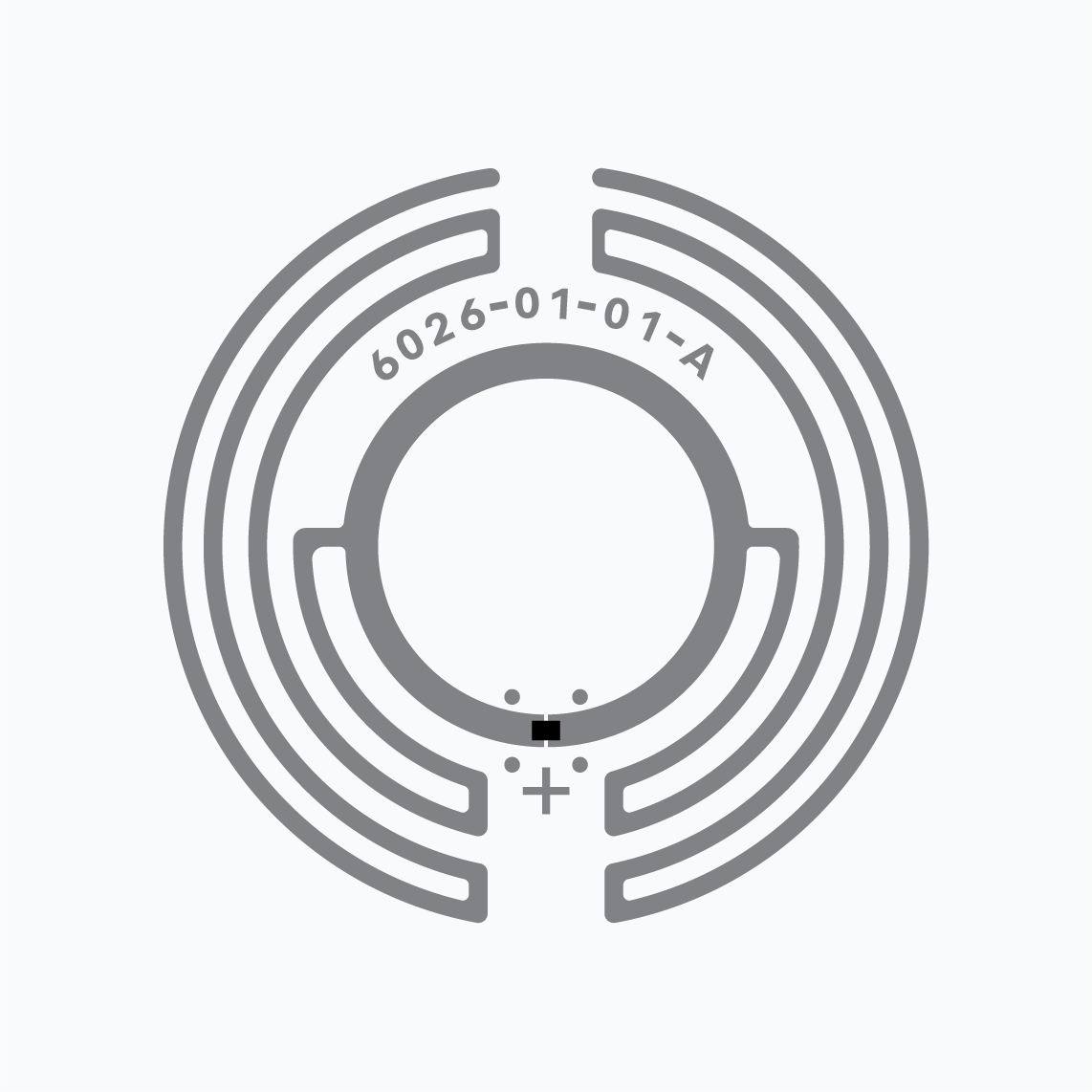

UHF RFID Inlay: SPIRAL U9 IML

AD Spiral U9 IML

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    Ø 24.8 mm / 0.976 in
  • Die cut dimensions:
    Ø 34 mm / 1.34 in
  • EPC memory: 96 bits
  • TID memory: 96-Bit Tag Identifier & 48-Bit
  • ARC specification: n/a
  • Product code:
    Singulated inlay IL-612013
