AD Belt [UHF RFID tag and inlay]

Compact size and high performance in item level retail and supply chain applications

Industry segments: Apparel & Fashion, Automotive, Industrial Applications, Logistics

AD Belt inlays and tags have a compact size, and are designed for global retail, industry and supply-chain applications, offering excellent performance on difficult-to-tag or low-detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments.

AD Belt inlays and tags are available with different chips (see below).

Avery Dennison inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, especially in the retail environment.

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in dry, wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

AD Belt UG2iL

Chip: NXP UCODE G2iL
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.76 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 128 bits
TID Memory: 96-bit
ARC Specification: -
Product Code:
Wet+ inlay 3001963 / IL-602585
Label / sticker 3001964 / IL-602586

Data sheet

AD Belt R6

Chip: Impinj Monza R6
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 10 mm / 2.76 x 0.39 in
Die Cut Dimensions:
73 x 13 mm / 2.87 x 0.51 in
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 96 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: -
Product Code:
Dry inlay 3004228 / IL-602819
Wet inlay 3005058 / IL-602868
Label / sticker 3004230 / IL-602821

Data sheet

AD Belt R6-P

Chip: Impinj Monza R6-P
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 10 mm / 2.76 x 0.39 in
Die Cut Dimensions:
73 x 13 mm / 2.87 x 0.51 in
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 128 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: -
Product Code:
Dry inlay 3005067 / IL-602871
Wet inlay 3005068 / IL-602872
Label / sticker 3005066 / IL-602870

Data sheet

AD Belt U7

Chip: NXP UCODE 7
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 10 mm / 2.76 x 0.39 in
Die Cut Dimensions:
73 x 13 mm / 2.87 x 0.51 in
EPC Memory: 128 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: -

Product Code:
Wet inlay+ 3003011 / IL-602767

Data sheet

AD Belt U7XM

Chip: NXP UCODE 7XM
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 10 mm / 2.76 x 0.39 in
Die Cut Dimensions:
73 x 13 mm / 2.87 x 0.51 in
EPC Memory: 448 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: -
Product Code:
Dry inlay 3005418 / IL-602931
Wet inlay 3005419 / IL-602932
Label / sticker 3005420 / IL-602933

Data sheet

AD Belt U8

Chip: NXP UCODE 8
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.75 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 128 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y, Z
Product Code:
Dry inlay 3006809 / IL-603244
Wet inlay 3006818 / IL-603245
Label / sticker 3006806 / IL-603242

Data sheet

AD Belt U9

Chip: NXP UCODE 9
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.75 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 96 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y, Z
Product Code:
Dry inlay 3008008 / IL-604003
Wet inlay 3008009 / IL-604004
Label / sticker 3008010 / IL-604005

Data sheet

AD Belt U9XM

Chip: NXP UCODE 9XM
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.75 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 256 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: -

Product Code:
Dry inlay 3009486 / IL-609337
Label / sticker 3009485 / IL-609334

Data sheet

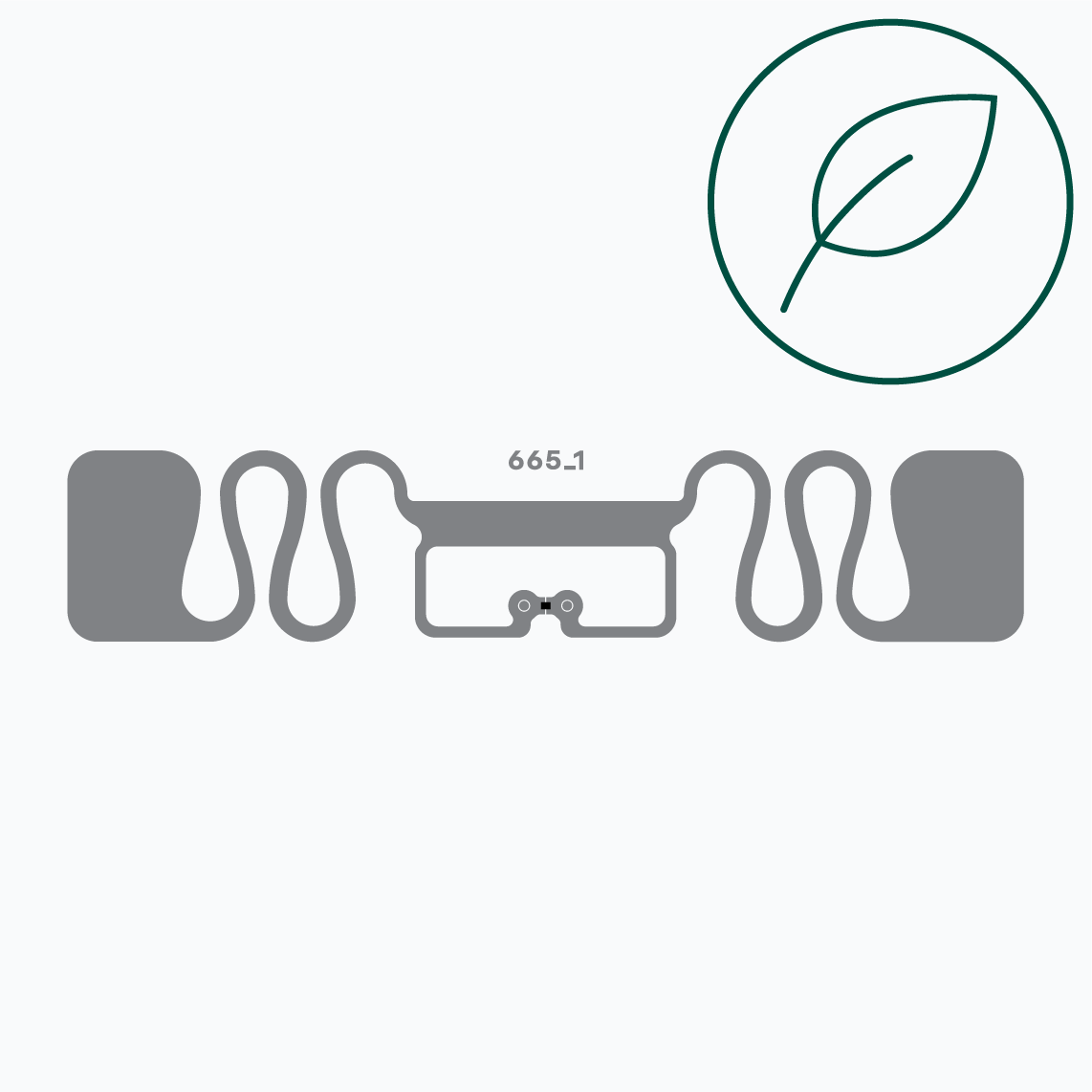

AD Belt U9 Pure™

Chip: NXP UCODE 9
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.75 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 96 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y
Product Code:
Dry inlay 3008497 / IL-604363
Wet inlay 3008498 / IL-604364
Label / sticker 3008485 / IL-604353
Available also with other paper

Data sheet

AD Belt M730

Chip: Impinj M730
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.76 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 128 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y, Z
Product Code:
Dry inlay 3007862 / IL-603906
Wet inlay 3007863 / IL-603907
Label / sticker 3007861 / IL-603905

Data sheet

AD Belt H M730

Chip: Impinj M730
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14.60 mm / 2.76 x 0.58 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 128 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: F, G, H, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y
Product Code:
Dry inlay 3007884 / IL-603924
Label / sticker 3007885 / IL-603925

Data sheet

AD Belt M750

Chip: Impinj M750
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
70 x 14 mm / 2.76 x 0.55 in
Die Cut Dimensions:
73 x 17 mm / 2.87 x 0.67 in
EPC Memory: 96 bits
TID Memory: 96-bit / 48-bit unique serial number
ARC Specification: F, G, I, J, K, L, N, O, Q, R, W1, W2, W3, W4, W5, W6, Y, Z
Product Code:
Dry inlay 3007491 / IL-603668
Wet inlay 3007534 / IL-603698
Label / sticker 3007492 / IL-603669
