AD Web U9 Pure™ [UHF RFID tag and inlay]

UHF RFID Inlay: AD Web U9 Pure™

Sustainable and reliable RFID for item-level identification, optimized in size and shape for apparel applications

Industry segments: Apparel & Fashion, Industrial Applications Logistics, Other Retail

AD Web U9 Pure™ enables unique item identification, making it ideal for item-level retail applications, including apparel and home essentials. Its compact design integrates easily into apparel hangtags while ensuring reliable readability and strong performance, even when items are stacked closely together.

Engineered for high performance in retail, logistics, and supply chain environments, AD Web U9 Pure™ inlays and tags deliver consistent results in demanding conditions. They have successfully met multiple Auburn University RFID Lab ARC specifications, demonstrating proven performance for apparel applications.

AD Web U9 Pure™ tags and inlays are globally deployable, complying with frequency regulations across key regions, including the US (FCC), Europe (ETSI), and Asia, making them a reliable choice for retailers and brand owners worldwide.

Sustainability
Sustainable while Maintaining the Overall Performance

100% Plastic Free - produced via innovative antenna manufacturing technology where aluminum antenna is made directly on a paper carrier

70-90% Lower Carbon Footprint - enabled by innovative antenna manufacturing method (compared to traditional etching method)

Reduced Materials & Recycling Excess Materials - enabled by the manufacturing process

Recyclable in Paper & Cardboard Recycling Streams –

  • Europe: verified by a third-party laboratory in the EU against Cepi Recyclability Test Method Version 3 (Part I: Recycling mill with conventional process and PTS-RH 021:97/2012.
  • The USA: the hang tag construction is certified by Western Michigan University against SBS-E Part I (repulpability) and Part II (recyclability). How2Recycle® has “pre-qualified**” the RFID construction when applied to a paper hang tag and determined that the structure is eligible  for a widely recyclable label.

EU PPWR Ready - a plastic-free component, simplifying compliance with upcoming Plastic Packaging Waste Regulations and recycled content targets.

Quality
Quality & Environmental Compliance: Compliant with ISO

9001:2015 Quality Management and ISO 14001:2015

AD Pure™ Product Line

This inlay is part of the AD Pure™ range, Avery Dennison's portfolio of the new generation of RFID inlays and labels with lowest possible carbon footprint currently in the market. The pure aluminum PET-free antennas are manufactured with innovative technologies allowing 70-90% lower carbon footprint compared to traditional etching. Like all RFID products from Avery Dennison, The Pure™ inlays are manufactured according to industry’s highest quality standards as confirmed by the RFID Lab at Auburn University and are available in wet and label formats.

Please find a comprehensive overview of all features in the data sheet.

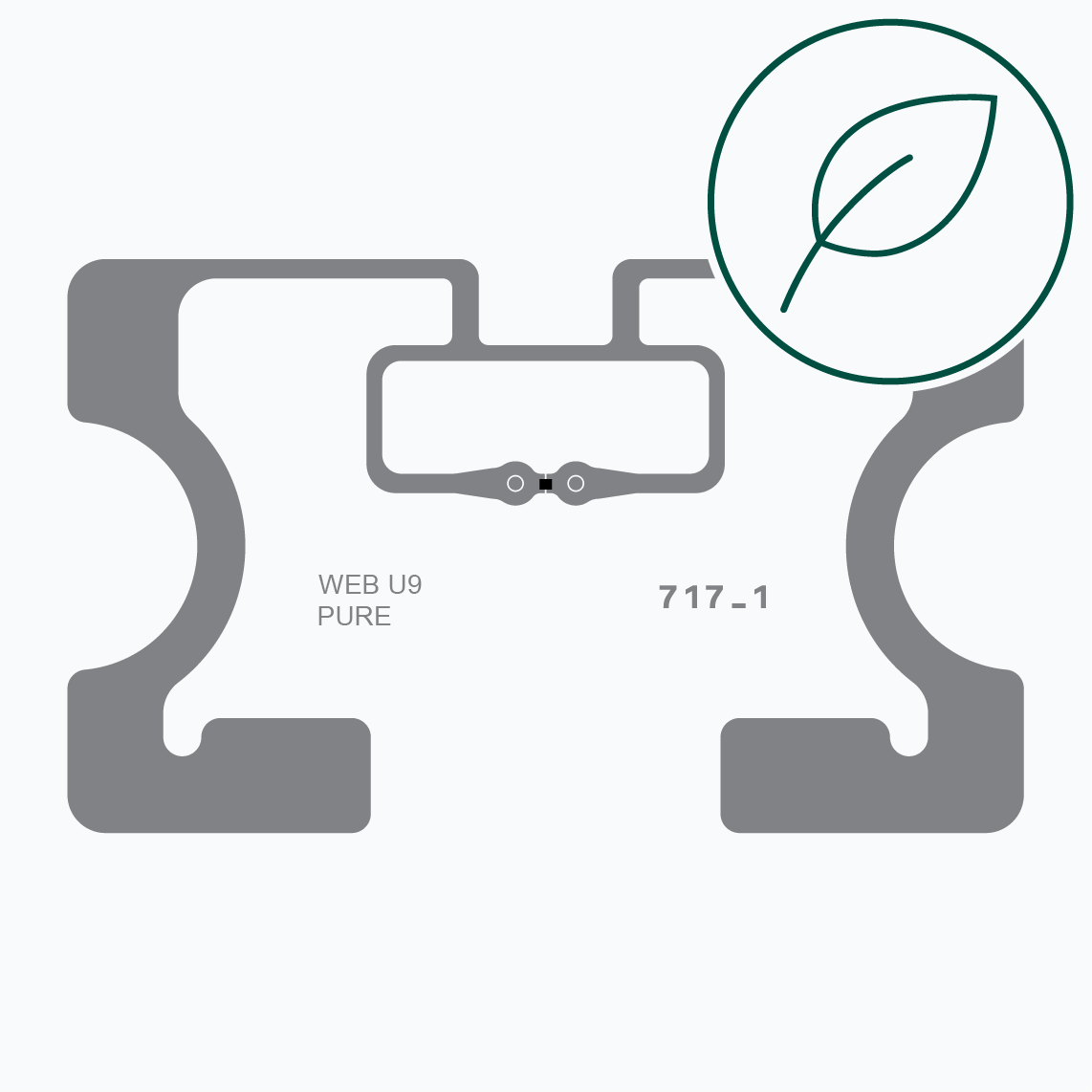

UHF RFID Inlay:  AD Web U9 Pure™

AD Web U9 Pure™

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 33 mm / 2.13 x 1.30 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification
  • Dry inlay  IL-614642
    Label / sticker  IL-614643
