AD Sonic [UHF RFID tag and inlay]

UHF RFID Inlay: AD Sonic U9 FCC

Robust and compact with high performance

Industry segments: Apparel & Fashion, LogisticsOther Retail

AD Sonic UHF RFID inlays from Avery Dennison Smartrac are designed as a compact, robust and high performing solution.  Ideal for apparel and retail applications, AD Sonic inlays and tags feature a 44 x 20 mm antenna size.

Like all RFID products from Avery Dennison Smartrac, AD Sonic inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Avery Dennison Smartrac inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD Sonic U9 FCC

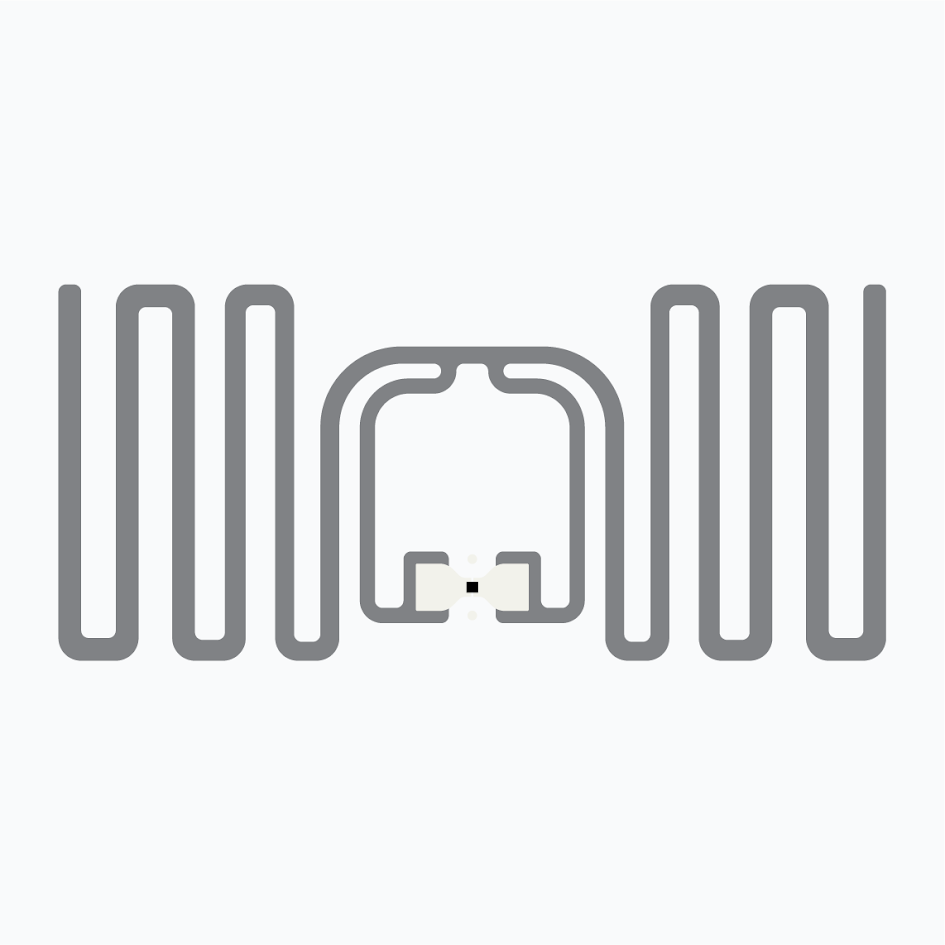

AD Sonic U9 FCC

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    44 x 20 mm /  1.73 x  0.79 in
  • Die cut dimensions:
    46 x 22 mm / 1.81 x 0.87 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, O, Q, R, W2, W5, W6, Y2
  • Product code:
    Dry inlay IL-609607
    Wet inlay IL-609603
    Label / sticker IL-609608
UHF RFID Inlay:  AD Sonic M830

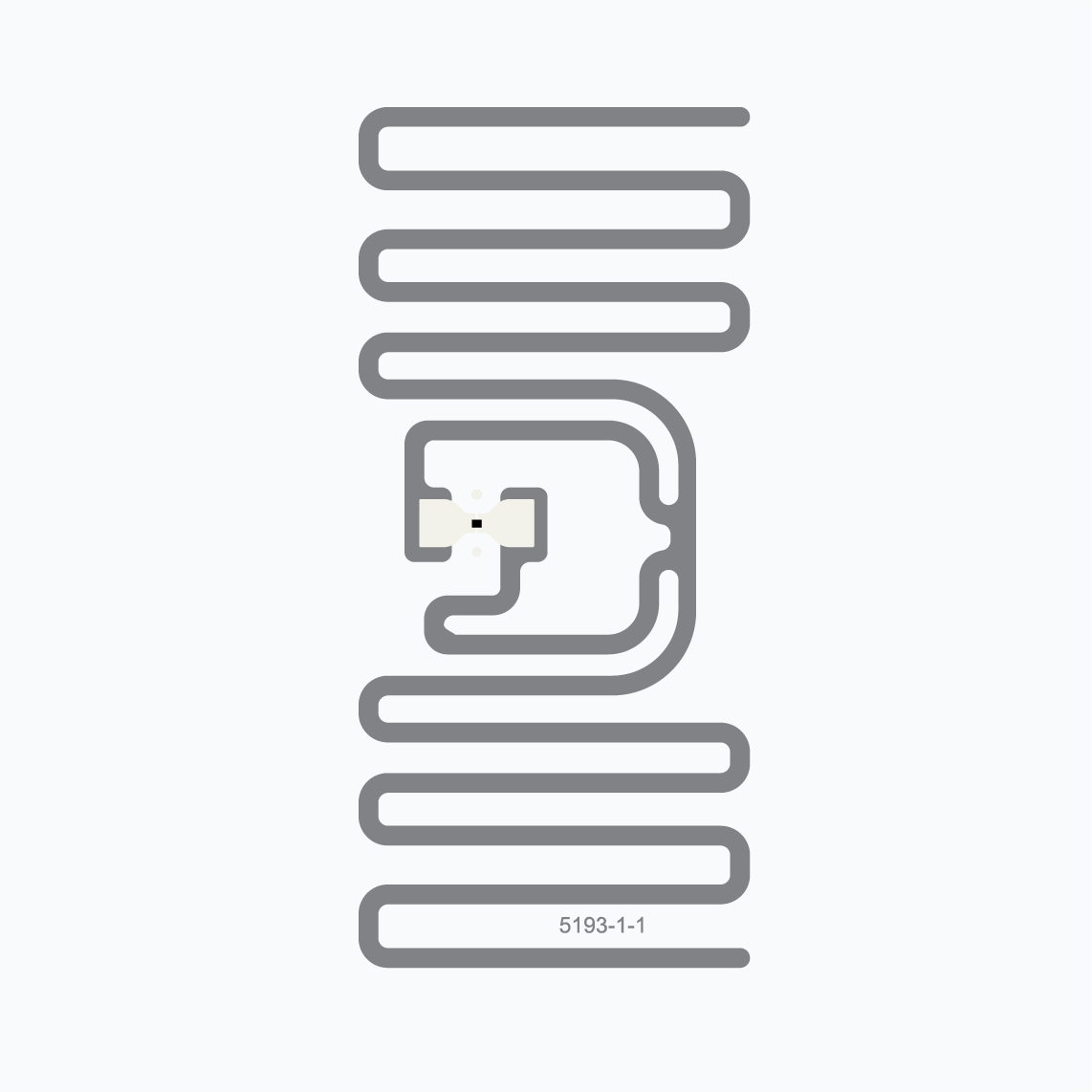

AD Sonic M830

  • Chip: Impinj M830
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    44 x 20 mm /  1.73 x  0.79 in
  • Die cut dimensions:
    46 x 22 mm / 1.81 x 0.87 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification
  • Product code:
    Dry inlay IL-610465
    Wet inlay IL-610473
    Label / sticker IL-610470
