AD Shortdipole [UHF RFID tag and inlay]

Excellent global performance on various materials

Industry segments: Apparel & Fashion, Industrial Applications, Logistics

Avery Dennison Smartrac Shortdipole inlays and tags are designed and optimized for global retail, industry and supply chain applications, offer excellent global performance also on lower detuning materials like cardboard and plastic.

Shortdipole inlays and tags are a size-optimized 100 mm / 4 inch form factor, making them suitable for use with a wide range of supply chain labels, and are available in dry, wet and paper tag delivery formats. They are available with different IC's (see below).

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs, enhancing RFID usage for difficult-to-tag materials.

Please find a comprehensive overview of all features in the data sheet.

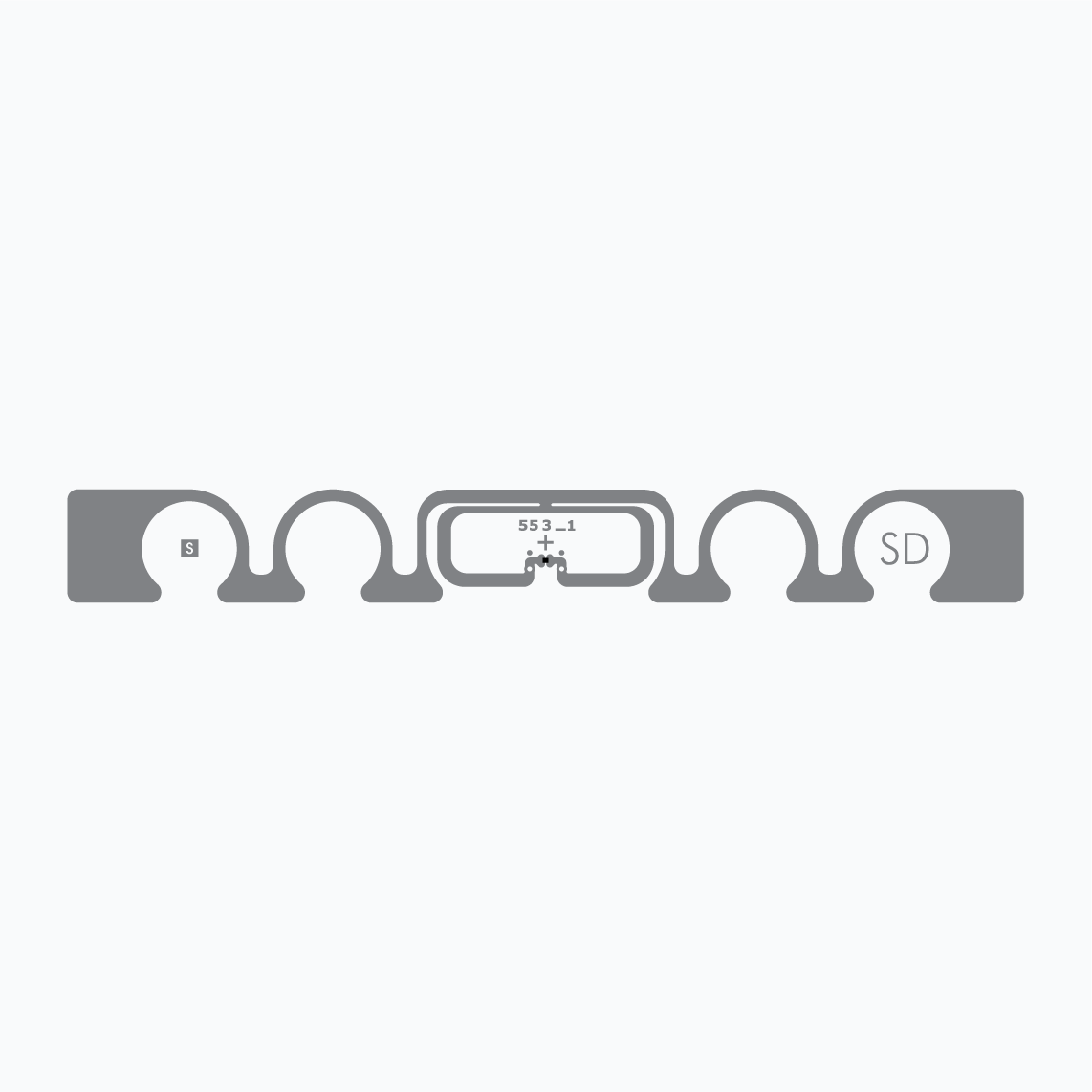

AD Shortdipole UG2iL

Chip: NXP UCode G2iL
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
93 x 11 mm / 3.66 x 0.43 in
Die Cut Dimensions:
97 x 15 mm / 3.82 x 0.59 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Wet+ inlay 3002043 / IL-602615

Data sheet

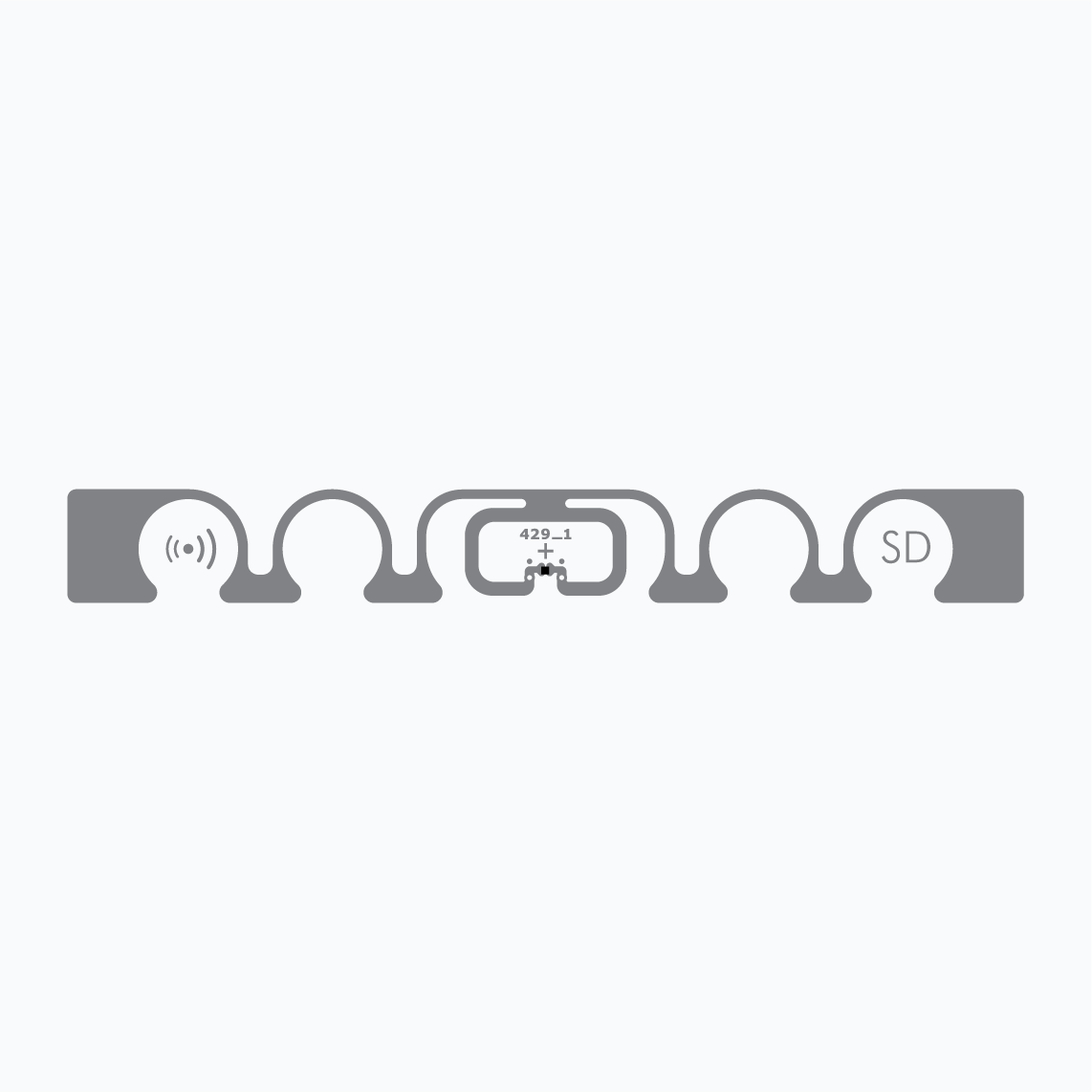

AD Shortdipole R6-P

Chip: Impinj Monza R6-P
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
93 x 11 mm / 3.66 x 0.43 in
Die Cut Dimensions:
97 x 15 mm / 3.82 x 0.59 in
EPC Memory: 128, 32 bits
TID Memory: available
ARC Specification: -
Product Code:
Dry+ inlay 3005076 / IL-602879
Wet+ inlay 3005077 / IL-602880

Data sheet

AD Shortdipole 4D

Chip: Impinj Monza 4D
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
93 x 11 mm / 3.66 x 0.43 in
Die Cut Dimensions:
97 x 15 mm / 3.82 x 0.59 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Wet inlay 3001974 / IL-602588

Data sheet

AD Shortdipole U7

Chip: NXP UCode 7
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
93 x 11 mm / 3.66 x 0.43 in
Die Cut Dimensions:
97 x 15 mm / 3.82 x 0.59 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: -
Product Code:
Dry+ inlay 3002652 / IL-602753
Wet+ inlay 3002653 / IL-602754
Label / sticker 3002654 / IL-602755

Data sheet

AD Shortdipole R6

Chip: Impinj Monza R6
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
93 x 11 mm / 3.66 x 0.43 in
Die Cut Dimensions:
97 x 15 mm / 3.82 x 0.59 in
EPC Memory: 96 bits
TID Memory: available
ARC Specification: -
Product Code:
Dry+ inlay 3004232 / IL-602822
Wet+ inlay 3004272 / IL-602824

Data sheet

AD Shortdipole U8

Chip: NXP UCode 8
Frequency Band:
UHF (860-960 Mhz)
Antenna Dimensions:
93 x 11 mm / 3.66 x 0.43 in
Die Cut Dimensions:
97 x 15 mm / 3.82 x 0.59 in
EPC Memory: 128 bits
TID Memory: available
ARC Specification: P
Product Code:
Dry+ inlay 3007065 / IL-603406
Wet inlay 3007066 / IL-603407
Label / sticker 3007067 / IL-603408
Label / sticker 3007068 / IL-603409
