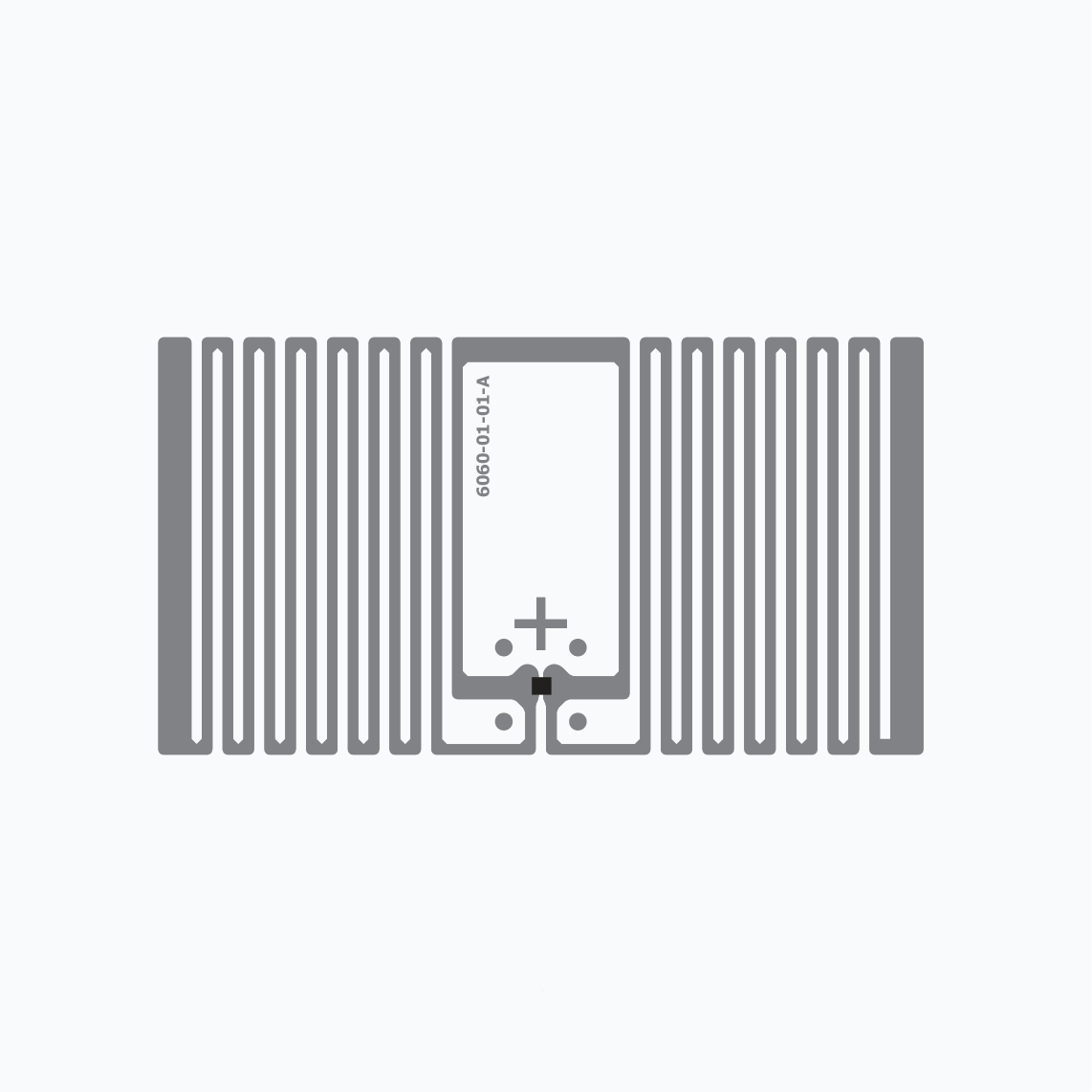

AD Presto (AD-19x, Bling)  [UHF RFID tag and inlay]

UHF RFID Inlay: Presto

Exceptional performance across a wide range of dielectrics

Industry segments: Apparel & Fashion, Beauty & Personal Care, Healthcare

AD Presto RAIN UHF inlays and tags are specially designed for tagging a wide range of small products such as jewelry, cosmetics, sunglasses and pharmaceutical applications and offer excellent performance.

AD Presto inlays tiny 22 x 12.5 mm size allows the inlays and tags to be easily converted into small sized hangtags of labels. The inlay is a global design with excellent broadband performance (860-930 MHz) that can achieve up to 4 meters read distance on tagged surfaces such as cardstock and plastic.

The AD Presto design is available with several IC options: Impinj Monza R6, Monza R6-P, M730 and M750, as well as NXP UCODE 8 and 9. AD Presto products are available in dry, wet and label delivery formats.

Like all RFID products from Avery Dennison Smartrac, AD Presto inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay: AD-190u8

AD-190u8

  • Chip: NXP UCODE 8
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 13 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    24 x 16 mm / 0.95 x 0.61 in
    32 x 15 mm / 1.25 x 0.60 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Dry inlay RF601393
    Wet inlay RF601283
    Label / sticker RF100600
UHF RFID Inlay: AD-191r6-P

AD-191r6-P

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 13 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    24 x 16 mm / 0.95 x 0.61 in

  • EPC Memory: 128 bits
  • TID Memory: 48-bit
  • Product Code:
    Dry inlay RF601419 / IL-603741
    Wet inlay RF601420 / IL-603742


UHF RFID Inlay: AD-192, M730

AD-192 M730

  • Chip: Impinj M730
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 13 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    24 x 16 mm / 1.00 x 0.60 in

  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Dry+ inlay RF602397 / IL-607934
    Wet inlay RF602398 / IL-605202
    Label/sticker RF101097 / IL-605854
UHF RFID Inlay: Bling, Monza R6

Bling R6

  • Chip: Impinj Monza R6
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 12 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    25 x 15 mm / 1.00 x 0.60 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Dry inlay 3005454 / IL-602936


UHF RFID Inlay: Bling, Monza R6-P

Bling R6-P

  • Chip: Impinj Monza R6-P
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 12 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    n/a
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Wet inlay 3006271 / IL-603046


UHF RFID Inlay: Bling, M730

Bling M730

  • Chip: Impinj M730
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 12 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    25 x 15 mm / 1.00 x 0.60 in
  • EPC Memory: 128 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Dry inlay 3008312 / IL-604230
    Wet inlay 3008319 / IL-604234
    Label / sticker 3008320 / IL-604235
UHF RFID Inlay: AD Presto UCODE9

AD Presto U9

  • Chip: NXP UCODE 9
  • Frequency Band:
    UHF (860-960 Mhz)
  • Antenna Dimensions:
    22 x 13 mm / 0.9 x 0.5 in
  • Die Cut Dimensions:
    24 x 16 mm / 0.95 x 0.61 in
    32 x 16 mm / 1.25 x 0.60 in
  • EPC Memory: 96 bits
  • TID Memory: 96-bit / 48-bit unique serial number
  • Product Code:
    Dry Inlay+ IL-609848
    Wet inlay IL-609849
    Label / sticker IL-609847
