AD Force (AD-38x)  [UHF RFID tag and inlay]

UHF RFID tag and inlay: AD Force (AD-38x)

Superior read range on a wide range of dielectrics

Industry segments: Apparel & FashionLogistics

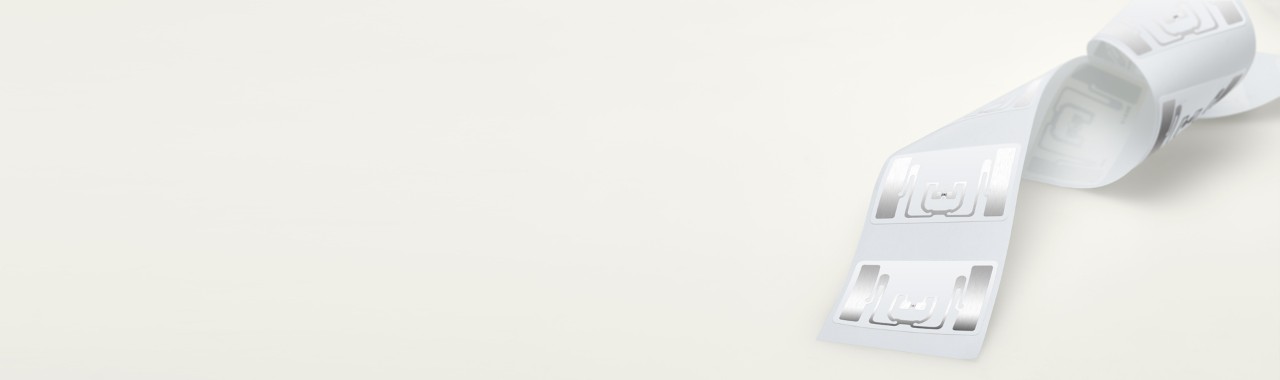

The AD Force UHF RFID inlay family from Avery Dennison Smartrac includes a portfolio of 11 unique inlay designs sharing the same 50 x 30mm form factor but vary in chip type. Several designs within the family are available in both wide edge leading (WEL) and narrow edge leading (NEL) orientations. The specific chip/antenna design combination of each tag will provide a level of performance, memory and other features suitable for a wide variety of RFID tagging applications including supply chain, inventory & logistics, apparel and home essentials.

To learn more about a specific design within the AD Force family, click on the corresponding link to access a product data sheet of that item.

The inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, which ensure a reliable and state-of-the-art product that meets a variety of application needs. Like all RFID products from Avery Dennison Smartrac, AD Force  inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find an overview of all products within the AD Force family below.

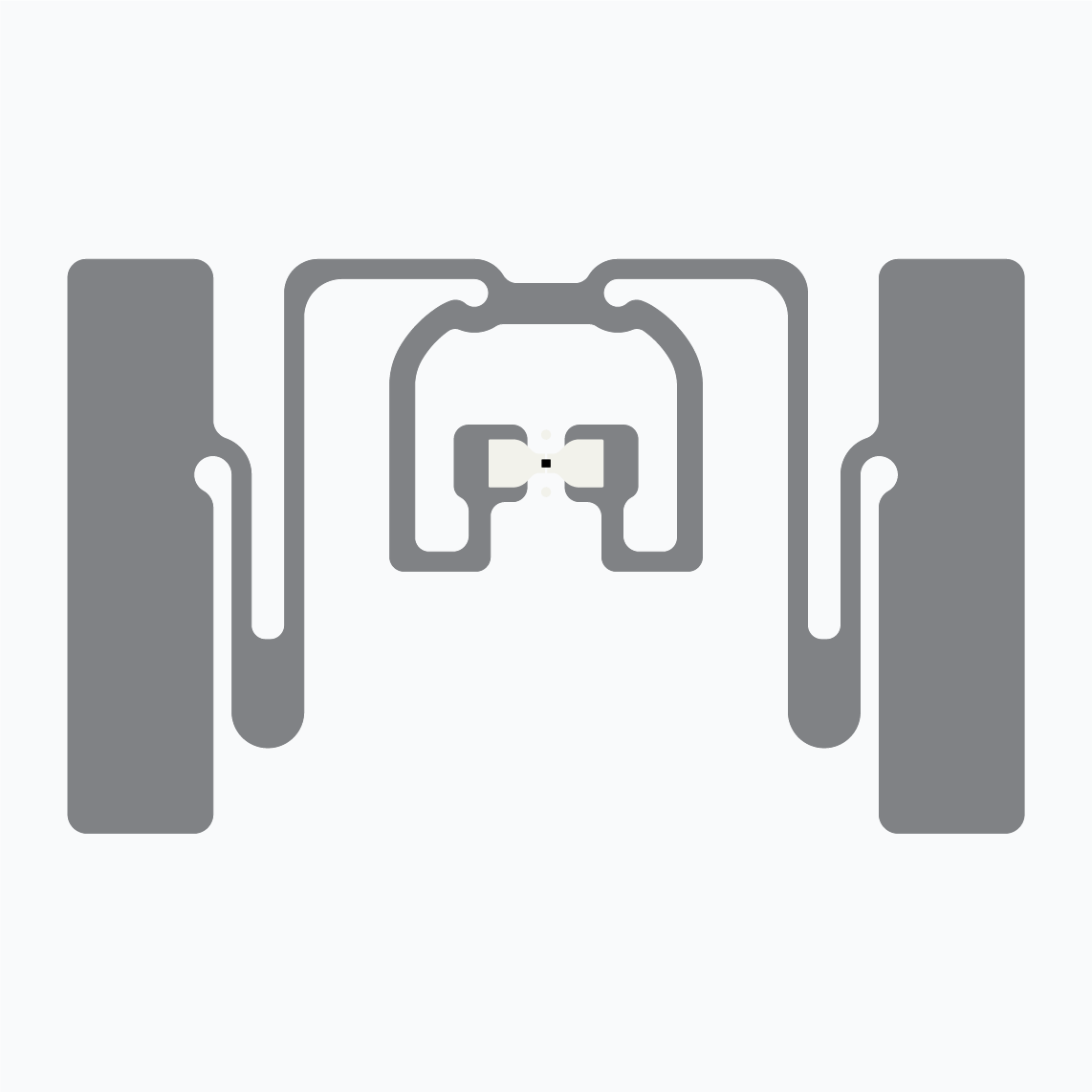

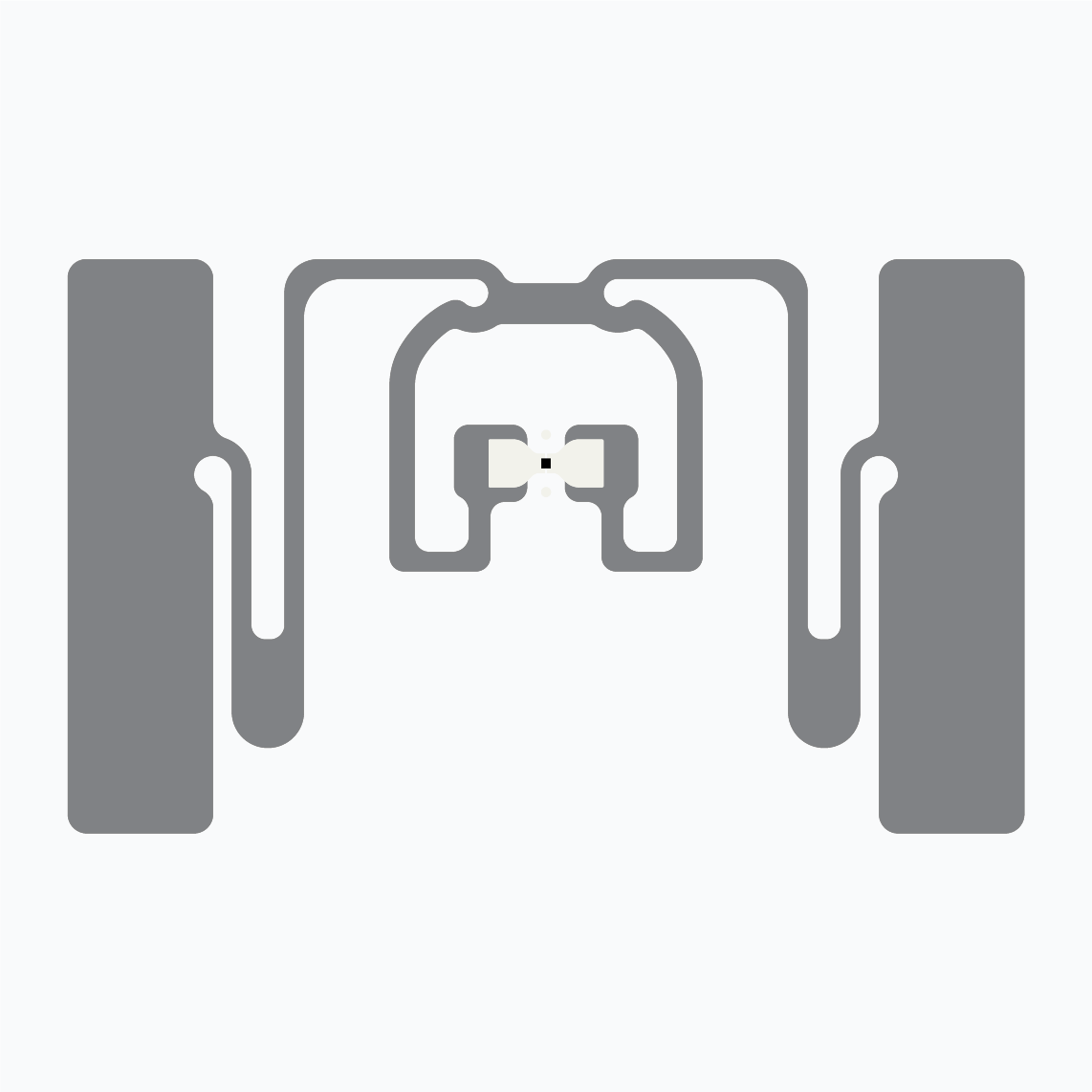

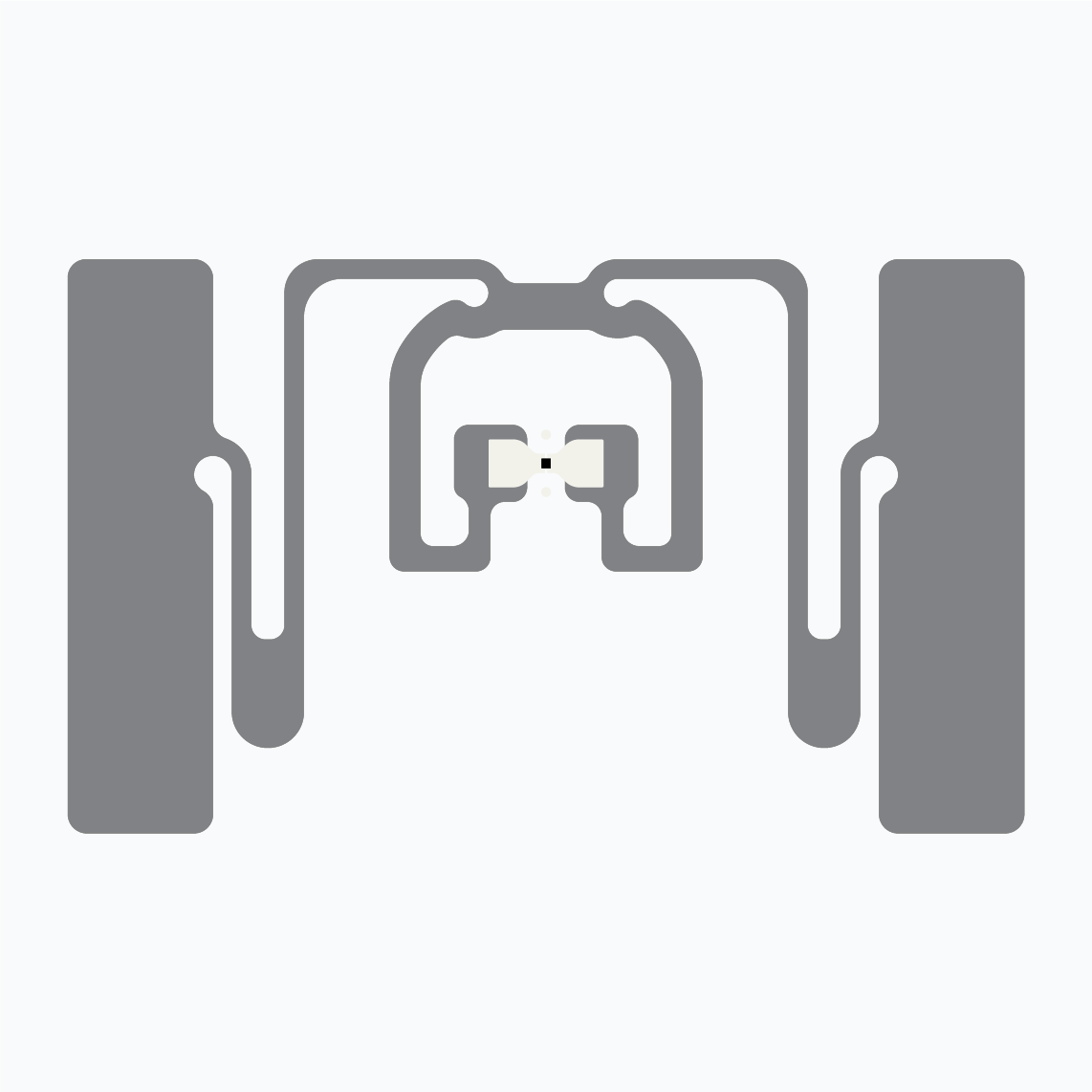

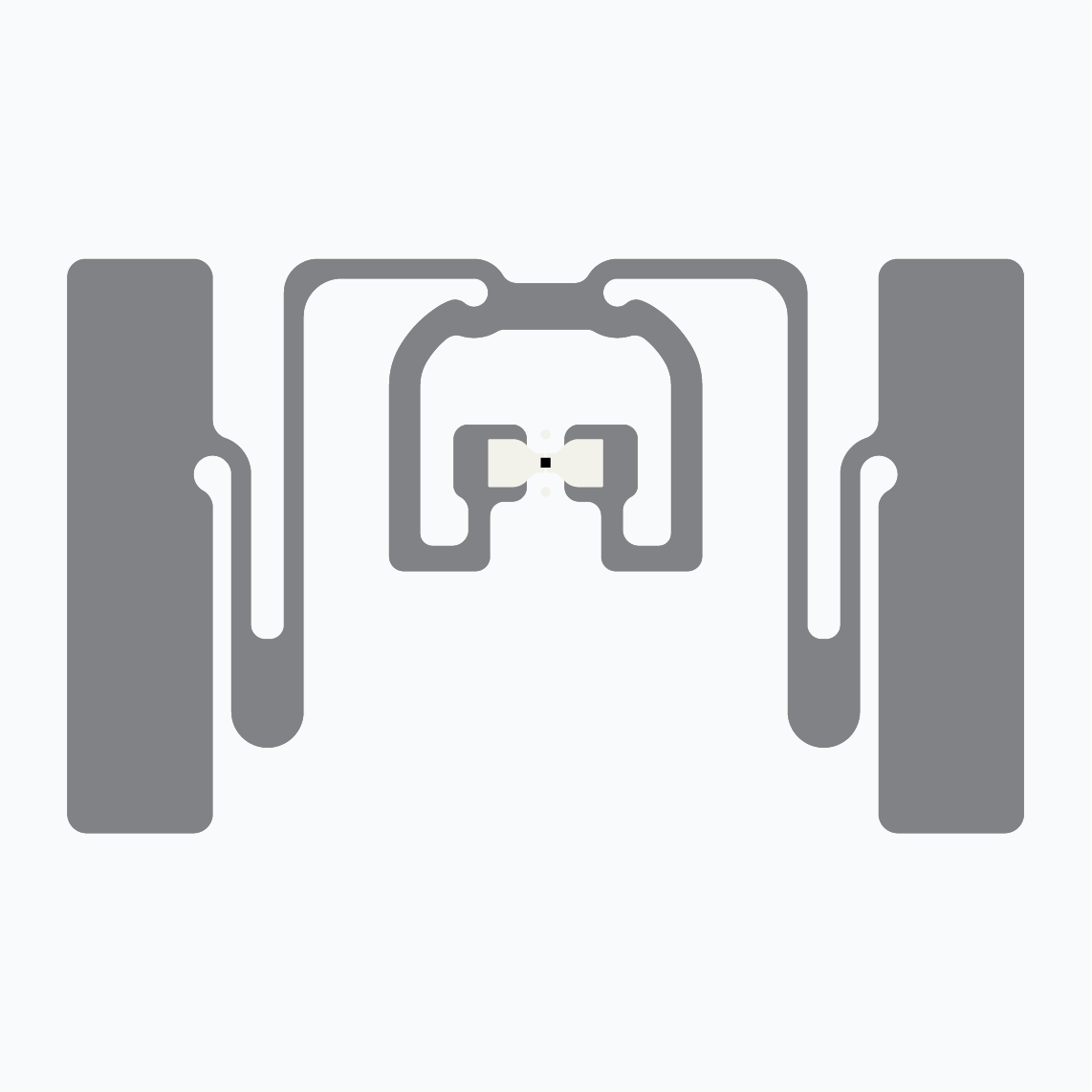

UHF RFID Inlay: AD-383u7 WEL

AD-383u7 WEL

  • Chip: NXP UCODE 7
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
    57 x 38 mm / 2.25 x 1.50 in
  • EPC memory: 128 bits
  • TID memory: 96-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF600527 / IL-604399
    Wet inlay RF600465 / IL-604400
    Label / sticker RF100350 / IL-604401
UHF RFID Inlay: AD-383u7 NEL

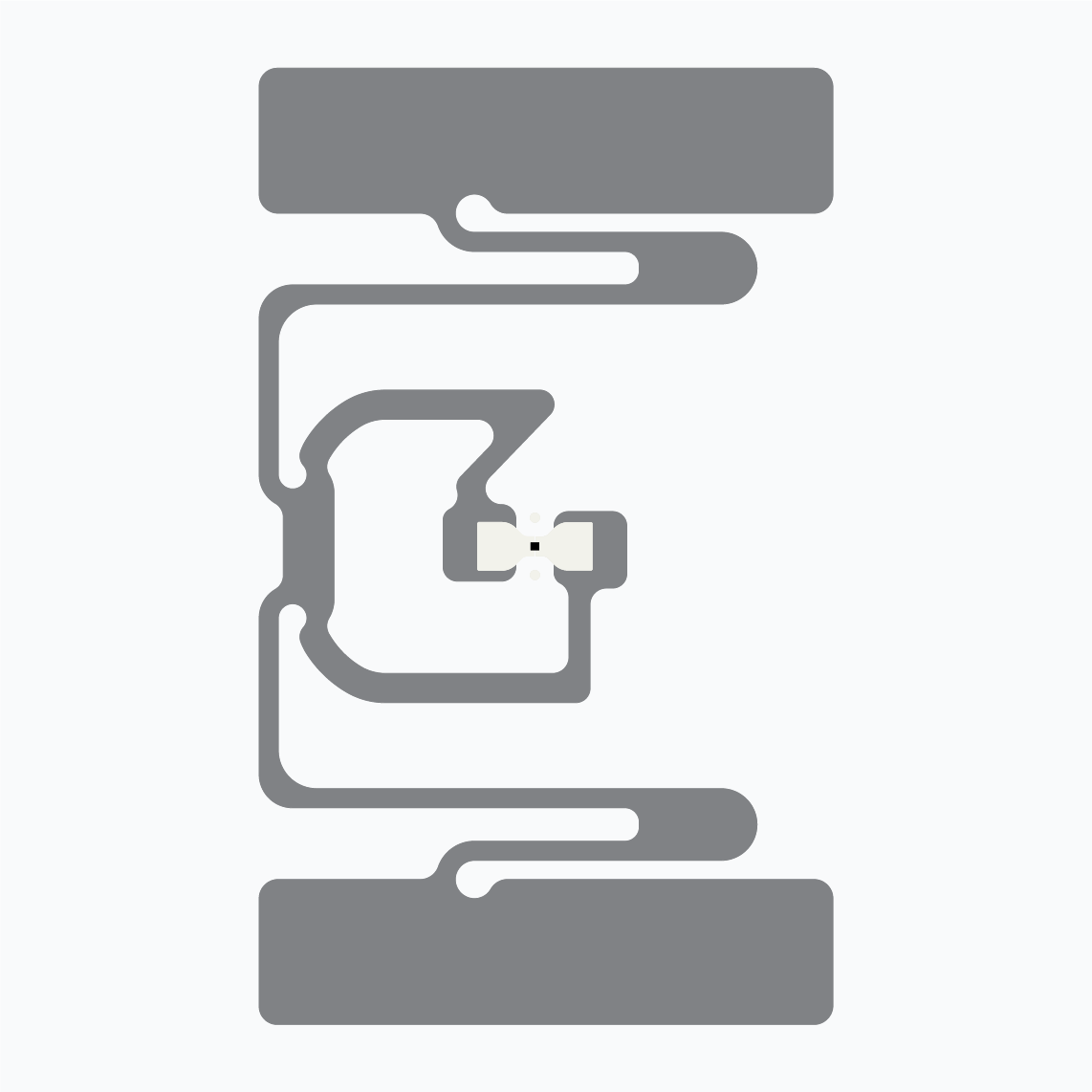

AD-383u7 NEL

  • Chip: NXP UCODE 7
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 50 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    34 x 54 mm / 1.34 x 2.13 in
  • EPC memory: 128 bits
  • TID memory: 96-Bit Tag IDentifier & 48-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF600459 / IL-605772
    Wet inlay RF600460 / IL-607767

UHF RFID Inlay: AD-384r6

AD-384r6

  • Chip: Impinj Monza R6
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
    57 x 38 mm / 2.25 x 1.50 in
  • EPC memory: 96 bits
  • TID memory: 96-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF600872 / IL-603786
    Wet inlay RF600873 / IL-603787
    Label / sticker RF100411 / IL-603788
UHF RFID Inlay: AD-384r6-P

AD-384r6-P

  • Chip: Impinj Monza R6-P
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
  • EPC memory: 128 bits
  • TID memory: 48-Bit
  • ARC specification: -
  • Product code:
    Dry inaly RF600928 / IL-607755
    Wet inlay RF600929 / IL-604492
    Label / sticker RF100416 / IL-604402
UHF RFID Inlay: AD-385u8 WEL

AD-385u8 WEL

  • Chip: NXP UCODE 8
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
  • EPC memory: 128 bits
  • TID memory: 96-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF601086 / IL-603789
    Wet inlay RF601087 / IL-603790
    Label / sticker RF100465 / IL-603791
UHF RFID Inlay: AD-385u8 NEL

AD-385u8 NEL

  • Chip: NXP UCODE 8
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 50 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    34 x 54 mm / 1.34 x 2.13 in
  • EPC memory: 128 bits
  • TID memory: 96-Bit Tag IDentifier & 48-Bit
  • ARC specification: -
  • Product code:
    Wet inlay RF601408
    Wet inlay RF100658
UHF RFID Inlay: AD-386 M750

AD-386 M750

  • Chip: Impinj M750
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
  • EPC memory: 96 bits
  • TID memory: 96-Bit Tag Identifier & 48-Bit
  • ARC specification: F, I, L, Q, R, W2,  W5, W6, Y2
  • Product code:
    Dry inlay RF601846 / IL-606351
    Wet inlay RF601847 / IL-605314
    Label / sticker RF100822 / IL-605503

UHF RFID Inlay:  AD-387 U9

AD-387 U9 WEL - Paper Inlay

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    54 x 34 mm / 2.13 x 1.34 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, L, Q, R, W2,  W5, W6, Y2
  • Product code:
    Dry inlay RF602178 / IL-604497
    Wet inlay RF602179 / IL-607615
    Label / sticker RF100973 / IL-605494

UHF RFID Inlay:  AD-387 U9 NEL

AD-387 U9 NEL - Paper Inlay

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 50 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    34 x 54 mm / 1.34 x 2.13 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, L, Q, W2, W5, W6, Y2
  • Product code:
    Dry+ inlay RF602460 / IL-605966
    Wet  inlay RF602462 / IL-607540
    Label / sticker RF101126 / IL-607065

UHF RFID Inlay:  AD-387 U9 NEL

AD-387 U9 NEL - PET Inlay

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 50 mm / 1.18 x 1.97 in
  • Die cut dimensions:
    34 x 54 mm / 1.34 x 2.13 in
  • EPC memory: 96 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, L, Q, W2, W5, W6, Y2
  • Product code:
    Dry+ inlay RF602461 / IL-605601
    Wet  inlay RF602463 / IL-606853


UHF RFID Inlay:  AD Force M775

AD Force M775

  • Chip: Impinj M775
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    53 x 33 mm / 2.09 x 1.30 in
  • EPC memory: 128 bit
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, L, Q, R, W2,  W5, W6, Y2
  • Product code:
    Dry+ inlay RF602646NPD
    Wet  inlay RF602647NPD
    Label / sticker RF101234NPD

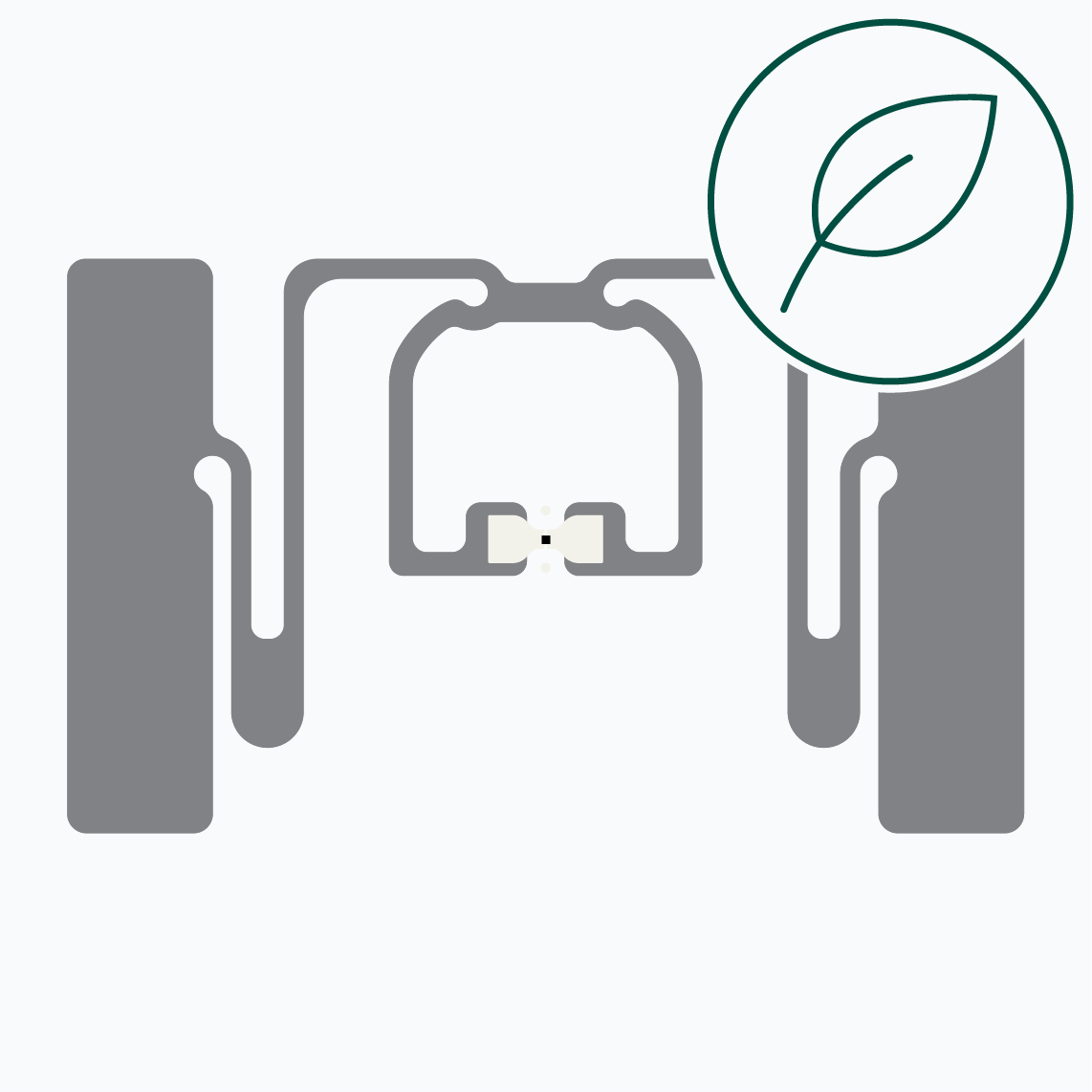

UHF RFID Inlay:  AD Force U9 Pure™

AD Force U9 Pure™

  • Chip: NXP UCode 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    50 x 30 mm / 1.97 x 1.18 in
  • Die cut dimensions:
    50 x 30 mm / 1.97 x 1.18 in
    54 x 34 mm / 2.13 x 1.34 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: F, I, L, Q, R, W2,  W5, W6, Y2
  • Product code:
    Dry inlay  IL-609621
    Wet inlay  IL-609622
    Label/sticker IL-609623
