AD Dazzle (AD-30x, Accessory)  [UHF RFID tag and inlay]

UHF RFID Inlay: AD Dazzle

Ideal for small item-level tagging

Industry segments: Apparel & Fashion, HealthcareBeauty & Personal Care

AD Dazzle inlay product family from Avery Dennison Smartrac are petite, yet powerful solutions optimized for item-level tagging of smaller sized products like fashion and jewelry accessories, beauty and cosmetics products, as well as healthcare and pharmaceutical items.The inlays offer excellent performance and superior close-coupling features.

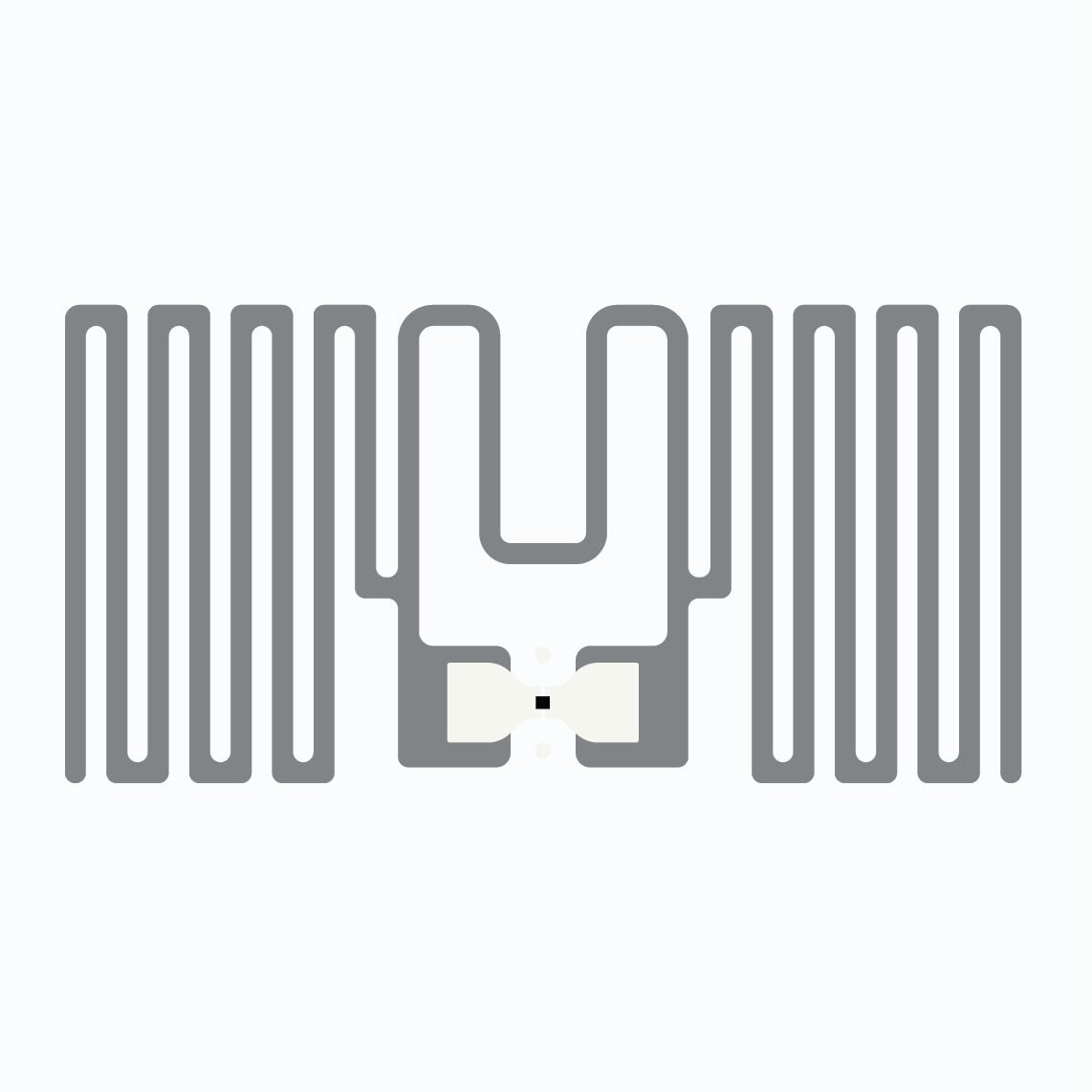

All inlays within the AD Dazzle family share a 30 x 15mm antenna that is a global design operating satisfactorily in both FCC and ETSI frequency bands with maximum performance at 902-928 MHz (FCC). The design is available with several IC options: Impinj Monza R6, Monza R6-P, M730 and M750, as well as NXP UCODE 9.

Like all RFID products from Avery Dennison Smartrac, AD Dazzle inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-301r6

AD-301r6 WEL

  • Chip: Impinj Monza R6
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 96 bits
  • TID memory: 48-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF600925 / IL-604419
    Wet inlay RF600900 / IL-603715
    Label/sticker RF100388 / IL-606826
UHF RFID Inlay: AD-301r6 NEL

AD-301r6 NEL

  • Chip: Impinj Monza R6
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    15 x 30 mm / 0.6 x 1.2 in
  • Die cut dimensions:
    18 x 33 mm / 0.70 x 1.30 in
  • EPC memory: 96 bits
  • TID memory: 48-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF601336 / IL-603756
    Wet inlay RF601338 / IL-603757
    Label/sticker RF100628 / IL-606806
UHF RFID Inlay: AD-301r6 -P

AD-301r6-P WEL

  • Chip: Impinj Monza R6-P
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    18 x 33 mm / 0.70 x 1.30 in
  • EPC memory: 128 bits
  • TID memory: 48-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF600927
    Wet inlay RF600901
    Label/sticker RF100410
UHF RFID Inlay:  AD-301r6-P NEL

AD-301r6-P NEL

  • Chip: Impinj Monza R6-P
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    15 x 30 mm / 0.6 x 1.2 in
  • Die cut dimensions:
    18 x 33 mm / 0.70 x 1.30 in
  • EPC memory: 128 bits
  • TID memory: 48-Bit
  • ARC specification: -
  • Product code:
    Dry inlay RF601337
    Wet inlay RF601339
    Label/sticker RF100629

UHF RFID Inlay:  AD-302 M730

AD-302 M730

  • Chip: Impinj M730
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.709 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: Q
  • Product code:
    Dry+ inlay RF602379 / IL-606389
    Wet inlay RF602380 / IL-606183
    Label/sticker RF101084 / IL-605225
UHF RFID Inlay:  Accessory, Impinj Monza R6

AD Accessory R6

  • Chip: Impinj Monza R6
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Dry inlay 3005251 / IL-602917
    Wet inlay 3005252 / IL-602918
    Label/sticker 3005253 / IL-602919
UHF RFID Inlay: Impinj Monza R6-P

AD Accessory R6-P

  • Chip: Impinj Monza R6-P
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Dry inlay 3006256 / IL-603040
    Wet inlay 3006267 / IL-603043
    Label/sticker 3006268 / IL-603044
UHF RFID Inlay: Accessory M730

AD Accessory M730

  • Chip: Impinj M730
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: Q
  • Product code:
    Dry inlay 3008300 / IL-604218
    Wet inlay 3008304 / IL-600040
    Label/sticker 3008305 / IL-604223
UHF RFID Inlay:  Accessory, NXP UCODE 8

AD Accessory U8

  • Chip: NXP UCODE 8
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 128 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: -
  • Product code:
    Wet inlay 3007174 / IL-603472
    Label/sticker 3007175 / IL-603473

UHF RFID Inlay:  Accessory, NXP UCODE 9

AD Accessory U9

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: Q
  • Product code:
    Dry inlay 3008603 / IL-604459
    Wet inlay 3008604 / IL-604460
    Label/sticker 3008606 / IL-604461
UHF RFID Inlay:  Dazzle, NXP UCODE 9

AD Dazzle U9

  • Chip: NXP UCODE 9
  • Frequency band:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    30 x 15 mm / 1.20 x 0.60 in
  • Die cut dimensions:
    33 x 18 mm / 1.30 x 0.70 in
  • EPC memory: 96 bits
  • TID memory: 96-bit / 48-bit unique serial number
  • ARC specification: Q
  • Product code:
    Dry+ inlay IL-609815
    Wet inlay IL-609816
    Label/sticker IL-609817
